1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
Specifications
Brand Name :
HC
Model Number :
HC40-165-990
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Width :
1220mm
Material Thickness :
0.3-0.6mm
Roller Stations :
18Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
4m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
1220 Width Panel Glazed Tile Roll Forming Machine For Steel Construction
Product Overview

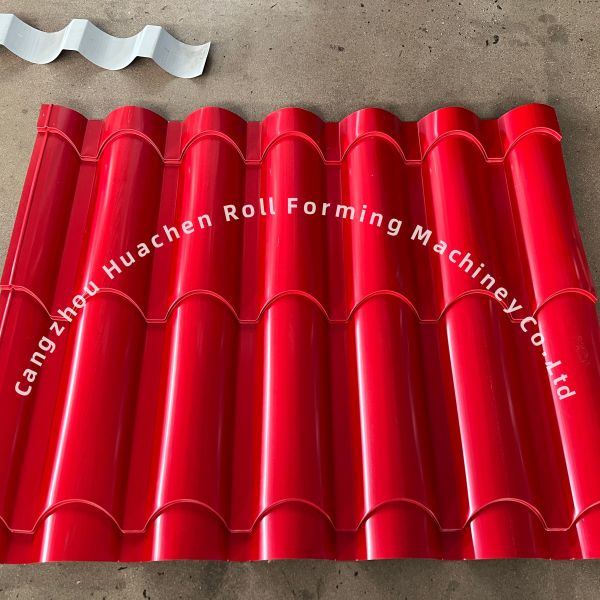

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Production Process
  • Decoiling the sheet
  • Sheet guiding
  • Roll forming
  • Measure length
  • Cutting the panel
  • Panels to the supporter
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 18 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 4 m/min
Total Power 5.5 + 5.5 KW
Voltage 380V 50Hz 3 phases
Component Details
5T Manual Decoiler
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

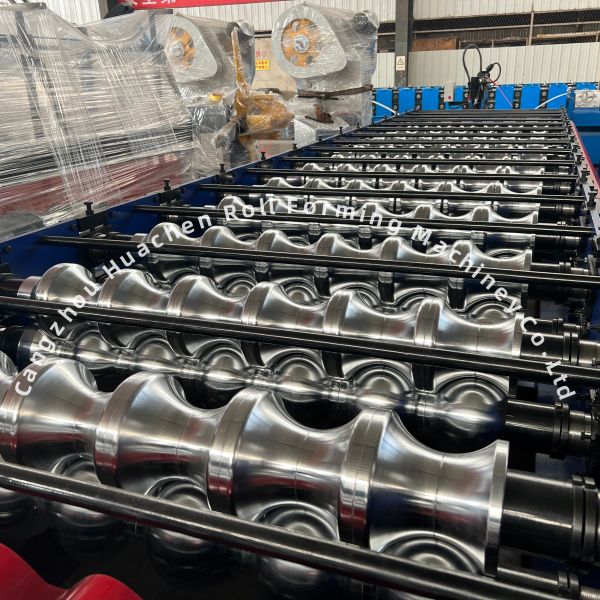

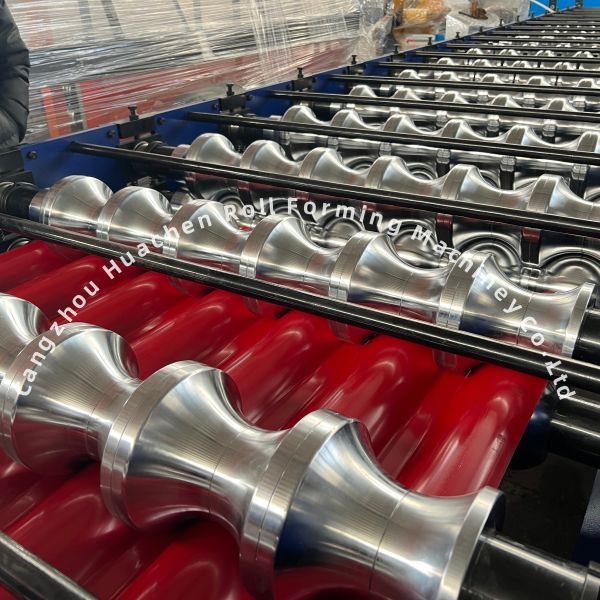

Shaft & Roller
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

Hydraulic Pump Station
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

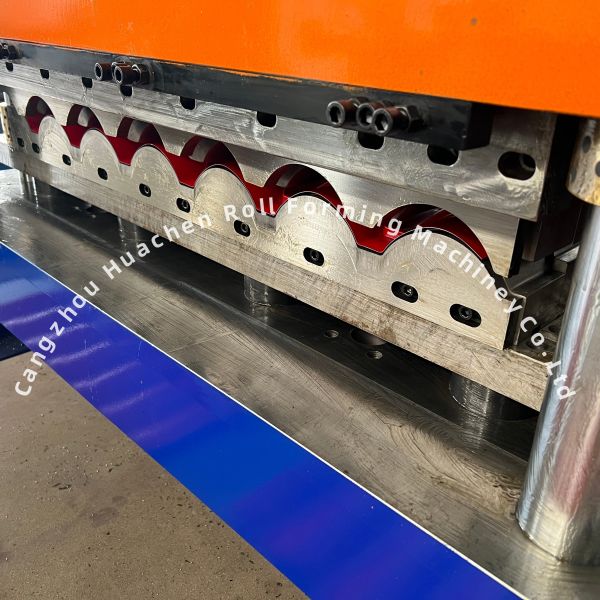

Pressing Section & Cutter
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction 1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.

Output Table
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included
Component Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Additional Machine Images
1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction 1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction 1220mm Width Panel Glazed Tile Roll Forming Machine with 18 Stations Roller and Chain Drive for Steel Construction
Frequently Asked Questions
Can you make the machine according to my design or photo type?

Yes. We have an experienced team to work out the most suitable design and production plan for the machine.

How can we be assured that you will deliver us quality machine with spare parts?

1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.

What policy of your guarantee?

Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years, you need to buy by factory cost.
