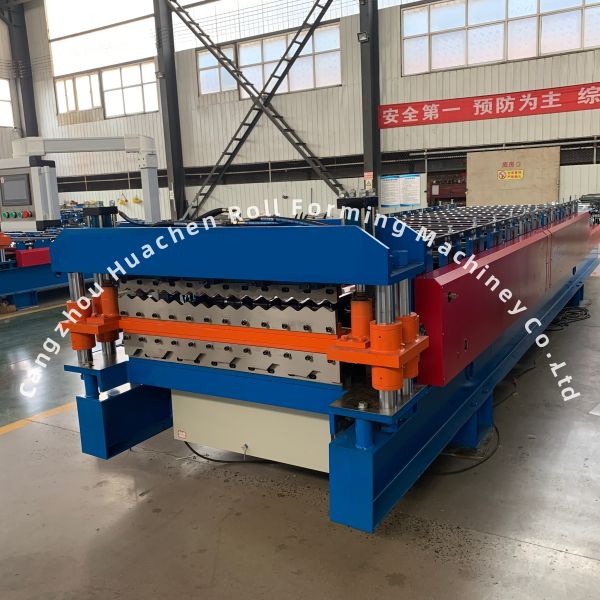

Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Specifications
Brand Name :
HC
Model Number :
HC18-32-1200-1220
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
Upper:1200mm; Down:1220mm
Roller Stations :
Upper:12stations ; Down:15stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
φ70mm
Cutter Material :
Cr12
Drive Type :
Chain Drive
Speed :
15m/min
Total Power :
5.5+5.5kw
Voltage :
380V 50Hz 3phases(Customizable)
Description
Professional Double Layer Roll Forming Machine / 380V Wall Panel Roll Forming Machine
Packaging & Delivery
Packaging Detail

1. Tighten to container with steel wire rope and welded machine with container by angel iron

2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)

3. PLC control system and motor pump are packed with water proof paper coverage
Delivery Detail

15-20 days after getting advance payment
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width Upper: 1200mm; Down: 1220mm
Roller Stations Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
Component Description
5T Manual Decoiler
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

This part is used to support coil and make the coil in a rotary way.

  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact

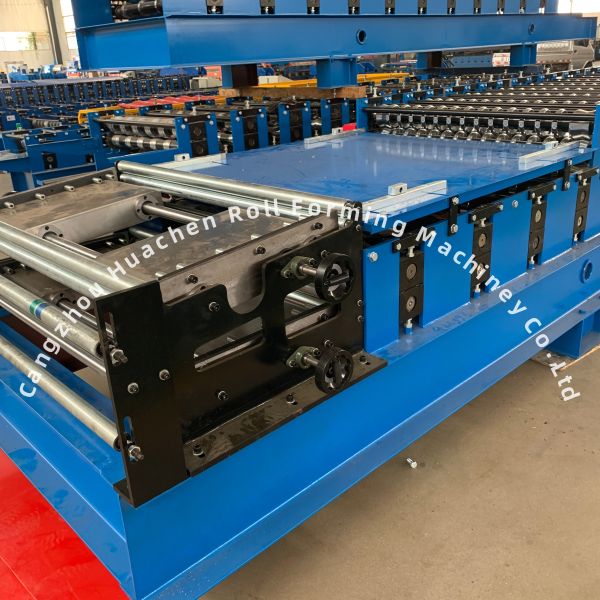

Feeding Table & Pre-Cutter
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

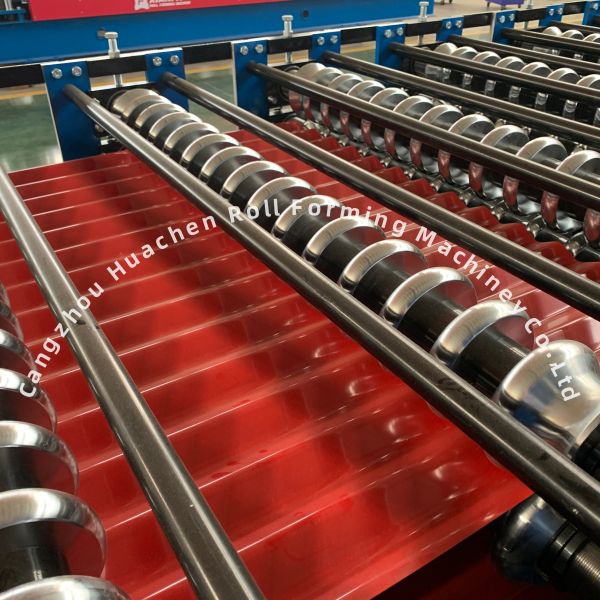

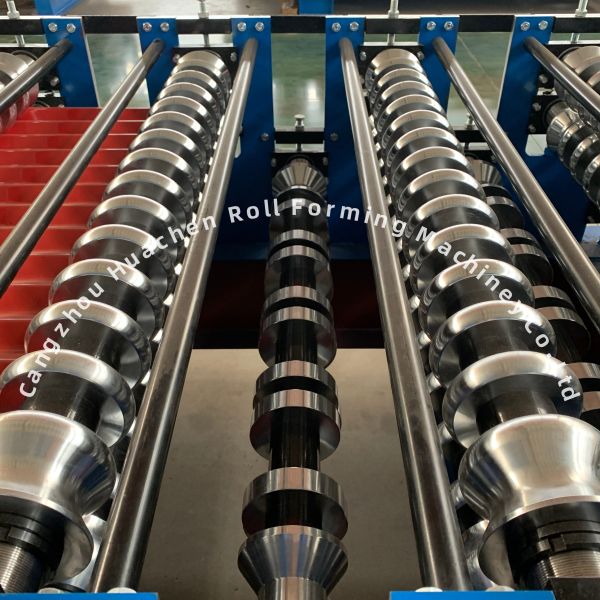

Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade
Touch Screen Control Cabinet
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate.

Electrical Component Brands:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi

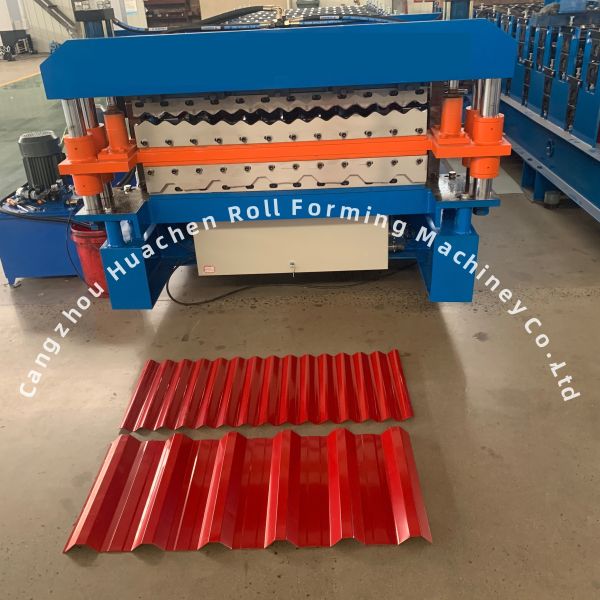

Pressing Section & Cutter
Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table

This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.
Spare Parts
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Process Flow

Customized Double Layer Roof Tile Roll Forming Machine Process flow:

Decoiler → Feeding & Guiding → Roll forming → Hydraulic pressing → Hydraulic Cutting → Product to run out table

Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels
Additional Information
  • Material: Color steel sheets
  • Machine speed: 8-12m/min
  • 18 years manufacturing experience
  • CE & ISO certified
  • Professional roll forming machine manufacturers
