1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Specifications
Place of Origin :
Botou Hebei China
Brand Name :
HC
Certification :
ISO
Model Number :
HC137
MOQ :
1set
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
Delivery Time :
30days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Usage :
floor deck
thickness :
1.2mm
weight :
28T
warranty :
1 year
Description

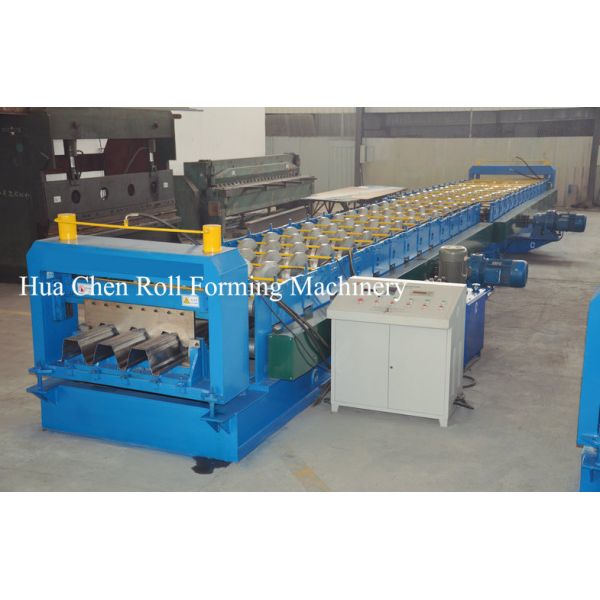

Metal Deck Roll Forming Machine
Product Overview

Floor Deck Roof Panel Roll Forming Machine

We have over 10 years of experience manufacturing high-standard roll forming machines for export markets. Our team includes mature foreign trade professionals, senior engineers, and experienced workers to ensure customer satisfaction. Our machines are operating in over 90 countries and regions worldwide, and we maintain strong business relationships with all clients. We offer one year free warranty and lifetime free service for all machines.

Certifications
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Machine Components & Specifications
5T Manual Decoiler

Dimensions: 1700*1000*800

Width: 1250mm

Inner Diameter: 450-508mm

Capacity: 5T

Quality: 1 set

We also offer hydraulic type for 5T to 10T capacity.

 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Feeding Device

Width: 1250 mm Adjustable

Ensures product alignment, parallelism, and uniformity. Please refer to equipment instructions for locate angle iron functionality.

 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production

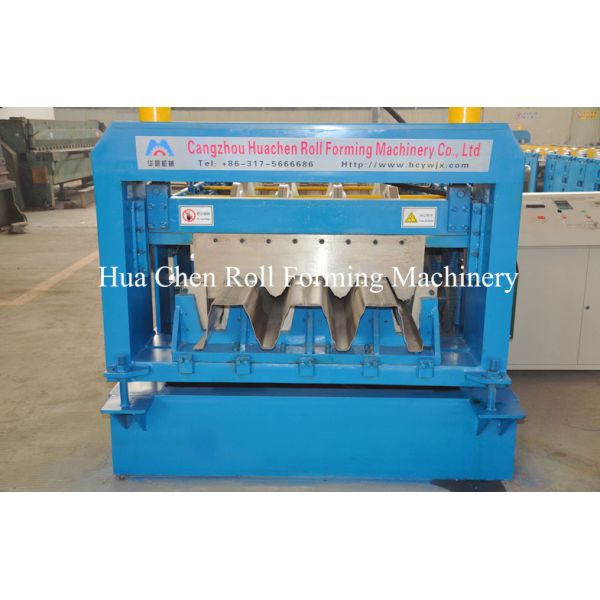

Main Roll Former

Our experienced workers design rollers according to customized profile drawings. Features welded steel frame structure, AC frequency conversion motor reducer drive, and chain transmission for robust performance and high-quality finished products.
Hydraulic Pump Station

Semi-Automatic PET Bottle Blowing Machine suitable for producing PET plastic containers and bottles in all shapes.
PLC Control System

PLC Brand: EURA or Customized

Language: English and Chinese

Control Panel: Button or Touch Screen

Frequency Converter: EURA or customized

HMI: Easy to operate interface

 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Hydraulic Cutting System

Forming and Cutting: Cuts sheet after roll forming to required length

Material of Blade: Cr12, 58-62 HRC hardness

Hydraulic Power: 4KW

Length Measuring: Automatic encoder length measuring

Tolerance of Length: +/- 1.5mm for each piece

 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Output Table

Size: 1500*1300*700mm

Quantity: 2 sets

We also offer Auto stacker for automatic production lines.
Customer Service
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production 1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Service
  • Machine installation and operation training
  • Overseas engineer service availability
Packing & Delivery
1.2mm Thickness 28T Weight Metal Deck Roll Forming Machine with 1 Year Warranty for Floor Deck Production

Size: 11500 (L) * 1500 (W) * 1510 (H)

Weight: 28T

1. Main Roll Forming Machine and un-coiler use nude packing (water-proof plastic available upon request)

2. PLC control system and motor pump packed with water proof paper, spare parts in carton boxes

3. One set of machine requires one 40' container for shipping
