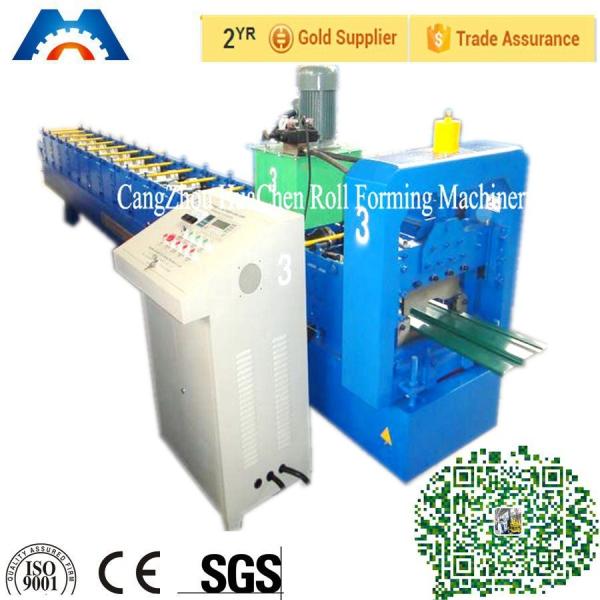

PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
PLC Controlled Spandrel Color Coated Wall Panel Roll Forming Machine with 0.3-0.6mm Thickness and 15 Rows Rollers
Specifications
Place of Origin :
Botou Hebei China
Brand Name :
HC
Certification :
CE
Model Number :
HC12X125
MOQ :
1set
Packaging Details :
Main machine is nude, the computer control box is packed by carton box.
Delivery Time :
30days
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Description

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 200mm

3. Rollers: 15 rows

4. Dimensions: 7.4*1.25*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate: 0.3-0.6mm

8. Voltage: 220V 60Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 46#

11. Processing precision: Within 1.00mm

12. Control system: PLC control


Description:

Wall Panel Roll Forming Machine Main parameter

No.

Main parameter of Wall Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

200mm

3

Rollers

15 rows

4

Dimensions

7400*1350*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

10-15m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

46#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting


Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.


Competitive Advantage

1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
