M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners
Specifications
Payment Terms :
T/T
Bolt Size :
M130
Packaging Details :
Standard packaging is determined by your requirements and the actual dimensions of the quantity
Cylinder Retract :
auto retract
Weight (Kg) :
≈130
Supply Ability :
Standard supply quantity 1–50 units, standard delivery lead time 15-30 working days
Max. Load (Kn) :
7068
Delivery Time :
8-10 work days
Maximum Stroke (mm) :
10
Place of Origin :
CHINA
Model No. :
TSR10
Description

Hydraulic Bolt Tensioner for Maintenance and Assembly Tasks

TSR Series Topside Bolt Tensioners

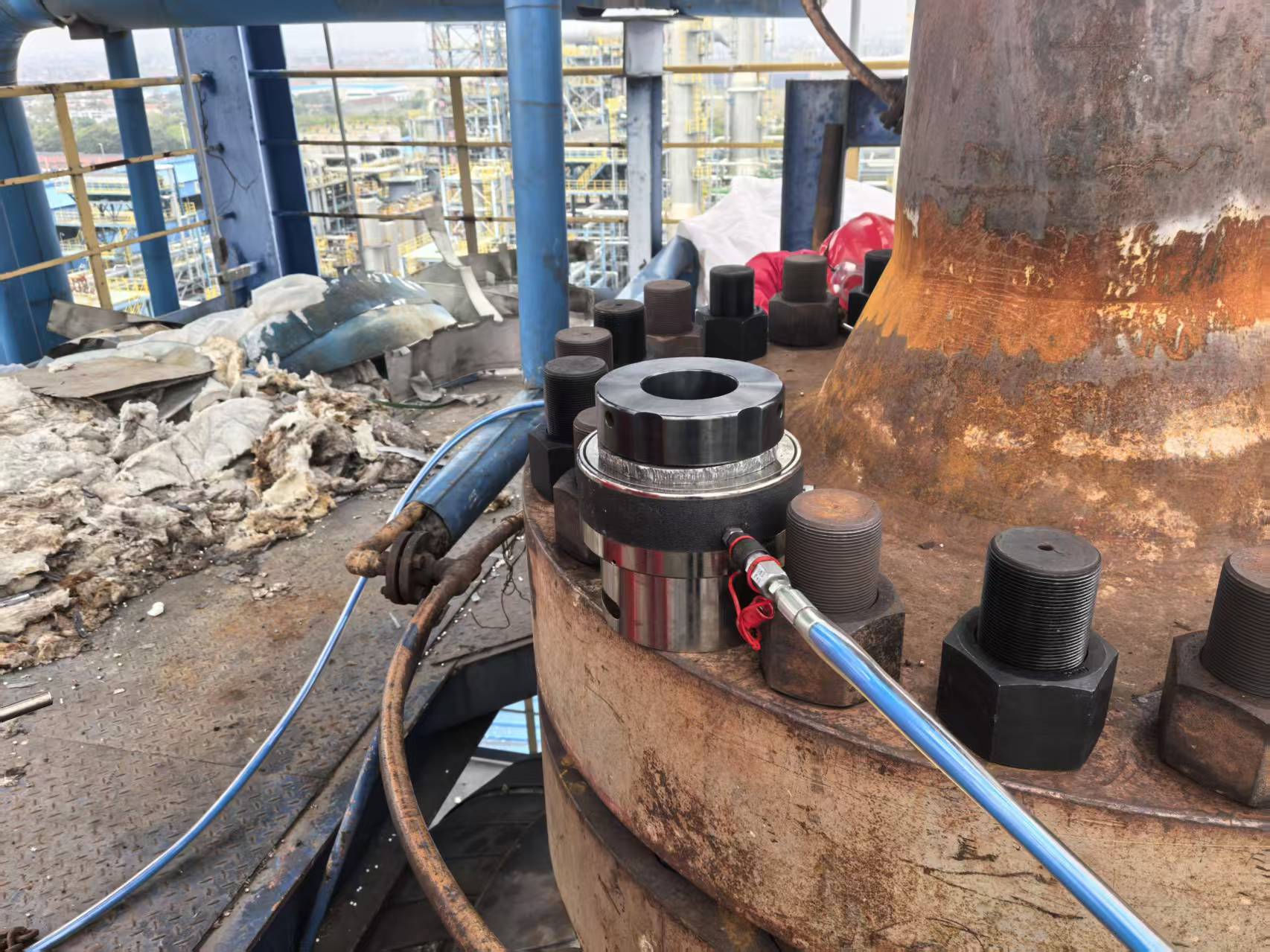

The TSR Series Topside Bolt Tensioners provide rapid, high-precision flange sealing. Engineered for heavy-duty industrial applications, these tools utilize twin-port hydraulic synchronization to ensure uniform load distribution across critical connections in oil rigs, power plants, and large-scale construction projects.

M130 Hydraulic Bolt Tensioning Equipment 7068Kn Hydraulic Tensioners

Key Advantages
  • Rapid Deployment: Quick-change base allows for tool-free attachment.
  • High Performance: Patented seal technology supports pressure ratings up to 1500 bar.
  • Maintenance Efficient: Self-retracting design minimizes downtime and service requirements.
  • Versatile Application: Ideal for critical industrial bolting and flange sealing.
Product Attributes
FOB Unit Piece
MOQ Not specified
FOB Price 0
Packaging Not specified
Technical Specifications
Model Bolt Size Max Load (Kn) Weight (Kg)
TSR0 3/4" / M20 160 ≈2.5
TSR1 1" / M24 280 ≈3.7
TSR2 1" / M24 450 ≈5.5
TSR3 1-1/4" / M33 660 ≈7.5
TSR4 1-1/2" / M39 1000 ≈11.5
TSR5 2" / M52 1500 ≈18.5
TSR6 2-3/4" / M72 2500 ≈33
TSR7 3-1/2" / M90 3200 ≈47
TSR8 4" / M105 4100 ≈63.5
TSR9 M115 4857 ≈74
TSR10 M130 7068 ≈130
