C Purlin Roll Forming Machine Steel Purlin Machine
C Purlin Roll Forming Machine Steel Purlin Machine
C Purlin Roll Forming Machine Steel Purlin Machine
C Purlin Roll Forming Machine Steel Purlin Machine
C Purlin Roll Forming Machine Steel Purlin Machine
C Purlin Roll Forming Machine Steel Purlin Machine
Specifications
Brand Name :
Thronch
Place of Origin :
China
MOQ :
1set
Price :
100000~300000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 units per year
Delivery Time :
Arrange according to the order details
Packaging Details :
Container
Key Selling Points :
Long Service Life
Frequency :
50Hz/60Hz
Power Supply :
220V
Horizontal Deviation :
+- 0.5 Mm
Material :
Cold Rolled Steel
Material Compatibility :
Steel, Aluminum, Copper, Etc.
Control System :
PLC

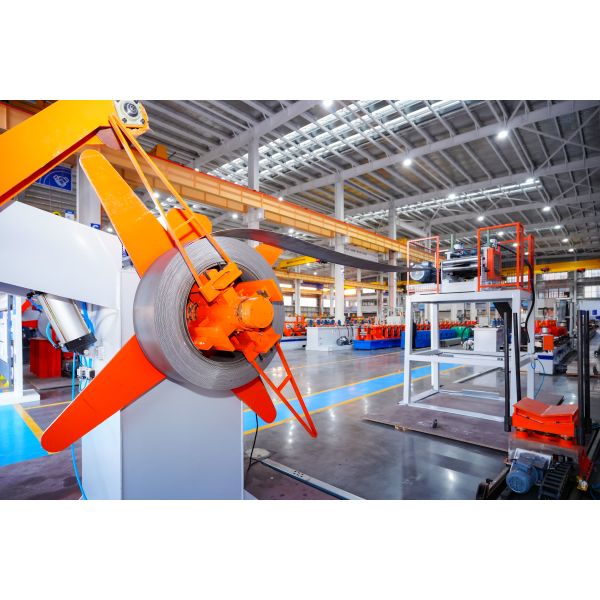

Decoilertype :
Hydraulic Decoiler
Controlsystem :
PLC Control System
Power Source :
Electric
Framematerial :
High Quality Steel
Application :
Manufacturing C-shaped steel purlins for construction
Description

C Purlin Roll Forming Machine Steel Purlin Machine


Tonghe C/Z Purlin Roll Forming Machine – Overview

As a key product of Tonghe Intelligent Equipment Technology Co., Ltd., this machine is designed for efficient production of C and Z purlins used in steel structure buildings.

Main Features:

  • Two in One: One machine produces both C and Z profiles with simple adjustment – saves cost and space.

  • High Precision: PLC and servo control ensure accurate cutting and punching.

  • Durable Structure: Rollers made of high-strength bearing steel, heat-treated and chrome-plated for long life.

  • Customizable: Profile size (web 80–300mm) and punching patterns can be tailored to your needs. Options from manual to fully automatic lines.

  • Key Specs: Material thickness up to 3.0mm, forming speed up to 20 m/min.

  • Certified: CE and ISO9001 approved.

Machines Regular Technical Parameter (Customization is available)

product model

xy-300

effective weld length

≤300mm;

effective shear length

300mm;

back and front gas protection of welding

positive and negative side protection device

applicable workpiece thickness

1.5-2.5mm

welding speed range

500～1500mm/min
Work mode

Hydraulic shearing, hydraulic clamping, scrap ring cannot be cut off

walking accuracy

0.10mm

hydraulic shear

5-15Mpa


C Purlin Roll Forming Machine Steel Purlin Machine
