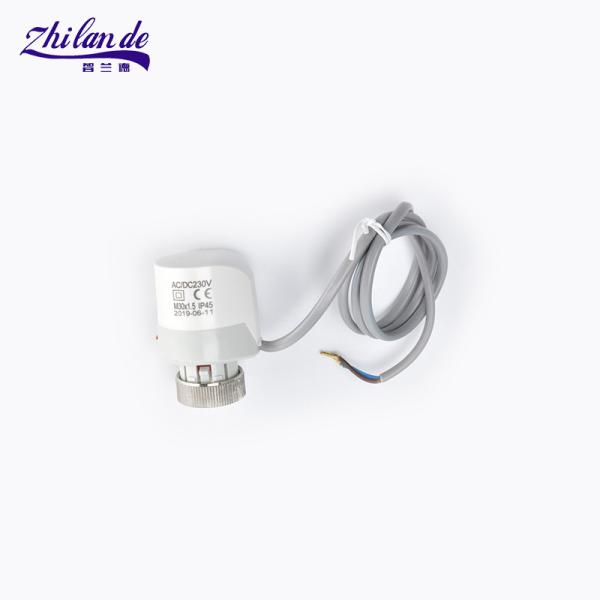

230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
Specifications
Place of Origin :
China
Brand Name :
zhilande
Model Number :
A30
Packaging Details :
Carton box
Proportional thermal actuators electric thermo wax valve and actuator
MOQ :
1000 pieces
Price :
CN¥33.27/pieces
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
Anti-flammable PC +ABS
Project Solution Capability :
graphic design, 3D model design
Application :
Hotel
Design Style :
Rustic
Type :
Floor Heating Parts
Floor Heating Part Type :
Floor Heating Thermostats
connection size :
M30*1.5MM
simple thrust :
110N
shell material :
PC+GF10
Voltage :
230V/AC50/60Hz
ambient temperature :
5-50℃
power consumption :
2w
Description

Proportional thermal actuators electric thermo wax valve and actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
Running time
3-5miniture
Valve interface
Cap nut M30×1.5mm
Mounting position
Vertical position to 90°declined
Cable length
0.9M length (2-core)
Protective housing
IP54

FEATURE:

1. Easy to install.
2.Generally used in water underfloor heating system. It can be used to control manifolds, water valves, and so on.
3.Control the open/close of hot water pipe in the heating system so as to control indoor temperature.
The electrothermal actuator is mainly used in the floor heating system to control the closing and opening of the pipeline.
It is applied to the electric drive department of the electric actuator of the manifold valve, the small valve and the dynamic
balance valve.
Work runs without noise.
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
230V Proportional Thermal Actuator Electric Thermo Wax Valve And Actuator
