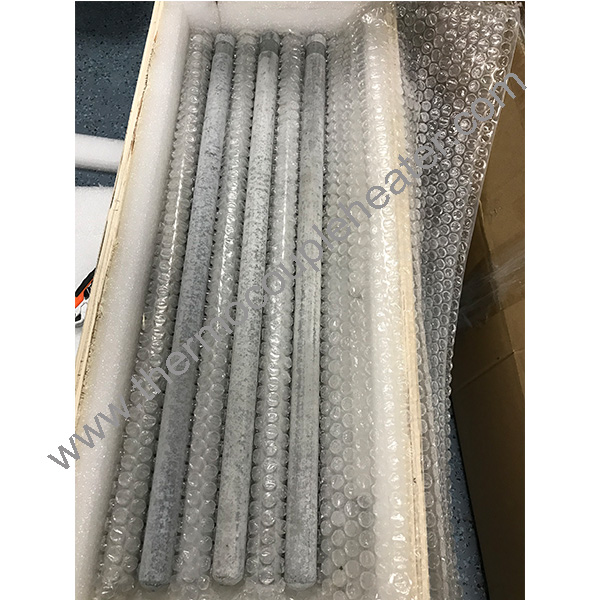

Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
Specifications
Brand Name :
GME
Model Number :
Mgo rod
Certification :
CE
Place of Origin :
China
MOQ :
500pcs
Price :
USD$0.002/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
30days
Packaging Details :
paper carton, wooden carton
Material :
Magnesium oxide ceramic
Color :
White / Ivory
Bores :
Single,two,four or multi bores
Shape :
Round, square, rectangular, oval
Usage :
Works as refractory material
Description

Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes

Description:

Nitride-bonded silicon carbide tube

Silicon carbide products are high-grade refractory materials produced by sic as the main raw material, with various binders and high temperature firing. It has good thermal conductivity, high temperature strength, wear resistance, strong corrosion resistance and good thermal stability. Such outstanding performance. It is widely used in the metallurgical industry, blast furnace belly, open iron tap, electric porcelain, enamel, ceramic kiln, muffle board, shed board, flame board, push board, raft, pillar, glass annealing furnace, etc. , specific products.

Si3N4 bonded SiC as a new type refractory material, is used widely. The applying temperature is 1400 C. It has better thermal stability, thermal shock, which is better than plain refractory material and recrystallized SiC. It also has antioxidation,high corrosion resistant, wear-resistantance, high bending strength. It can resist corrosion and scouring, be no polluted and fast heat conduction in molten metal such as AL, Pb, Zn, Cu ect.

Features
1. High temperature;
2. High thermal conductivity and shock resistance;
3. High mechanical strength and abrasion resistance;
4. Excellent energy efficiency and corrosion resistance.
Index
NSIC
Bulk Density(g/cm3)
2.75-2.82
Porosity(%)
10-12
Compression Strength(MPa)
600-700
Bending Strength(MPa)
160-180
Young’s Modulus(GPa)
220-260
Thermal Conductivity(W/MK)
15(1200℃)
Thermal Expansion(20-1000℃) 10-6k-1
5.0
Max. Working Temperature(℃)
1500
Si3N4(%)
20-40
A-SIC(%)
60-80

Silicon Nitride Si3N4 Bonded Silicon Carbide SiC Thermocouple Protection Tubes
