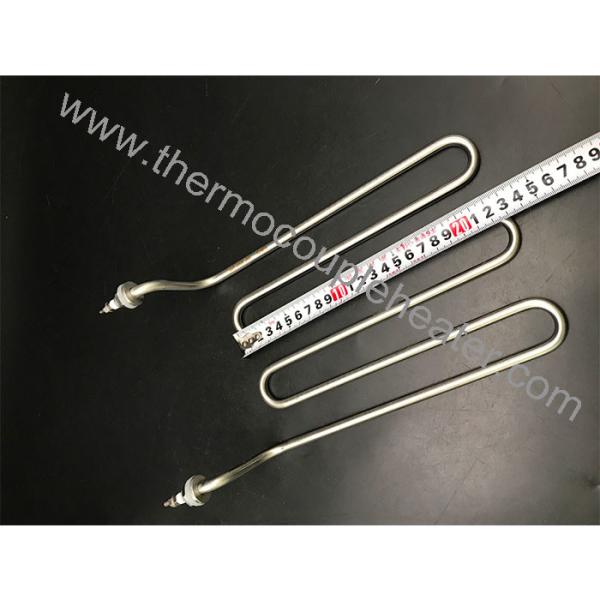

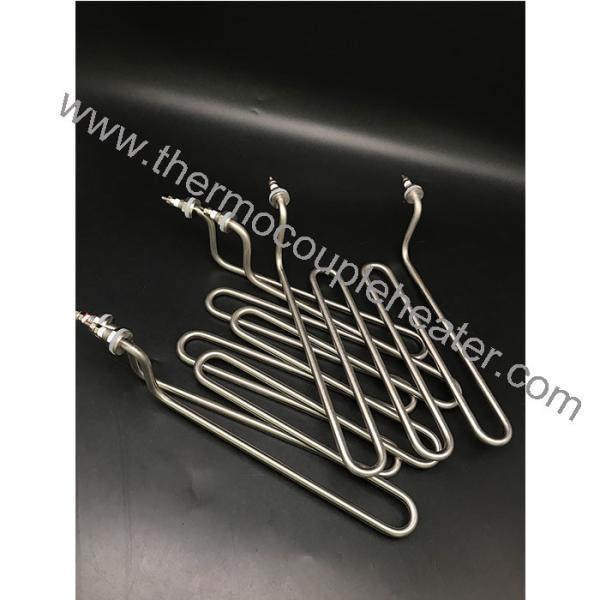

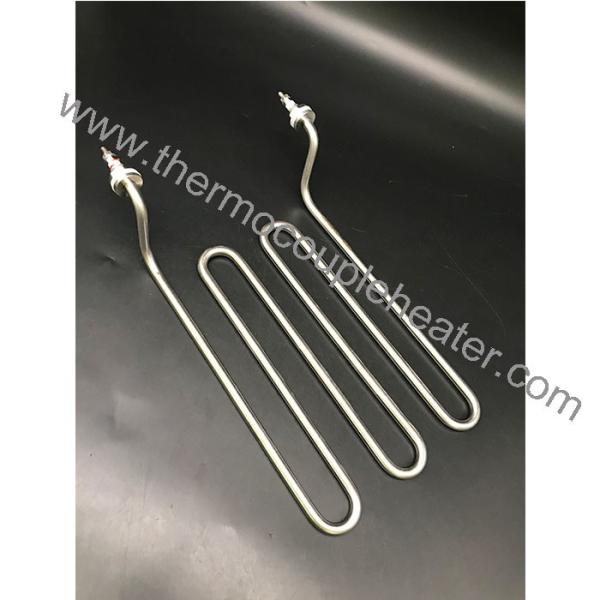

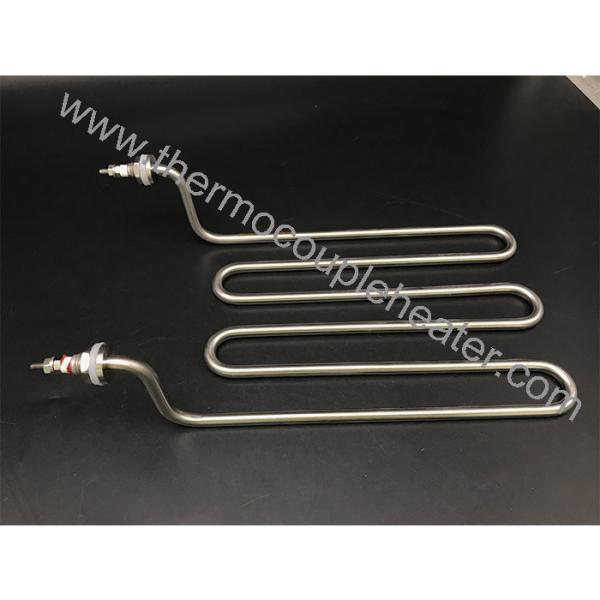

Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12-480V
Sheath material :
Stainless Steel or Nickel
Style :
K, J,
Lead wire :
copper, , fiberglass silicon
Insulation Material :
MgO
Heating Element :
Nichrome Resistance
Screw Threads :
Available
Flange Washer :
Available
Connection :
Screw fitting
Description

Customized Supplied Electric M Type Heating Element Stainless Steel Heater Pipe AC220V 380V Tubular Heater Element


Description:

*Tubular heating element are custom designed in a various shapes to as client's requirements for direct immersion in liquids suchas water, oils, solvents and process solutions, molten materials as well as air and gases.
*Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.
*Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. .
Material
stainless steel 304/321/316/310S,Incoloy 800 840
Tube Diameter
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc
Shape
Round, straight, U type, W type , double W type and so on
Voltage
380V 230V 220V 240V or customzied
Terminal Styles
Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal

1.Wattage Tolerance: +5%, -10%

2.Resistance tolerance: +10%, -5%
3.Voltages available: 380V,240V, 220V,110V,36V,24V or 12V
4.Operating temp: from 370ºC to 760ºC
5.Length tolerance: ± 1.5mm;
6.Delivery time: 7-14 working days.However, many sizes are kept in stock. Please contact the factory for assistance.
7.Insulation resistance (cold): ≥ 1000 MΩ;
8.Maximum leakage current (cold): ≤ 0.5 mA;

Application:

Tubular heater have the characteristics of simple structure, high mechanical strength, high thermal efficiency, safety and reliability, easy installation, and long service life. Widely used in various devices such as nitrate tanks, oil tanks, fusible metal melting furnaces, air heating furnaces, drying furnaces, drying boxes, hot pressing molds, etc.
