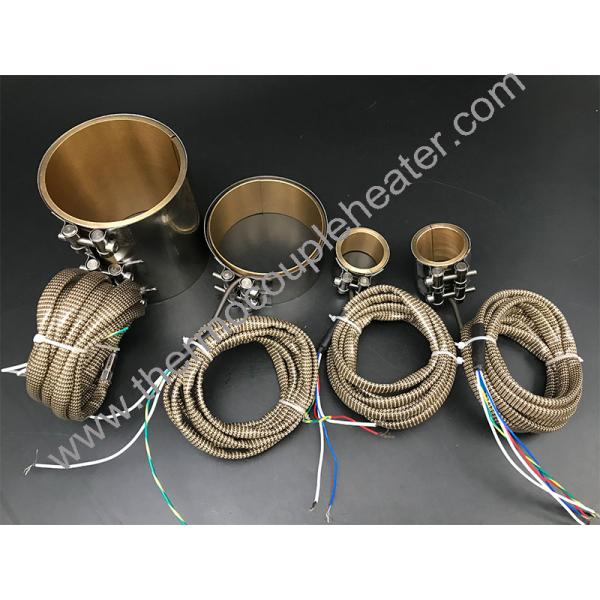

Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, , L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
110-240V / 50-60Hz
Warranty :
one year
power :
195W-690W
Style :
straight or coil
Heating wire material: :
Cr20Ni80
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass or stainless steel
Color :
Copper
Application :
Widely used
Height :
10mm~200mm
Description

inner brass outer stainless steel jacket nozzle spring coil heater with clamp

Description:

Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

Specification:

Product Name
Pressed in Brass Coil Heater
Voltage
12V-480V(customized)
Range of Working Voltage
12V - 440V
Power Range
5W to 2500W
Sheath Material
304SS or 316L
Maximum Sheath Temperature
500℃
Inner Heating Element
NiCr8020
Insulation
High pure Mgo
Tube Color
Sliver or annealed black
I.D Available
16mm -150mm
Heater Height Range
30mm - 300mm
ID Tolerance
+0.03-0.05; -0.00
Coil Style Length
40-200mm (+ 0.5mm)
Lead and Sleeve
Teflon,Fiberglass,Kevlar etc
Built-in Thermocouple
With or without J /K TC(Available)
TC Optional
Type J, K, E and T
TC Tolerance
±10℃
Power Tolerance
+5% and -10%
Power Density
9w/c㎡
Working Life
10,000 hours
Use
Injection molding machine, extruder, medical equipment ect
Certification
CE,ROHS


Application:

1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
