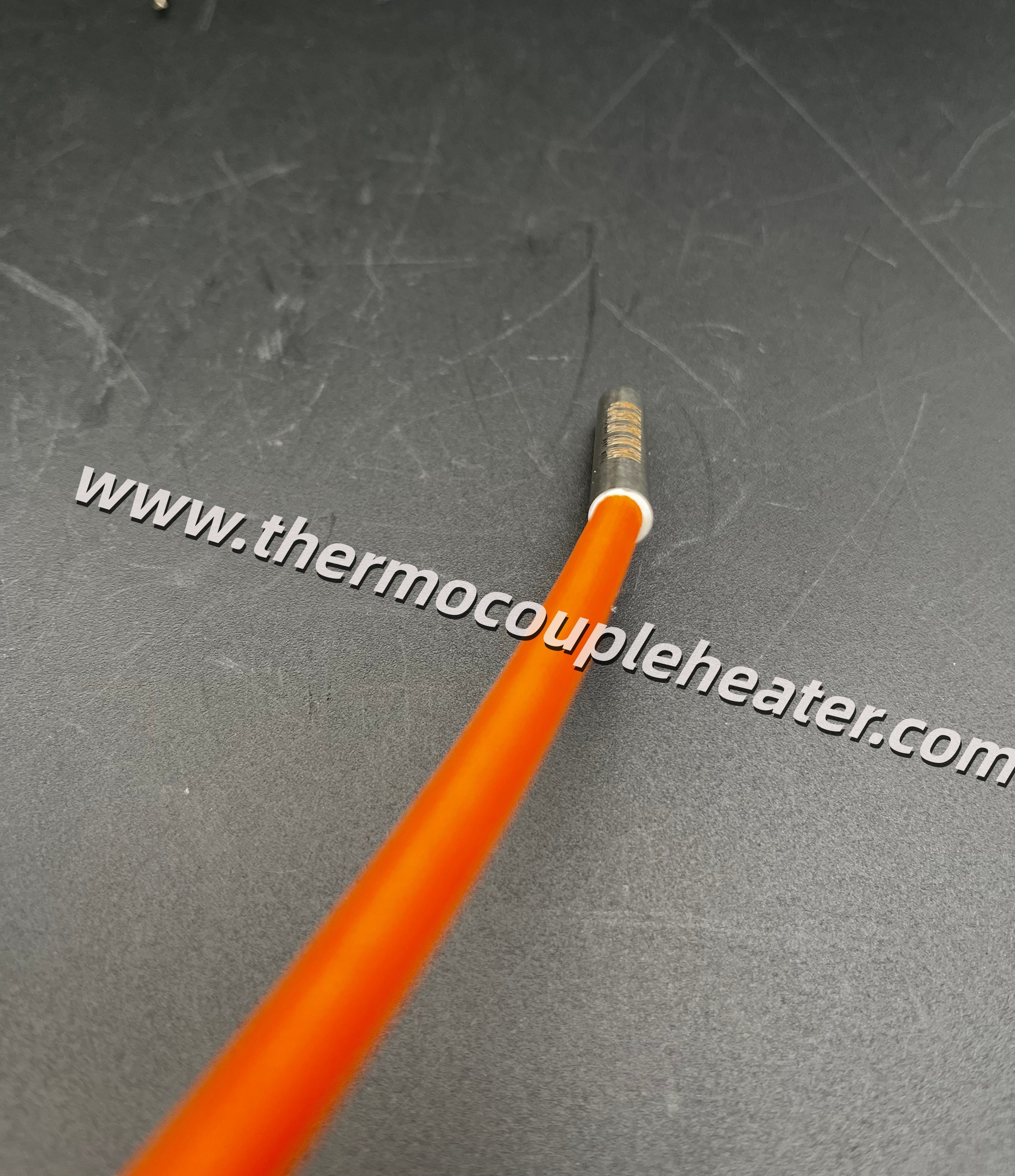

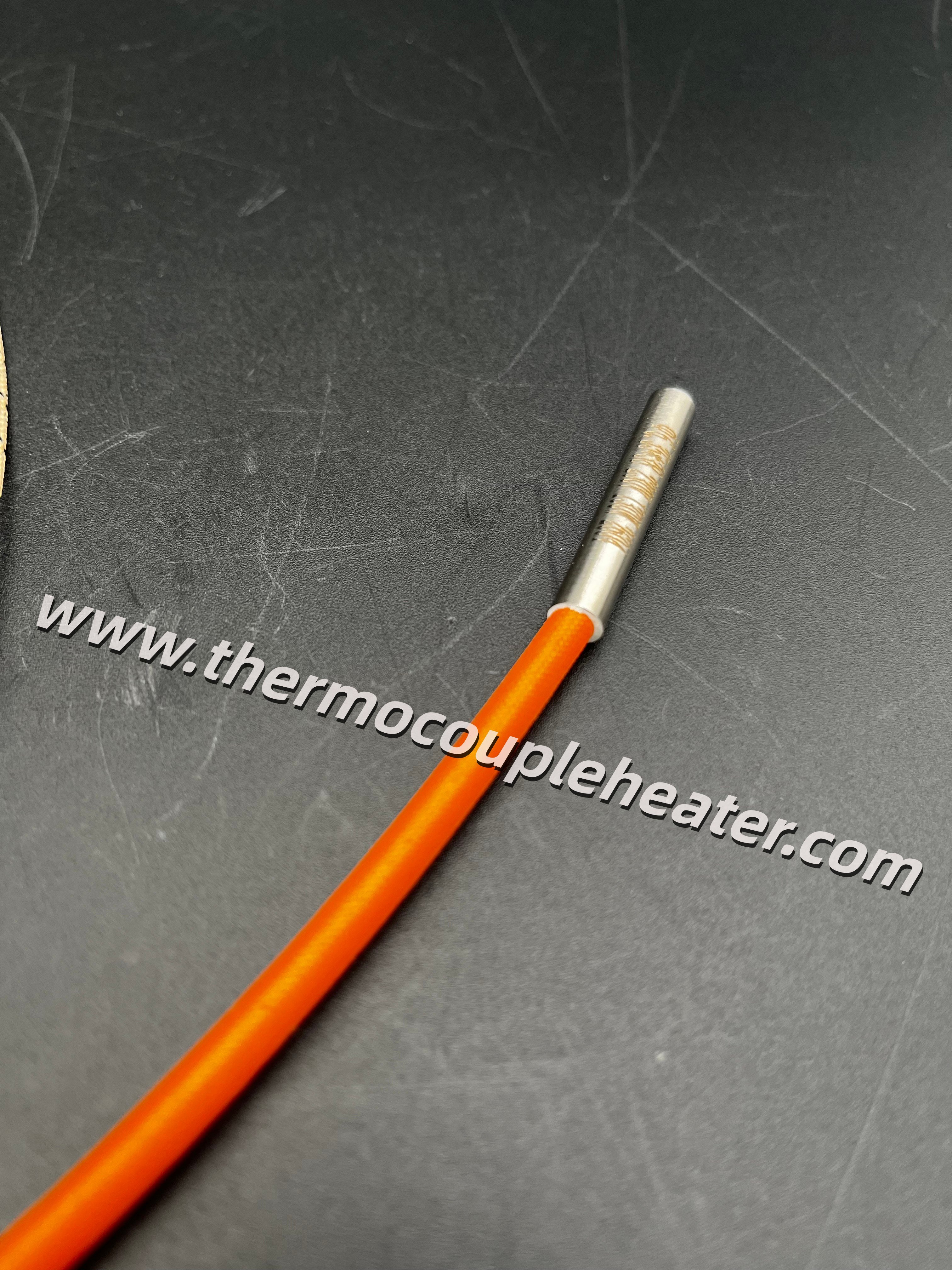

Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Smooth Insertion Cartridge Heater With Crimped Cable And Built-in Thermocouple
Specifications
Place of Origin :
China
Power Density :
5-60W/cm2
Supply Ability :
10000 pcs per month
Max working temperature :
1100℃
Packaging Details :
Exported Case Packing
Delivery Time :
7-15 Working Days
OD range :
2mm-50mm
MOQ :
10 pcs
Sheath material :
Stainless Steel SUS304 / 316 / 310 / Inconel / Incoloy
Brand Name :
GME
Lead Protection :
Flexible SS Hose / SS braided / Fiberglass tube
Payment Terms :
T/T,Paypal
Voltage :
12-480V
Description
Smooth Insertion Cartridge Heater with Crimped Cable and Built-in Thermocouple

Product Overview

High-density cartridge heater integrated with a built-in Type K thermocouple for precise, real-time temperature monitoring. Featuring an internally crimped lead exit design, the fiberglass cable stays completely flush with the heater sheath, enabling full-length, smooth insertion into tight mold bore holes without binding or interference.

Key Features

  • Smooth Mold Insertion: Internally crimped cable design ensures zero outer bulge, allowing seamless, full-depth insertion into mold holes.

  • Integrated Sensing: Built-in Type K thermocouple saves space and eliminates the need for a separate temperature probe.

  • Internal Connection: Thermocouple junction is wired internally inside the sheath for a clean, compact lead exit.

  • Vibration & Strain Relief: Deep-crimped lead entry provides strong mechanical protection against wire pull and flexing damage.

Technical Details

1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
4 Max working temperature 1100℃
5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
6 OD range: 2mm-50mm
7 The range of the Total Length: 25mm----2500mm
8 Maximum power density: 60w/cm²
9 Unheated zone: 10mm at lead end and about 5mm at bottom
10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside

Custom Specifications Available: Whether you need specific imperial/metric diameters, custom wattages, or specialized length configurations, our technical team can customize the perfect thermal solution for your machinery.
