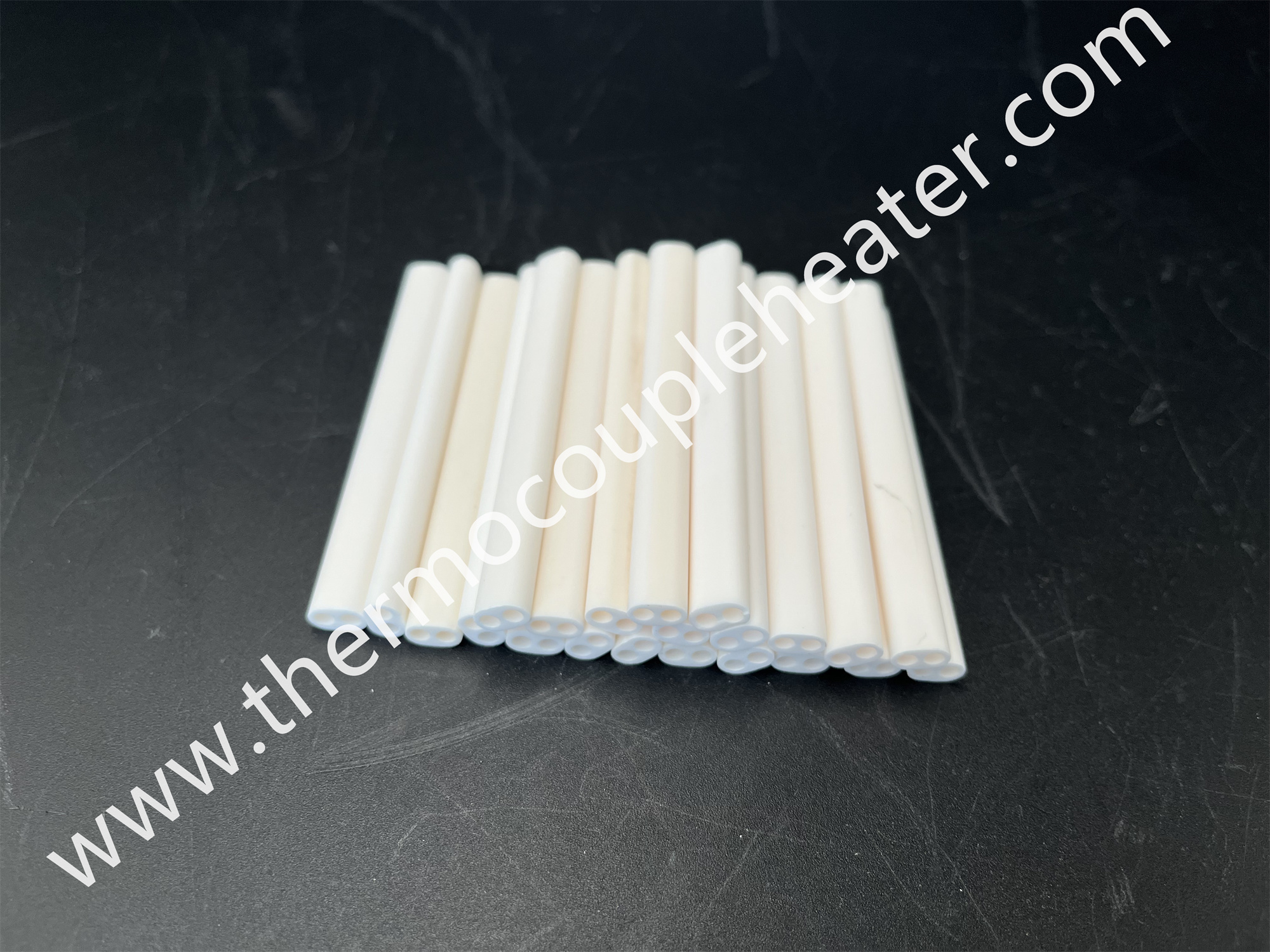

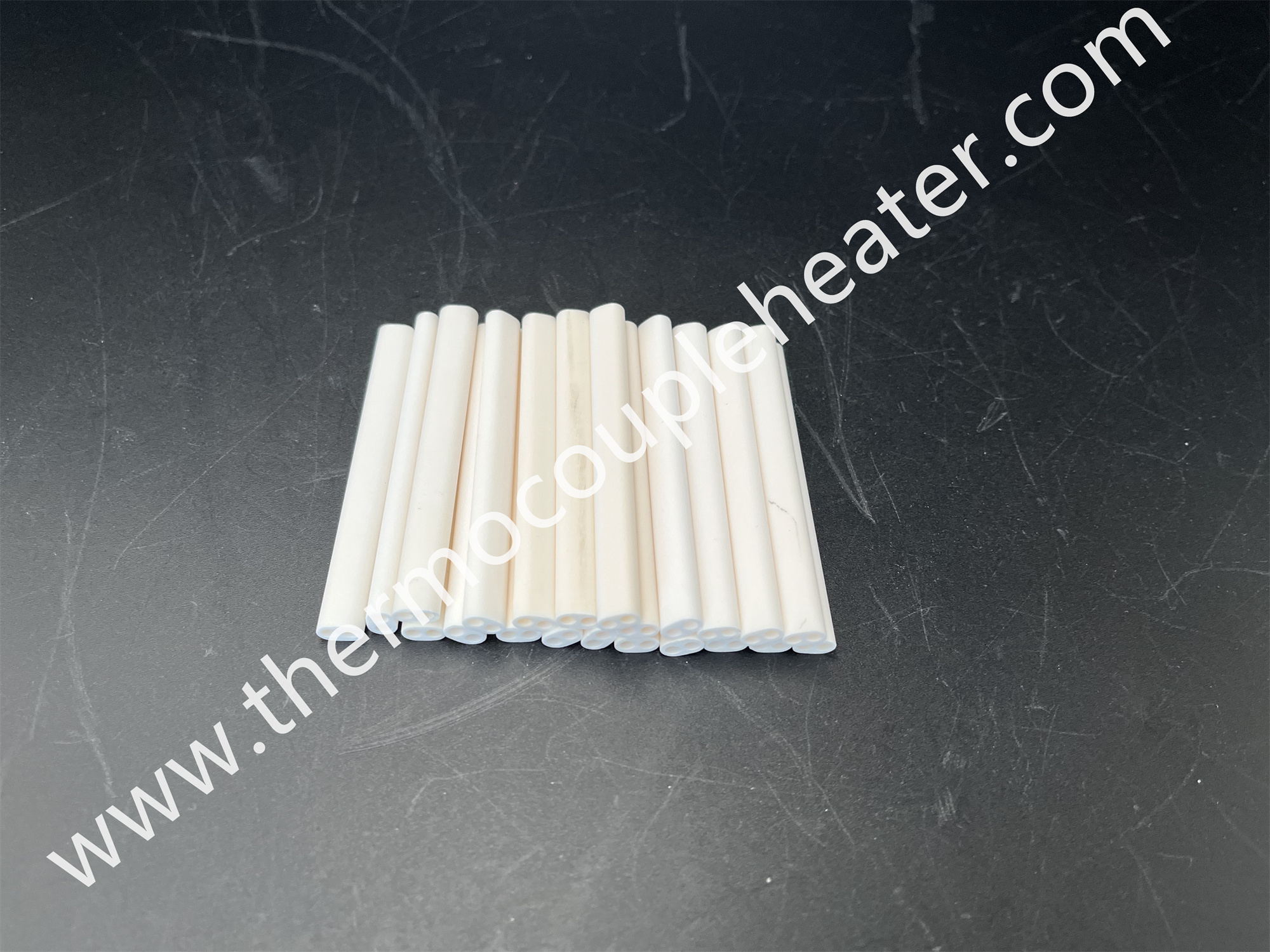

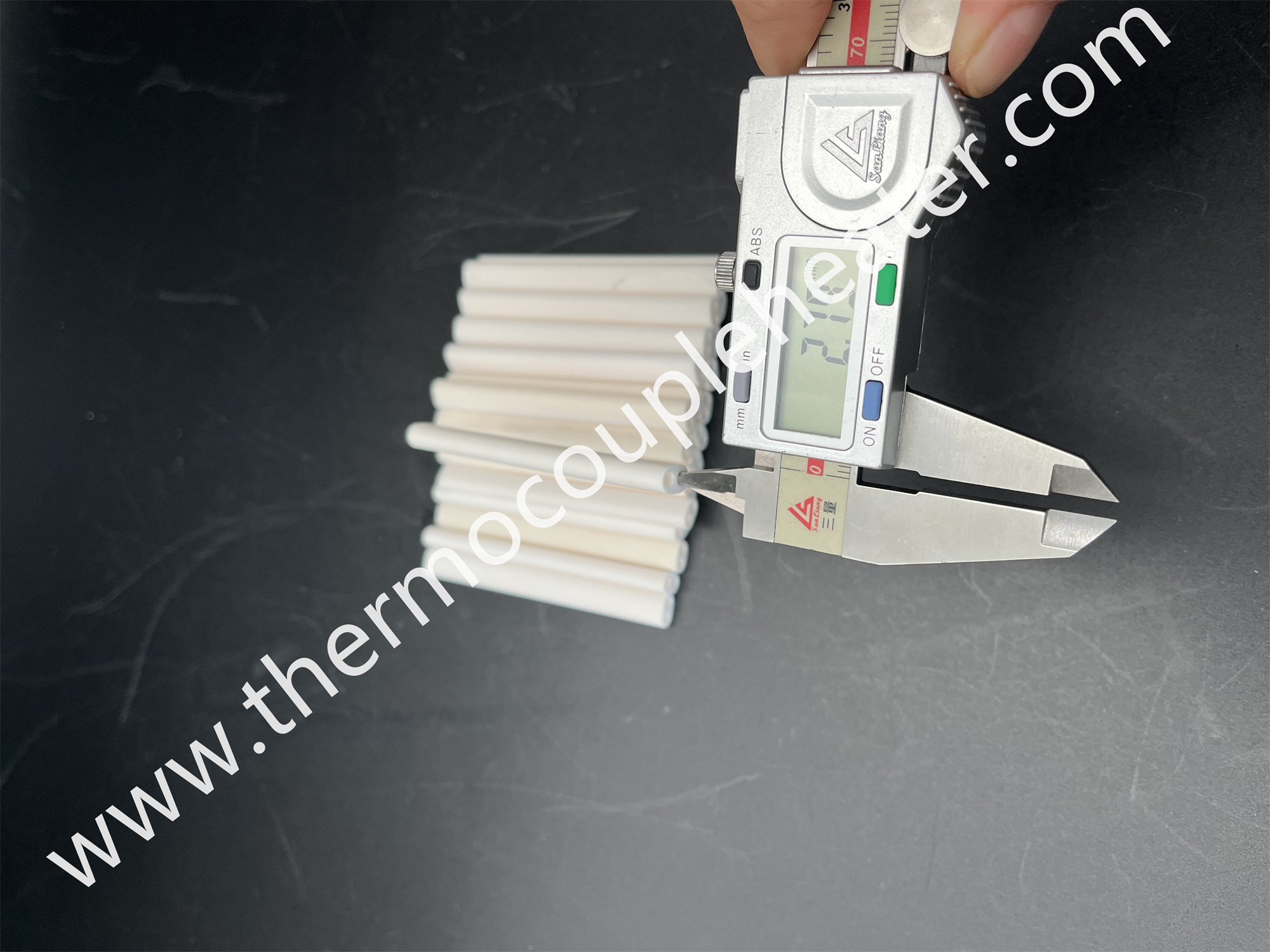

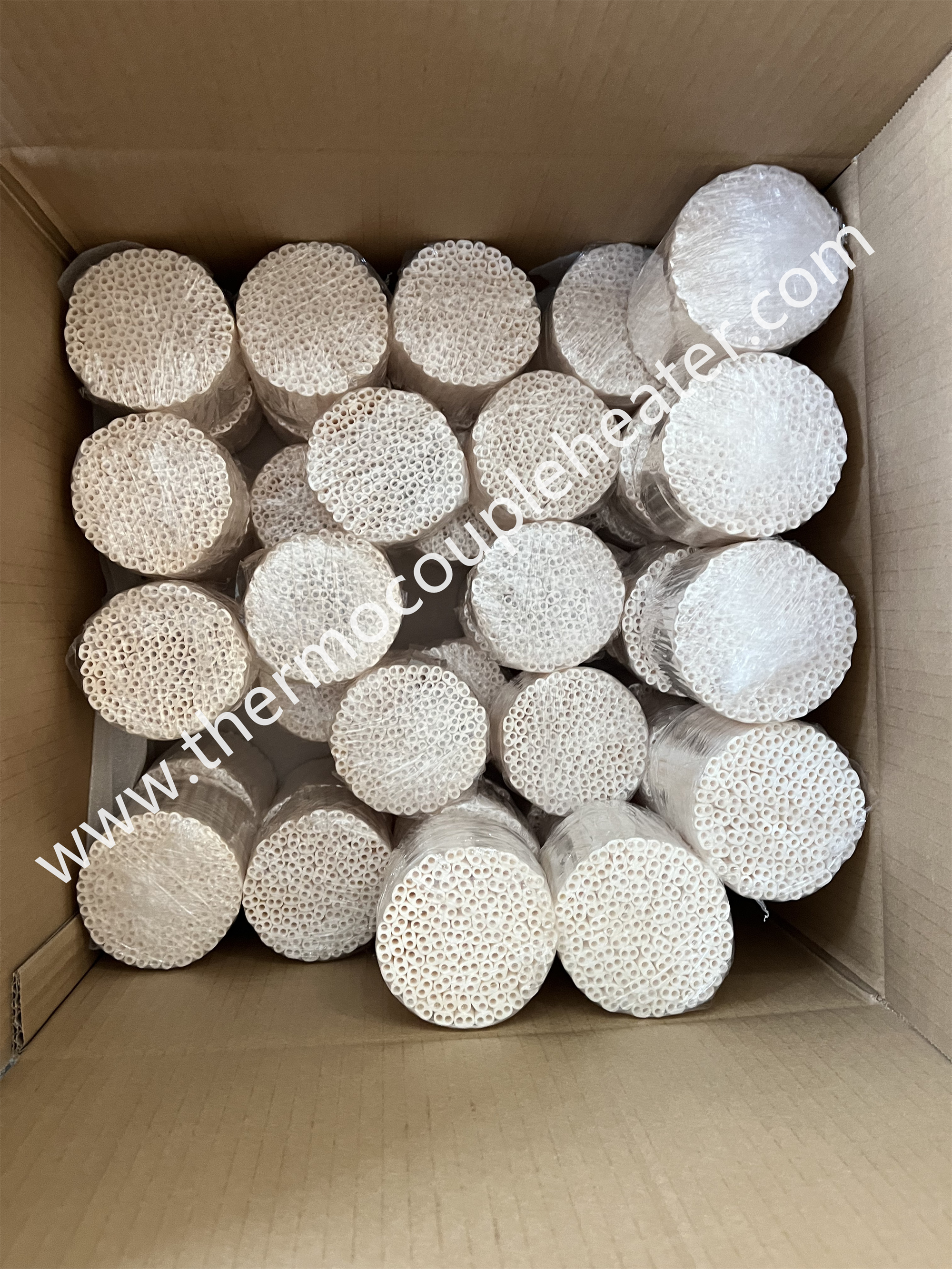

High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
Specifications
Shape :
Round, square, rectangular, oval
Place of Origin :
China
Certification :
CE
Brand Name :
GME
Packaging Details :
paper carton, wooden carton
Model Number :
Mgo rod
MOQ :
500pcs
Delivery Time :
30days
Payment Terms :
L/C, T/T, Western Union
Color :
White / Ivory
Usage :
Works as refractory material
Price :
USD$0.002/pc
Bores :
Single,two,four or multi bores
Supply Ability :
100000pcs per month
Material :
Magnesium oxide ceramic
Description

High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors

Description:

We are supplying a wide variety of ceramic tubes and rods manufactured from advanced technical ceramics including

1. alumina(Alsint 99.7 Type C 799/ Rubalit C 799/99.7% al2O3, 96% Dense Al2O3,Pythagoras Type C 610/ Dimulit C610, Sillimatin 60
Type C 530,Mullite/ Aluminium Silicate/3Al2O3•2SiO2)

2.zirconia (TTZ/ Magnesia partially stabilized ZrO2;YTZP/Yttria partially stabilized ZrO2;ZDY/ Yttria fully stabilized ZrO2)

3.silicon carbide(Recrystallized sic,nitride bonded sic, reaction sintering sic/RB sic ).
These tubes are in various of sizes, shapes and configurations for example:single bore, double bores, four bores, dee tubing, oval
shapes, custom shapes.

95 Ceramic Tube Physical Properties
Material
85Al2O3
90Al2O3
95Al2O3
99Al2O3
Al2O3
85%
90%
93%
99.30%
Fe2O3
≤1.0
≤0.5
≤0.5
≤0.3
Desnsity:g/cm3
3.4
3.5
3.6
3.85
Vicker Hardness
≥8.6
≥8.8
9
9
Water Absorption:%
≤0.2
≤0.1
≤0.085
≤0.01
Refractoriness:℃
1580
1600
1650
1800
Flexural Strength:Mpa
180
200
240
280
Wear Rate
(at room temperature, erosion, 100 grinding):%
≤3
≤0.5
≤0.5
≤0.5
High Temperature Alsint C799 99.7% Alumina Ceramic insulators for thermocouple sensors
