High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
High Density 95% MgO Ceramic Tube For Thermocouple Protection
Specifications
Brand Name :
GME
Model Number :
Mgo rod
Certification :
CE
Place of Origin :
China
MOQ :
500pcs
Price :
USD$0.002/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
30days
Packaging Details :
paper carton, wooden carton
Material :
Magnesium oxide ceramic
Color :
White / Ivory
Bores :
Single,two,four or multi bores
Shape :
Round, square, rectangular, oval
Usage :
Works as refractory material
Description

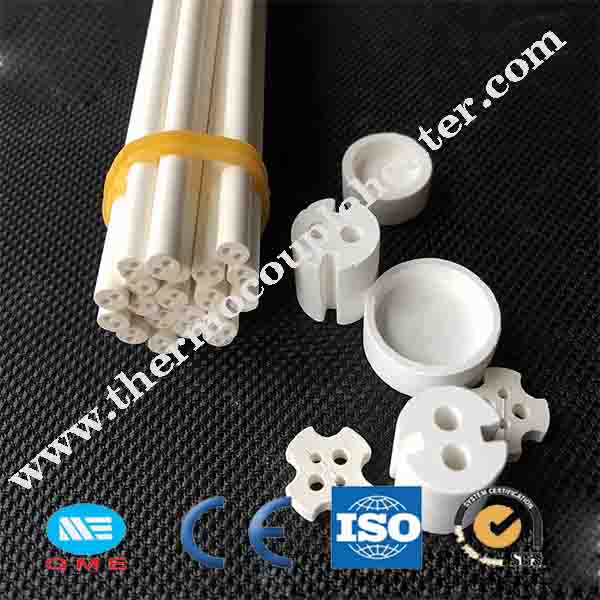

High Density 95% MgO Ceramic Tube Magnesia Isolators for Thermocouple Protection

Description:

Solid mgo rod:
OD 3-16mm,L 200mm
18x200
20x200
other size customized
Single hole:
4.7x2.8
5.6x3
6.5x3.4
7x4,8x5,9x6,10x6.5,ect
2 holes:
6x1.8,7x2,9x3
11x3.3
13x4,15x5,17x5
18x6,20x6
3 holes
4 holes
7 holes
8 holes
mgo head and bottom
It is used for high-power single-ended electric heating pipes and hot runners, etc. It has the advantages of insulation, pressure resistance, and good heat transfer effect.
Various kinds of single-hole, double-hole, four-hole, five-hole, six-hole, eight-hole, and nine-hole porous magnesium oxide tubes with an outer diameter of 2.0mm-25mm,and we can also produce according to customer requirements.
We use high pure fused magnesia as raw material,made by high-pressure automatic extrusion and fired in a 1700-degree tunnel pushing plate cellar furnace with high density (2.3g /ml). The level of its insulation and withstand voltage products has been continuously improved.

Currently we can produce various kinds of single-hole, double-hole, four-hole, five-hole, six-hole, eight-hole, and nine-hole
porous magnesium oxide tubes with an outer diameter of 2.0mm-25mm,and we can also produce according to customer requirements.

Use: armored wire, armored heater.
Features:
* High temperature resistance
* Low electrical conductivity
* High thermal conductivity
* Good corrosion resistance
* Infrared transparent
Typical applications:
* Heating elements
* Thermocouple tubes
* High temperature crucibles
* Kiln furniture
