Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
120v 220v 240v 380v, 220V
Sheath material :
SUS304,SUS316
Cross Section :
3.0x3.0,3.3x3.3mm,4.50 * 4.50 mm
Style :
straight or coil
Lead wire :
, fiberglass , metal mesh
Coiling Scheme :
Tangential, radial exits, axial
Material :
Brass and stainless steel
Application :
manifolds, hot runner/ injection
Surface finishing :
bright or soft annealed
Insulation Resistance :
> 5 MΩ
Description

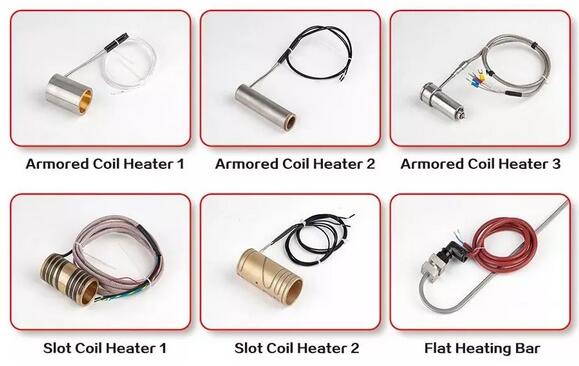

Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

Description:

1) Spring heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.

2) Spring heater is also known as high performance tubular heaters or cable heaters.

3) Spring heater can be produced with or without built in thermocouples.

4) Spring heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields

Specification:

1.Use condiction:environment temperature:-20~+60C,Relative temperature<95%

2.Leakage current: <0.5MA

3.Insulation resistance: ≥5MO

4.Groud resistance: <0.1O

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance: 100-1200 ℃

Voltage 12~480V
Wattage 100~3000W
Heating Section 2.2*4.2/3*3/3.4*3.4/3.5*3.5/4*4mm
Thermal Proection Built in type "K" or "J" thermocouple
Operation Temperature 0~700C
Lead Cable Fiberglass/Feb/Silicone/Stainless steel braided/Armor cable
Dimension Tolerance Coil ID ± 0.1mm to 0.2mm
Coil Length ± 1mm
Unheated Length 35mm (Standard)

Hot Runner System 5 Wire Industrial Electric Coil Heaters For Injection Molding

Application:

1.Moulds&dies

2.Manifolds

3.Hot runner nozzles and spruce bushes

4.Packaging machineries

5.Injection moulding machines nozzle
