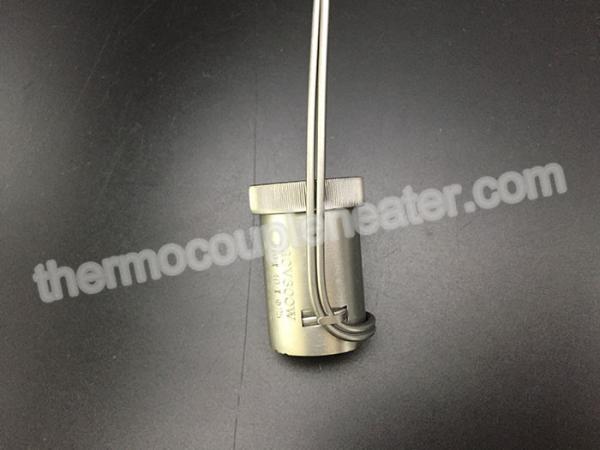

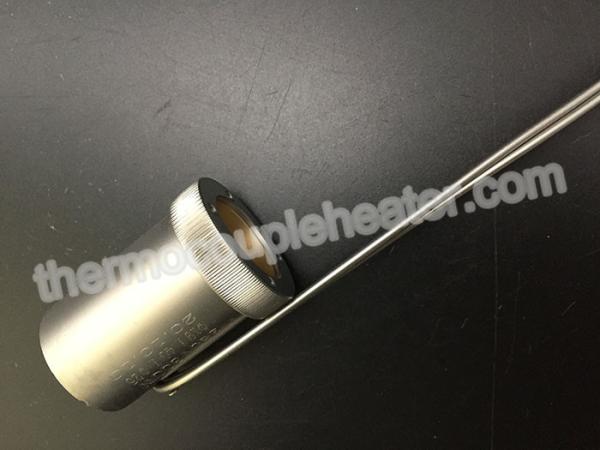

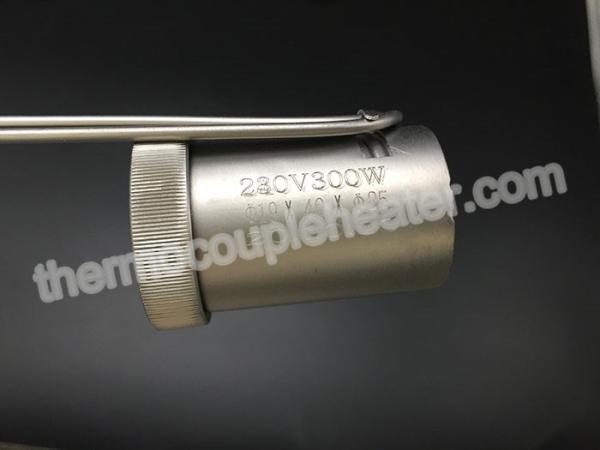

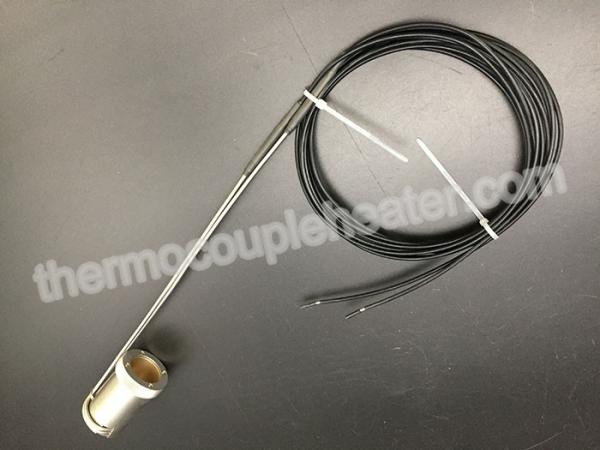

Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
CE & ISO
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
D/P, L/C, Western Union, T/T, Paypal
Delivery Time :
20,000pcs per month
Packaging Details :
Exported Case Packing
Product Name :
Hotlock Hot Runner Coil Heater With Brass Spiral Core And Stainless Steel Sleeve Cap
Application :
Hot Runner
Insulated Material :
Comressed MgO
Power(W) :
200-3000W
Watt Density :
6.5 W / CM 2
Warranty :
1 Year
Moistureproof :
IP 65
Lead Wire Length :
1000 mm or customized
Description

Hot-lock Coil Heater With Brass Spiral Core And Stainless Steel Screwed Cap


1. Brief Introduction

The Hotlock Coil Heater are constructed with a brass core and a Stainless Steel outer sleeve. The heater is tightly sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs.

The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required.

Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds. Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface.

2. Specification

Sheath material Chrome Nickel Steel
Insulation material High purity MgO
Heating element NiCr 80:20
Thermocouple 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
Connection Wires Stranded Nickel wires with PTFE coating
Power Tolerance (+5% ,-10%) (smaller tolerances on request )
Insulation Resistance ≥ 500 MΩ at 500V AC
Current Leakage ≤ 0.5 mA at 253V AC
Sheath Temperature 750°C
Dielectric strength (high voltage test ) Min. 1000V

Technical Drawing

Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core


3. Feature

  • Robust Design with Choice of Terminal Exits
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • CE Certified
  • Available with built in Thermocouple
  • Standard sizes available with various cross section
  • Various Watt Density options available.

4. Application

  • Injection & Blow Moulding Machine Nozzles.
  • PET prefrom & Thin wall container Moulds.
  • Hot Runner Manifolds.
  • Hot Runner Nozzles & Bushings.
  • Hot runner Injection moulds

5. Packing

Stainless Steel Screwed Cap Hotlock Coil Heaters With Brass Spiral Core
