Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Temperature range :
-200~650℃
Voltage :
12-480V
Probe material :
SS304/SS316
Style :
B/R/S/W, KB-602; KS-602; KR-602; KW-602;604
Pairs quantity of element :
Simplex/duplex
Heating Element :
Nichrome Resistance
Mounting :
Thread/flange/none
Function :
Temperature sensor
Feature :
Economical
Types of terminal box :
Anti-spray/water-proof
Connection :
Thread
Sample :
Available
Description

Hot Selling Fast Response Molten Steel Consumable Disposable Thermocouple Head/Tip For Steel Mills



Description:

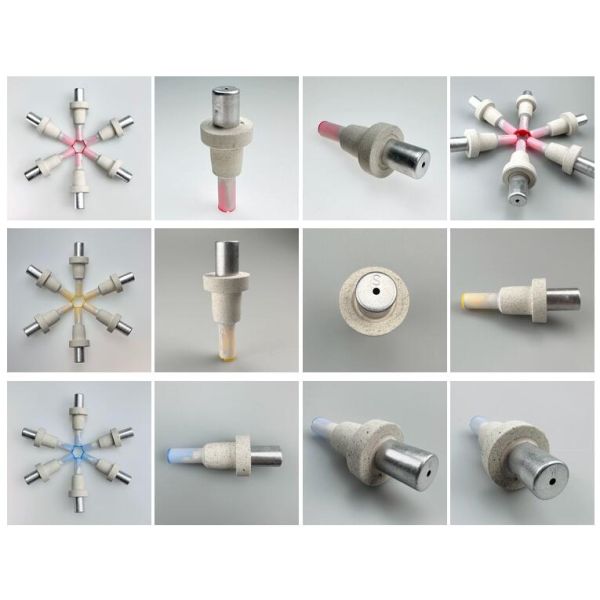

Disposable temperature thermocouple tips.
The coupling head mainly has positive and negative coupling wires welded on the compensation wire, and the compensation wire is embedded in the bracket. The bracket is covered with a small paper tube, and the coupling wire is supported and protected by quartz. The outer part is equipped with anti-slag cap, all the components are concentrated into the mud head and bonded into a whole with refractory filler, and can not be disassembled, so it is disposable.
KR/KS/KB/KW-602/604 Temperature Sensor for Molten Liquid Steel Immersion Disposable Expendable Thermocouple, which insert into the molten metal for measuring the temperature in the steel making industry.
The immersion thermocouples are with high accuracy and reliability.We can also supply sensors for any application.For example,variations in length,slag cap and thermocouple types to suit the customer's precise requirements.

Specification:

Name
Type
Model
The best
Max
Accuracy
Wire diameter(mm)
PtRh10%/Pt
S
KS-602/604
1500-1700
1750℃
≤±5℃
0.05
PtRh13%/Pt
R
KR-602/604
1400-1600
1750℃
≤±5℃
0.05
PtRh30%/PtRh6%
B
KB-602/604
1400-1600
1800℃
≤±5℃
0.05
WRe5%-WRe26%
C
KC(KW5/26)602/604
1500-1700
1800℃
≤±7℃
0.08
WRe3%-WRe25%
D
KD(KW3/25)602/604
1500-1700
1800℃
≤±7℃
0.08
