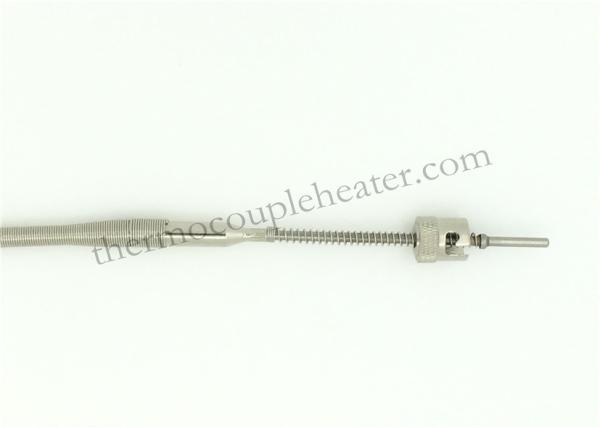

Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor
Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor
Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor
Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor
Specifications
Brand Name :
GME
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypel
Supply Ability :
100000 pcs per Month
Delivery Time :
7~20 working days after received your payment
Packaging Details :
Standard Export Packing
Product Name :
Thermocouple Probe
Calibration :
J
Probe Size :
OD 1.5mm x 350mm
Wire Length :
12''
Insulation :
Fiberglass
Accuracy :
Class I
Probe Material :
Inconel 600
Max.temperature :
800℃
Description

Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor

Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor

1.Introduction

Thermocouple is a kind of general purpose temperature sensor , which is designed to satisfy all applications mainly in plastic and rubber industry, where metal sheathed thermocouples are required. A wide range of accessories or components can be individually selected for the appropriate application. With the flexibility of assorted diameters and manually adjustable immersion lengths .

2.Specification

Probe material

Inconel 600
Calibration

Type J
Accuracy

Class I
Junction

Ungrounded , Ground
Wire description

20 Gage Stranded stainless steel braid

Flexible armor cable

20Gage Stranded fiberglass cable

20Gage Stranded Cable
Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and 1/2” Spade lugs,

Stranded Male Plug,

Stranded Female Jack,

Mini Male Plug,

Mini Female Jack,

Accessories

None,

Bx connector,

Cable clamp

3. Feture

  1. The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
  2. The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
  3. Wire and tube construction ;
  4. Easily replaceable and interchangeable

4. Application

  1. Plastics and rubber industry;
  2. Dies for extrusion profiles;
  3. Direct installation into the process;
  4. Packaging industry;
  5. Compression platens;

5. Packing

Inconel 600 Fiberglass Flexible Thermocouple Probe for Temperature Sensor
