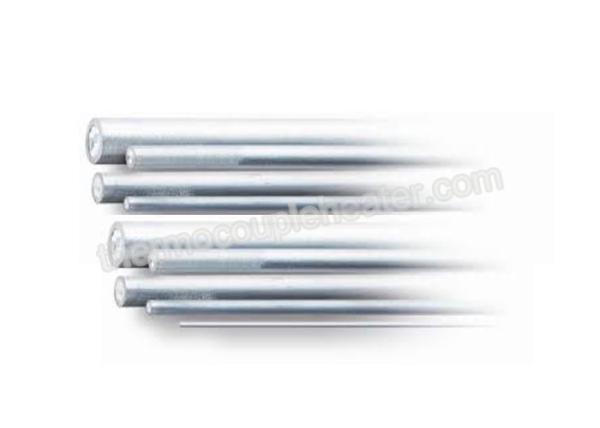

High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
Specifications
Brand Name :
GME
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 meters
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
300000 Meters per Month
Delivery Time :
3~7 working days
Packaging Details :
Carton or as per your request
Name :
high temperature Mineral Insulated Thermocouple Cable/ MI Cbale
Calibration :
Type J
Accuracy :
Class I
Sheath Material :
SUS316
Application :
Industrial Temperature Sensor
Conductor :
2 Wires
Diameter :
From 0.5-12.7mm
Insulation material :
99.6% high purity MgO
Description

High Temperature Mineral Insulated Thermocouple Cable/ MI Cbale


Feature

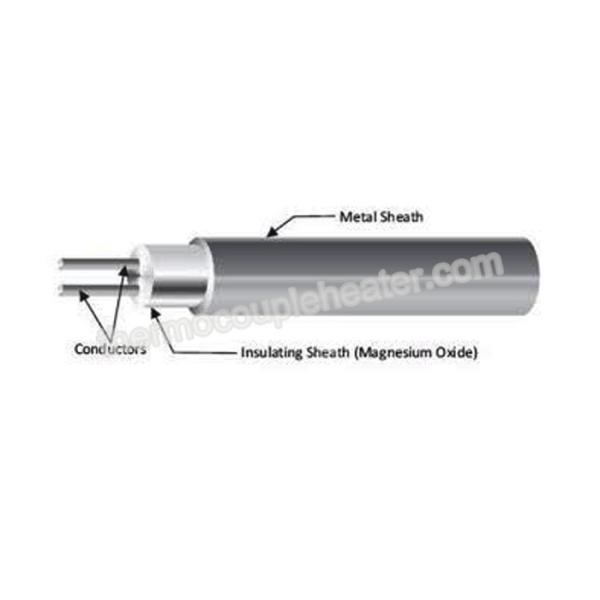

1). Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

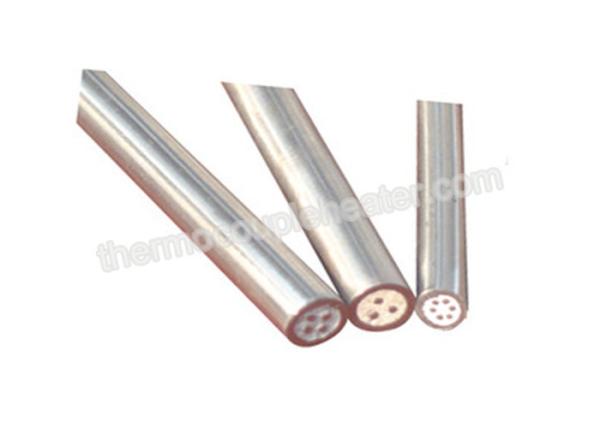

2). Core number: 2, 4 or 6 cores
3). Sheath material: SS321(SS304), SS316, SS310, INCL600
4). Insulator: 99.6% high purity MgO
5). Dia(mm): from 0.5mm to 12.7mm

Specification

Outside Sheath Diameter available 0.25mm-12.7mm
Calibration Available J, K, T , E , N, S, R, B
Sheath Material

304 Stainless Steel
316 Stainless Steel
310 Stainless Steel
Inconel 600
Incoloy800
Sheath Material Maximum Temperature In Air Melting Temperature
SS304 900℃ 1405℃
SS321 870℃ 1400℃
SS316 925℃ 1370℃
SS310 1090℃ 1405℃
INC600 1090℃ 1400℃
Conductor Calibration Accuracy
I II
Tolerance Temperature Tolerance Temperature
Ni Cr - Ni Si K 1.5 or 0.4%t -40~1000 2.5 or 0.75%t -40~1000
Ni Cr Si- Ni Si N -40~1000 -40~1000
Ni Cr - Konstantan E -40~800 -40~800
Fe - Konstantan J -40~750 -40~750
Cu - Konstantan T 1.5 or 0.4%t -40~350 1 or 0.75%t -40~350
Pt Rh 10 - Pt S 1 or 1+(t-1100)x0.003 0~1600 1.5 or 0.25%t 0~1600
Pt Rh 13 - Pt R 0~1600 0~1600
Pt Rh 13 - Pt Rh 6 B --- --- 600~1700



High Temperature Mineral Insulated Thermocouple Cable / MI Cbale

Company introduction

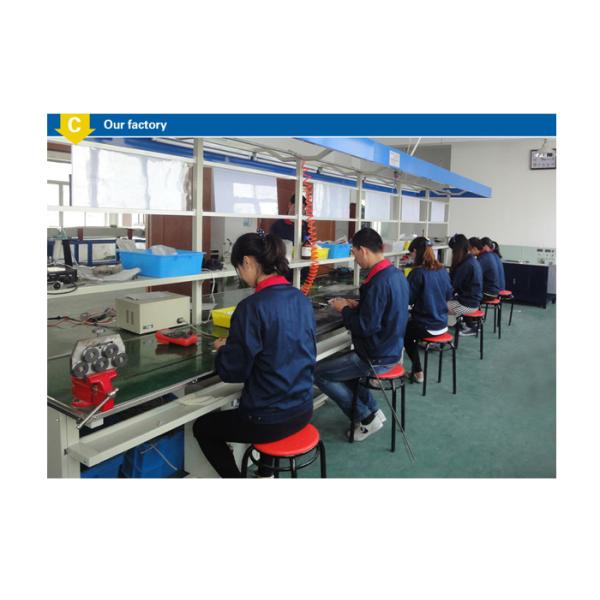

Wuhan Global Metal Engineering Co., Ltd (GME) professionally manufactures electric heaters, temperature sensors(thermocouples & RTDs), sacrificial anode, temperature controller and the related accessories primarily to industry since year 1995. After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries in the world.
High Temperature Mineral Insulated Thermocouple Cable / MI Cbale
RFQ

1.Q:Are you a factory or trading company?
A:GME cable is a cable manufacturing base in Wenzhou,China,with more than 500 workers.


2.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if checked available,Freight Charge normally will be on buyer’s account.

3.Q:How does your factory do regarding quality control?
A: Changcheng cable group has ISO9001 and ISO14004 certificate and strict QC system,we deliver only qualified cable.


4. Have you ever supplied cables to our country?
A: GME Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.

5. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables.


Any questions you have, please kindly contact me.
