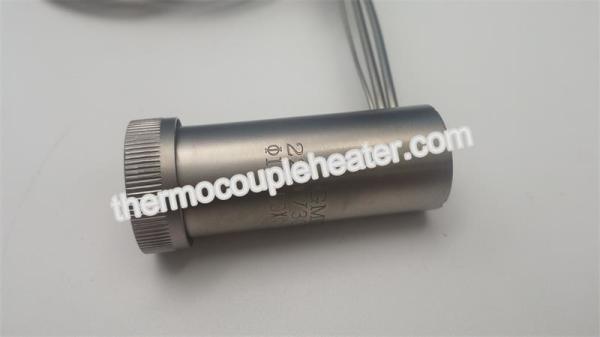

Hot runner pressed in brass coil heater in plastic injection mould for hot runner system

Description:

1) Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology .

2) The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.

3) Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds.

4) Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface .

Specification:

STANDARD CONFIGURATION

MATERIAL: 304 and brass

UNHEATED LENGTH :45mm

POWDER LINES ,GROUNDING WIRES LENGTH :1000mm

PROFECT WITH SLEEVE : 1.SILICON GLASS FIBER (WHITE ,BLACK,ORANGE ,GREEN AND OTHER )

Thermocouple :with thermocuple channel and themocouple hole

SURFACE TREATMENT : grit blast

SECTION :

SECTION :2.2*4.2mm,2*4mm,3.3*3.3mm,3*3mm,2.4*1.6mm,2.1*1.5mm,

3.5*3.5mm,4.5*2.7mm,4*4mm,5*5mm (square)

Φ1.8mm Φ2mm Φ2.5mm (round)

Application:

1) Heating nozzle & bushings

2) Die Casting Nozzles

3) Hot runner tools in the plastic industry
