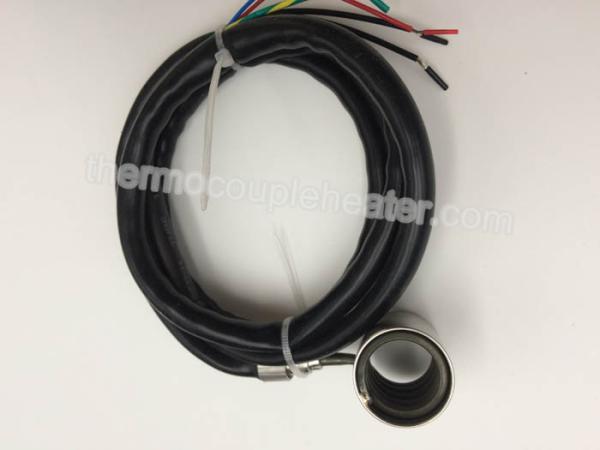

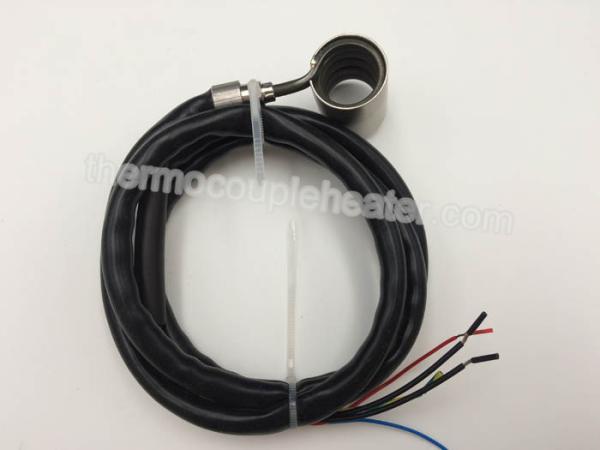

Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve
Specifications
Brand Name :
GME
Model Number :
Coil Heater
Certification :
CE, Rohs, ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
D/P, L/C, T/T, Paypal, , Western Union
Supply Ability :
20,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Exported Case Packing
Product Name :
Stainless steel armor Hotlock Coil Heater
Application :
Hot Runner
Moistureproof :
IP65
Insulated Material :
Comressed MgO
Watt Density :
6.5 W /CM 2
Power(W) :
200-3000W
Max.Tempreture :
650℃
Description

Stainless steel armor Hotlock Coil Heater With Type J Thermocouple


1. Coil Heater Description

Coil heaters have a construction which is similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. They are used when you require highly focused heat with a low profile. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.

2. Electric Resistance Heater Characteristics

  • Various Watt Density options available.
  • Standard sizes available with various cross section
  • Robust Design with Choice of Terminal Exits
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple

3. Electric Resistance Heater Parameter.

​

Standard Configuration

Material :304

Connector(cold side)(D1xU): Ф3.5x40mm

Unheated length(L1):45mm

Power lines,grounding wire length(L):1000mm

Surface treatment:sandblasting;

Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve

Sheath material Chrome Nickel Steel
Insulation material High purity MgO
Heating element NiCr 80:20
Thermocouple 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
Connection Wires Stranded Nickel wires with PTFE coating
Power Tolerance (+5% ,-10%) (smaller tolerances on request )
Insulation Resistance ≥ 500 MΩ at 500V AC
Current Leakage ≤ 0.5 mA at 253V AC
Sheath Temperature 750°C
Dielectric strength (high voltage test ) Min. 1000V

4. Electric Resistance Heater Application

  • Plastic injection molding nozzles
  • Medical, analytical and scientific instruments
  • Restaurant and food processing equipment
  • Cast-in heaters
  • Laminating and printing presses
  • Air heating
  • Textile manufacturing
  • Heating in a vacuum environment
  • Semiconductor manufacturing and wafer processing
  • Hot metal forming dies and punches Sealing and cutting bars
