Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency
Specifications
Brand Name :
XUYANG
Model Number :
SS22-SS26
Certification :
ISO9001
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300000pcs/month
Packaging Details :
3000pcs/box
Product Name :
SS22-SS26
Current :
2.0A
Voltage :
20-60V
SPQ :
30000pcs/box
Package :
SMB
Description

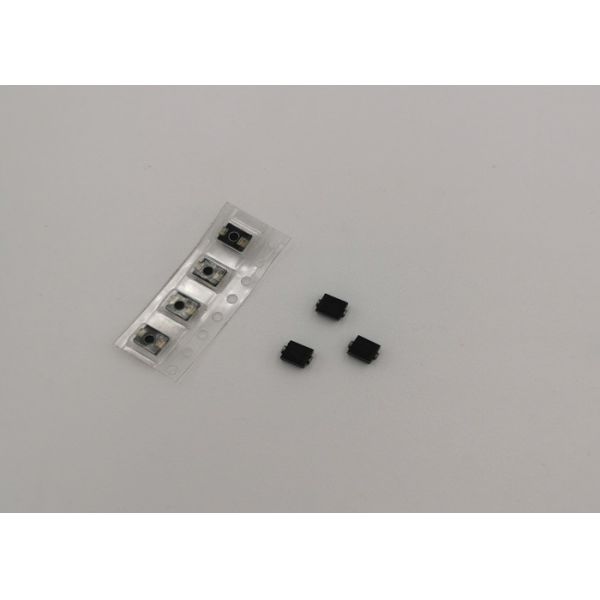

2.0Ampere Surface Mount Schottky Barrier Rectifier SS22-SS26 SMB Pakcage Tape in reel

FEATURES:

* Ideal for surface mount pick and place application
* Low profile package
* Low power loss,high efficiency
* High current capability,low Vf

* High surge capability

* High temperature soldering guaranteed:260 C/10 seconds at terminals

MECHANICAL DATA

• Terminal: Plated leads solderable per
MIL-STD 202E, method 208C
• Case: Molded with UL-94 Class V-O
recognized flame retardant epoxy
• Polarity: Color band denotes cathode

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%

TYPE NUMBER SS22 SS23 SS24 SS25 SS26 UNITS
Maximum Recurrent Peak Reverse Voltage 20 30 40 50 60 V
Maximum RMS Voltage 14 21 28 35 42 V
Maximum DC Blocking Voltage 20 30 40 50 60 V
Maximum Average Forward Rectified Current at T L 300 2.0 A

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

 50 A
Maximum Instantaneous Forward Voltage at 2.0A

0.50

 0.70 V
Maximum DC Reverse Current Ta=25 C 0.5 mA
at Rated DC Blocking Voltage Ta=100 C 20.0 mA
Typical Junction Capacitance (Note1) 200 pF
Typical Thermal Resistance Rq JA (Note 2) 25 o C/W
Storage and Operation Junction Temperature -65 to +150 o C


Drawing:

Surface Mount Schottky Diode 2A Low Power Loss With High Efficiency

What can we You from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
