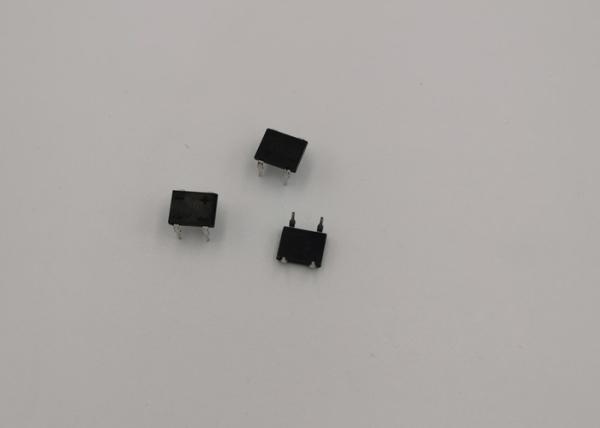

1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier
1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier
1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier
1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier
Specifications
Brand Name :
XUYANG
Model Number :
DB151-DB157
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs per week
Delivery Time :
7 - 10 work days
Packaging Details :
tape in reel, 1000pcs/reel
Part number :
DB151-DB157
Current :
1.5A
Voltage :
50-1000V
Mounting Type :
Surface Mount
Shipping by :
DHL\UPS\Fedex\EMS\sea
SPQ :
1000pcs
Operating Temperature :
-55°C to +150°C
Storage Temperature :
-55°C to +150°C
Description

Single-Phase Glass Passivated Bridge Rectifier DB151-DB157 1.5A 50-1000V

FEATURES

· Glass passivated chip junction
· Low forward voltage drop
· High surge overload rating of 50 Amperes peak
· Ideal for printed circuit board
· High temperature soldering guaranteed:
260°C for 10 seconds

MECHANICAL DATA

Case: Molded plastic, DB
Epoxy: UL 94V-O rate flame retardant
Terminals: Leads solderable per MIL-STD-202,
method 208 guaranteed
Mounting position: Any
Weight: 0.02ounce, 0.4gram

Maximum Ratings & Thermal Characteristics

Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%

Parameter Symbol DB151 DB152 DB153 DB154 DB155 DB156 DB157 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS bridge input Voltage VRMS 35 70 140 280 420 560 700 V
Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V

Maximum instantaneous forward voltage drop

per leg at 1.0A

 VF 1.1 V

Maximum DC reverse current at rated TA =25 C

DC blocking voltage per element TA =125 C

 IR

5.0

500

 μA

Maximum average forward rectified

output current at TA=40 C

 IF(AV) 1.5 A

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

 IFSM 50 A
Typical Thermal Resistance (Note 2) ReJA 40 ℃/W
Typical Junction Capacitance (Note 1) Cj 25 pF

Operating junction and storage temperature

range

TJ,

TSTG

 -55--150 ℃


Notes: (1)Thermal resistance from Junction to Ambemt on P.C.board mounting.

(2)Measured at 2.0MHz and applied reverse voltage of 4.0 volts.

Size:

1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier

1.5A Passivated Bridge Rectifier , Single Phase Half Wave Bridge Rectifier

Why choose us?

1. ISO9001:2008 certified factory

2. 20 years rich experience in the diode production

3. Strict quality control, achieve customer's maximum satisfaction

4. The Annual production capacity is over 2 billion

Product tags

bridge rectifier 1 phase

,

1 phase bridge rectifier

,

3 phase full bridge rectifier
