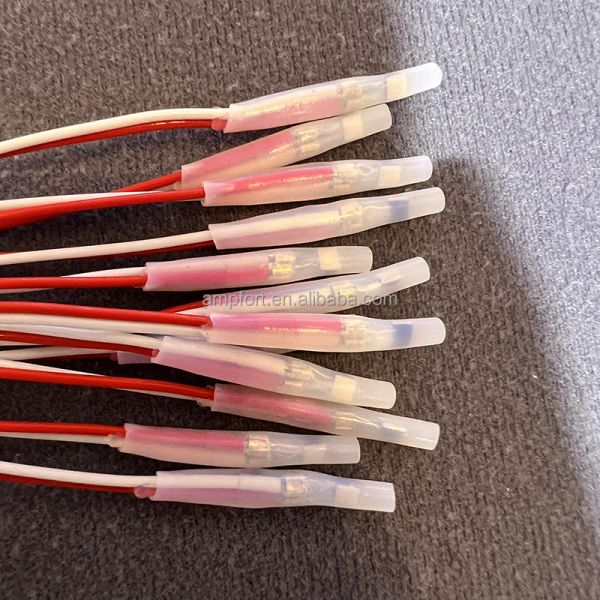

High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding
Specifications
Brand Name :
CNAMPFORT
Model Number :
JSF-M222A-3L1000
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10,000,000pcs per month
Delivery Time :
2 weeks
Packaging Details :
Bulk
Name :
PT100 Temperature Sensor
R0 :
100 Ohm
CLASS :
A
Wire :
PTFE
Temp range :
-50~+260C
Test current :
DC 0.3-1mA
Resistance change value (0...100℃) :
0.385Ω/℃
Protection level as EN60529 standard :
IP54
Description

High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding

Description

The perfluorinated Pt100 temperature sensor is primarily used for embedding inside coils during the installation of motor and transformer windings for temperature monitoring and control purposes. Compared to traditional common products (such as iron-cased sensors), its advantages are evident.
1. The Pt platinum resistor is completely encapsulated and solidified in fluoroplastic, providing high insulation to the body and ensuring long-term stability and accuracy across a wide temperature range.
2. The ultra-small insulation structure can be easily installed and embedded into narrow spaces. It can be appropriately shaped and bent according to the coil without damaging the winding, avoiding inter-turn short circuits, and ensuring extremely fast thermal response speed.
3. The perfluorinated sensor exhibits resistance to vacuum impregnation and exceptional high voltage tolerance.
4. At the same time, the sensor also boasts high mechanical strength, vibration resistance, and resistance to any corrosion. Perfluorinated sensors are available in various models and categories, such as Pt200, Pt500, Pt1000, NTC, KTY, etc., and include 2-wire, 3-wire, and 4-wire products.

Specification

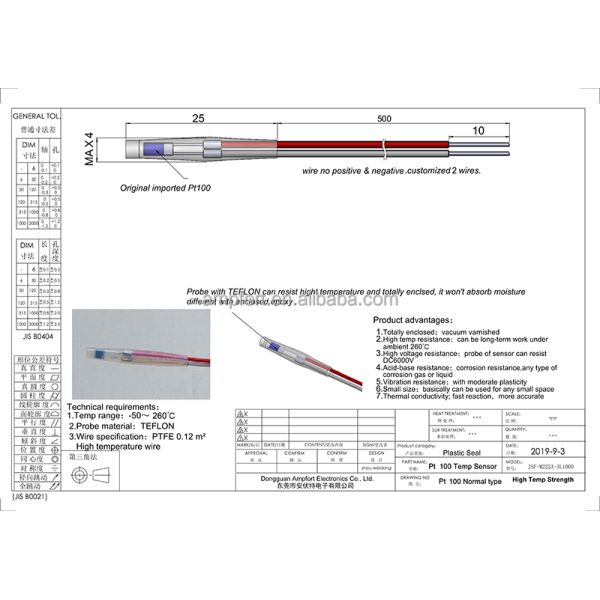

High Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor WindingHigh Temperature Plastic Sealed RTD CLASS a PT100 Temperature Sensor for Transformer Coil Motor Winding

Series features

Recommended test current value (thermal effect value less than 0.1℃) DC 0.3-1mA
Resistance at 0℃) 100±0.06Ω
Resistance change value (0...100℃) 0.385Ω/℃
Operating temp range -70--+260℃
PTFE-lead specifications standard 0.14mm2(AWG26) optional 0.2mm2(AWG24)
Insulation test voltage AC 2.5kV
Protection level as EN60529 standard IP54
Bend radius >25mm
