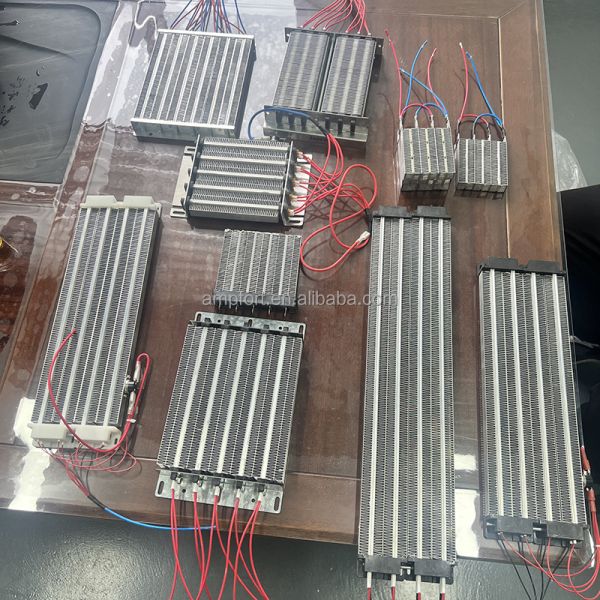

220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater
Specifications
Brand Name :
AFTPTC
Model Number :
AFTPTC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P, Wechat,Paypal,Alipay,Bank Transfer
Supply Ability :
100,000,000pcs per month
Delivery Time :
2-3 weeks
Packaging Details :
Bulk
Name :
Air Heater Heating Element
Power :
2000W
Voltage :
220V
Feature :
Long lifespan
Description

220V 3000W PTC Thermistor Stone Pill Air Heater Ceramic Constant Temperature Heating Element Insulated Industrial Heater

Instruction manual(PTC Air Heater 2000W 220V)
1, The power line does not distinguish between positive and negative, you can freely link power 220V.

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, Can be placed under a wet environment, but can not be placed in water.

4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6, Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

9, Life: about: 3--5 years.

Features

1. Rated Voltage: 220V

2. Rated Power: 2000W (R=24℃,3.3m/s wind flow velocity)

3. Size: 430*50.5*26mm

4. Dimension of Fin:76*31mm

5. Dimension of Mounting hole:410*42.5mm

6. Bimetal:70Celsius

Specification

Product Name PTC Air Heater
Heat Material PTC Thermistor
Heat Methods Self heat / self control
Lead Wire Silicone High Temperature Line
the Length of Lead Wires 200mm
the Length of Bare Wires 10mm
Surface Insulate Yes
Application Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier
