High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
Specifications
Brand Name :
CNAMPFORT
Model Number :
MYE70-222F
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100,000,000pcs per month
Delivery Time :
1-2 weeks
Packaging Details :
Bulk
Name :
Varistor Blocks
Maximum AC Volts :
1400V
Maximum DC Volts :
1750V
Varistor Voltage (Min) :
1980V
Varistor Voltage (Typ) :
2200V
Varistor Voltage (Max) :
2420V
Description

High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V

Description

The MYE Series transient surge suppressors areheavy-duty industrial Metal-Oxide Varistors (MOVs)designed to provide surge protection for motor controls andpower supplies used in oil-drilling, mining, transportationequipment and other heavy industrial AC line applications.These varistors have similar package construction but differin size and ratings. The MYE models are rated from 130 to880VM(AC). The BB models from 1100 to 2800VM(AC).The MYE Series feature improved creep andstrike capability to minimize breakdown along the packagesurface, a package design that provides complete electricalisolation of the disc subassembly, and rigid terminals toensure secure wire contacts.

Features

• High energy absorption capability

• Wide operating voltagerange VM(AC)RMS

• Rigid terminals for secure wire contact

• Case design providescomplete electrical isolationof disc subassembly

• No derating up to 85ºC ambient

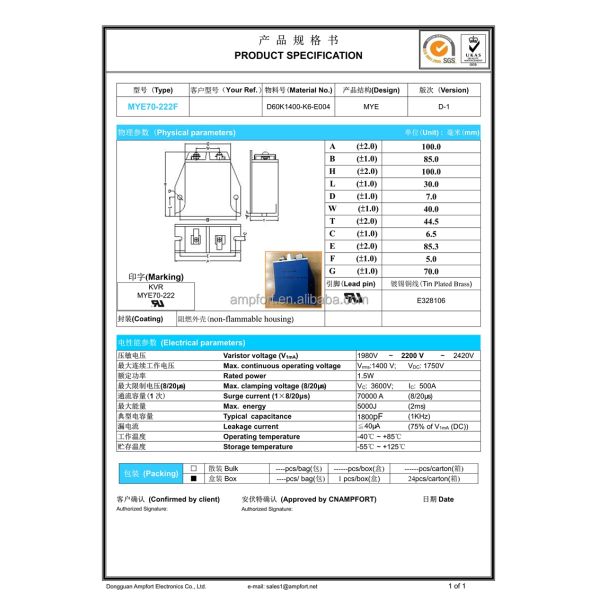

Specification

Varistor voltage (V1mA) 1980V ~ 2200 V ~ 2420V
Max. continuous operating voltage Vrms:1400 V; VDC: 1750V
Rated power 1.5W
Max. clamping voltage (8/20μs) VC: 3600V; IC: 500A
Surge current (1×8/20μs) 70000 A (8/20μs)
Max. energy 5000J (2ms)
Typical capacitance 1800pF (1KHz)
Leakage current ≤40μA (75% of V1mA (DC))
Operating temperature -40℃ ~ +85℃
Storage temperature -55℃ ~ +125℃

High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V

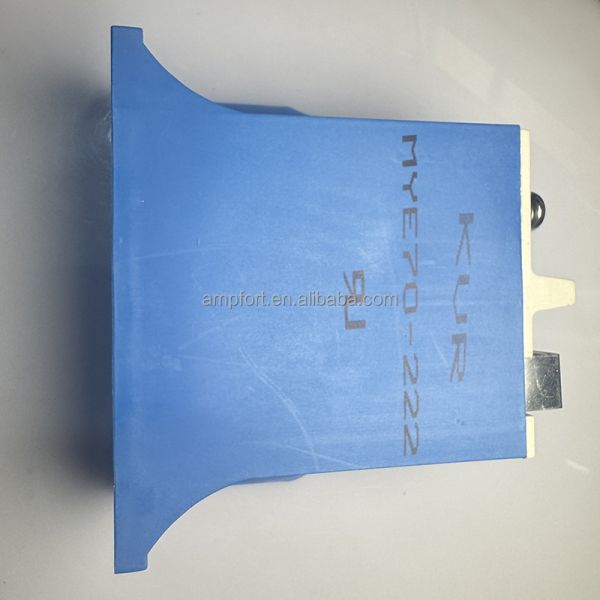

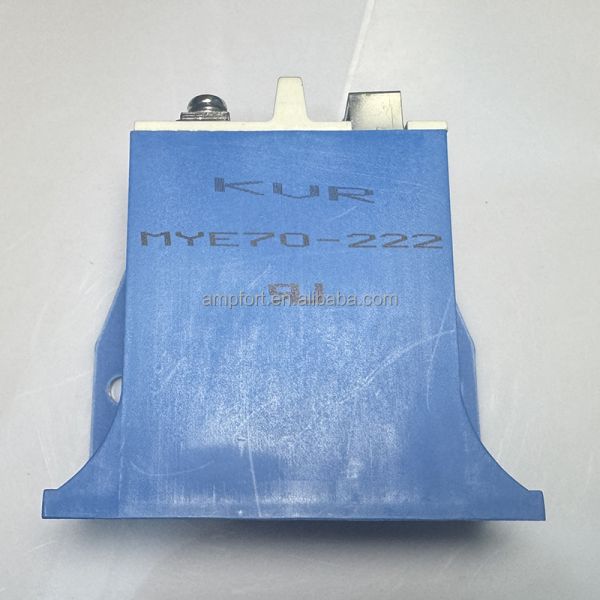

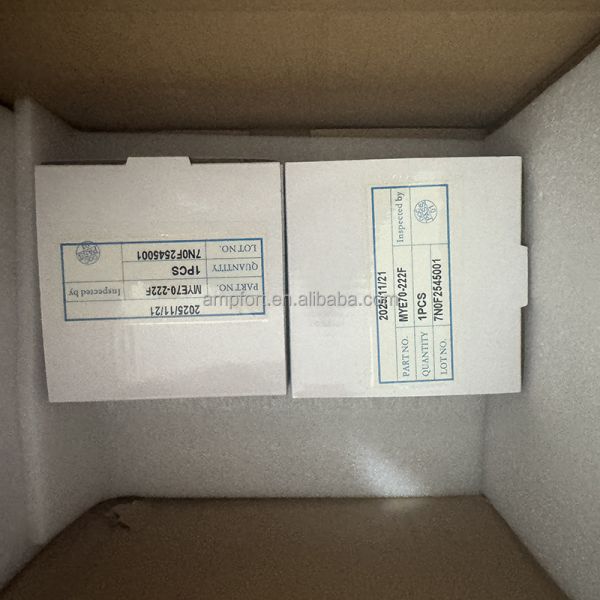

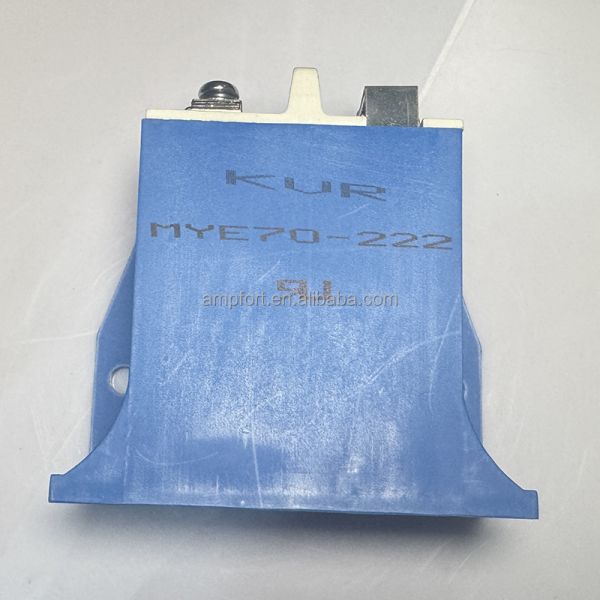

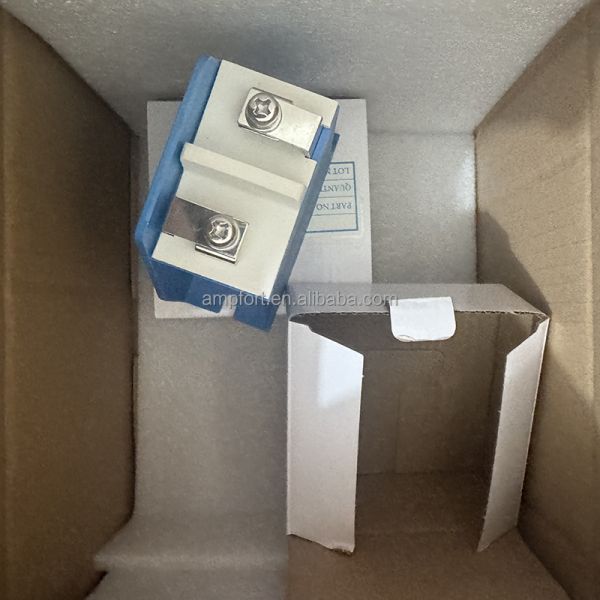

Photos

High Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200VHigh Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200VHigh Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200VHigh Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200VHigh Energy Metal Oxide Varistor Blocks MYE70-222F 70KA 2200V
