Disinfection Cabinet Warm air Blower Bath Heater PTC Heater 220V 400W Thermistor Heating Element With Fan

Product Introduction

Product Name: PTC Drying Machine

Shell size: 96 * 60 * 55mm

Installation hole spacing: 80mm
Voltage: DC12/AC220V
Power: 50-300w
This product is a new type of electric heater designed for various high and low voltage switchgear, central cabinets, distribution cabinets, ring main units, and various box type substations to remove moisture, prevent condensation, and improve the working environment temperature of electrical components.

Description

PTC electric heater, also known as PTC heating element or PTC heater, is composed of selected high-quality PTC thermosensitive ceramic heating components as the heat source, and is made of corrugated aluminum strips bonded, welded, and molded at high temperatures. Install using national standard high-temperature resistant insulation brackets, with screw hole spacing for easy assembly and application by customers. The over temperature fuse terminals are securely connected without any detachment or looseness. Adopting a terminal silicone sheath with excellent high temperature resistance, corrosion resistance, and strong flame retardant properties. Adopting JST pure copper STO-61T-250N pressure terminals imported from Japan. The wiring harness is made of high-temperature resistant (300 °) polytetrafluoroethylene braided wire, which is securely installed at the terminal post. During wiring, the wiring harness is ensured to be intact, avoiding the risk of detachment and leakage.

PTC heaters have advantages that traditional heating components cannot compare with, such as constant temperature heating, no open flame (no redness), high heat conversion rate, minimal influence from power supply voltage, and long natural life. They are increasingly favored by R&D engineers in the application of electric heaters!

Product Features

Has automatic constant temperature characteristics; Its biggest highlight lies in its safety performance. When it reaches a certain temperature after being powered on, its resistance increases sharply. At this time, its heating power will sharply decrease and almost stop heating. After a period of time, when the temperature drops below this value due to heat dissipation, the resistance drops sharply again and continues to heat to maintain the temperature.

Product advantages

PTC ceramic heaters save costs and have a long lifespan.

It can control the heating of the heater without the need for specialized temperature controllers and temperature sensors such as resistance thermocouples for feedback. Its temperature regulation relies on its own material properties, making the product have a much longer service life than other heaters. Under normal environmental conditions, the service life can reach more than 10 years. A series of advantages that other traditional electric heating devices cannot match, such as no oxygen consumption, high safety performance, easy adjustment of heat generation, and minimal impact from power supply voltage fluctuations.

2. PTC ceramic heater is safe, green and environmentally friendly.

The design heating temperature of the heater body is below 260 degrees Celsius, and there will be no safety hazards such as burns or fires caused by the "red" or "burning" phenomenon on the surface of electric heating tubes and wires under any use.

3. PTC ceramic heaters save energy.

PTC heaters and traditional heaters consume the same amount of electricity at the same power, but due to the higher efficiency of converting PTC electrical energy into thermal energy compared to traditional heaters, more thermal energy is generated. Conversely, when generating the same amount of thermal energy, traditional heaters consume more electrical energy than PTC heaters, which means PTC ceramic heaters save energy.

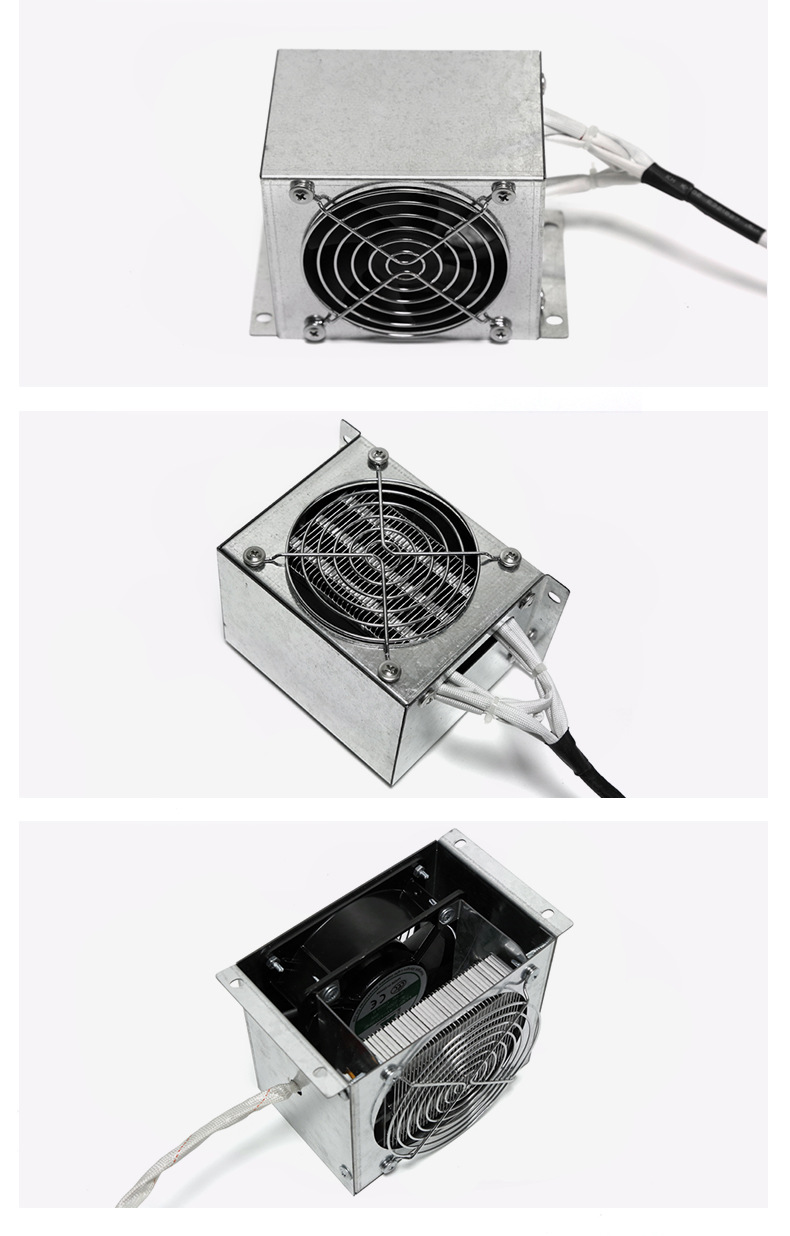

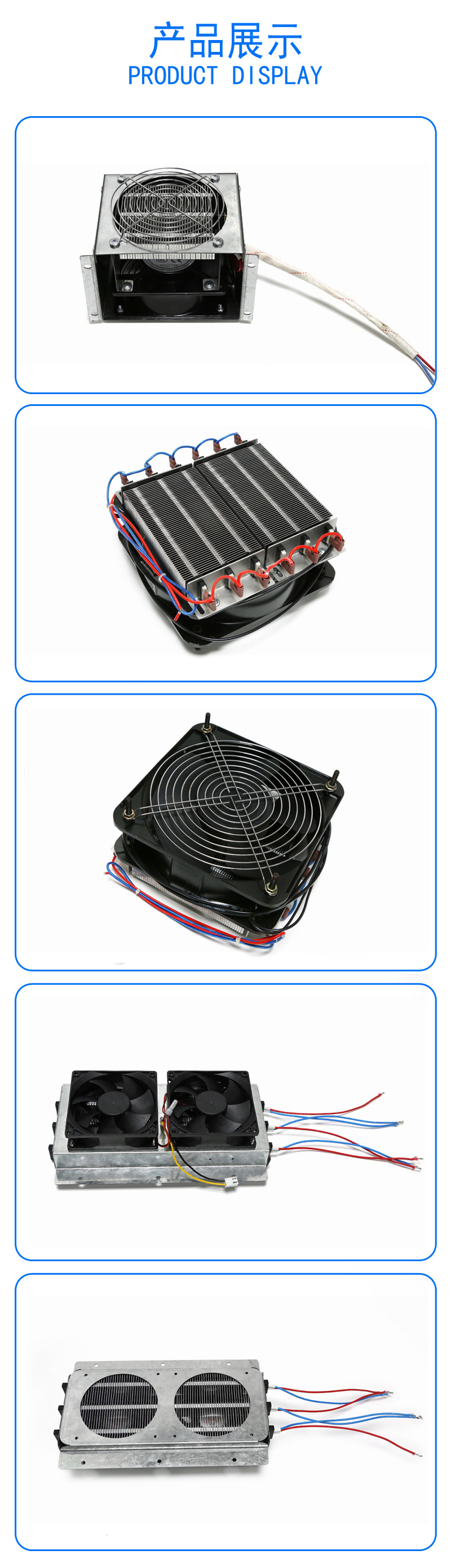

Photos
