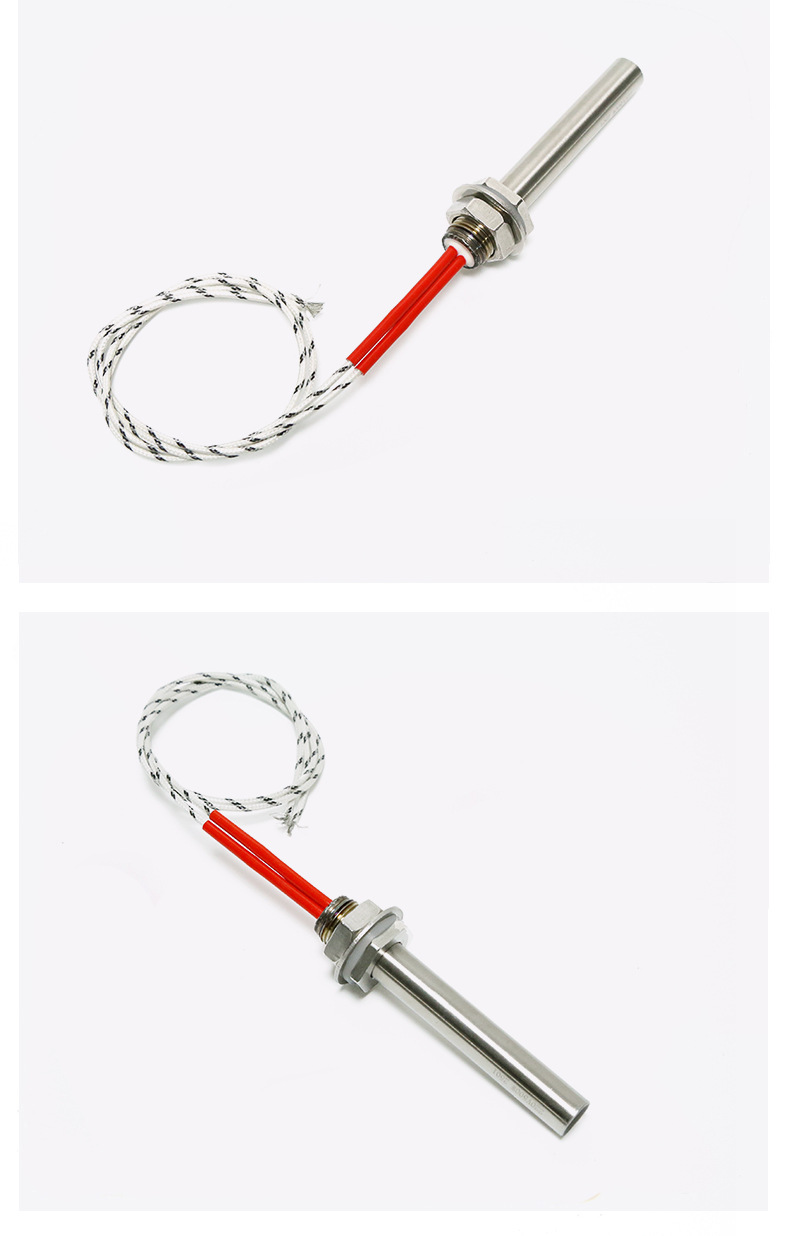

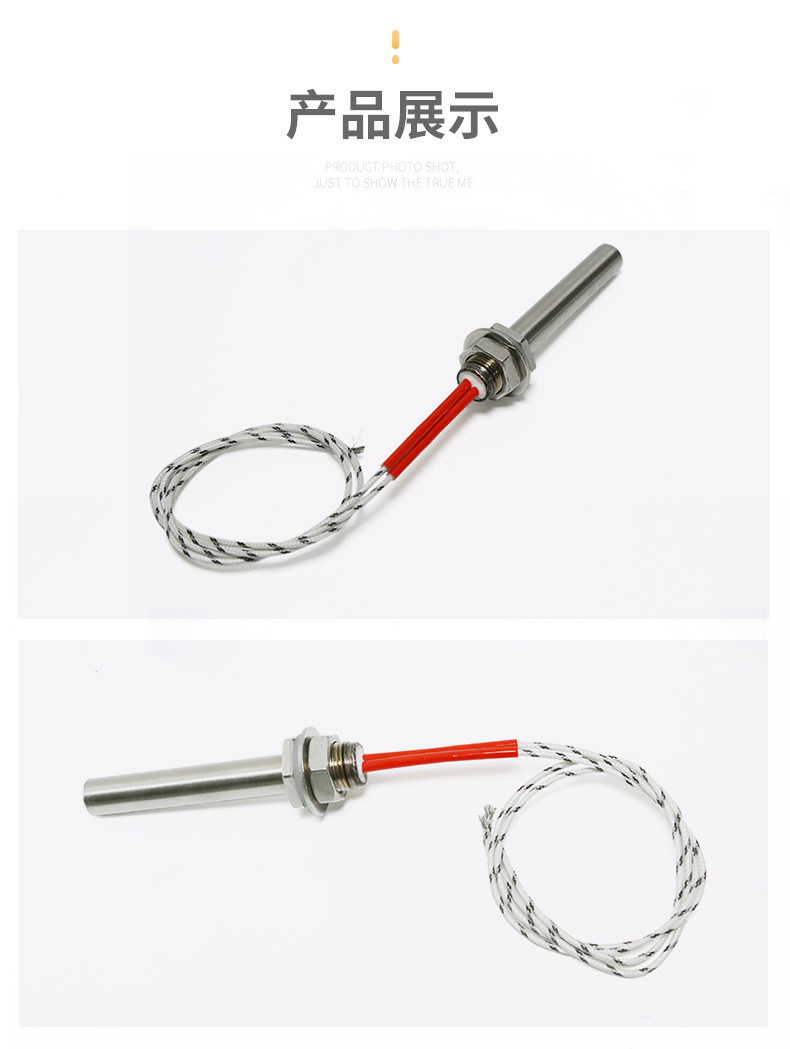

Immersion Liquid Cylindrical Tubular Stainless Steel Tube Constant Temperature PTC Heater Thermistor Heating Element With Thread

Application of PTC heating element

Used for heating water, PTC heating elements are attached to the bottom of water containers, immersed in water, or water passes through holes in the heating element to achieve heating purposes. It can be used for electric boilers, underfloor heating, room heating, showering, solar water heater auxiliary heating, solar panel water heater heating, heat pump (air energy) water heater auxiliary heating, bath, hot spring water, foot bath heating and insulation, hand washing, vegetable washing, dishwashing water heating, sour milk, natto fermentation, beverage, tea, wine, milk insulation and heating, steam generation, sauna steam, steam disinfection, etc. Used for heating electroplating tanks, greatly improving the lifespan of heating tubes. Used for heating water heaters, it can prevent dry burning, resist scale, and has a long service life. It can also be used for heating engine oil, diesel, gasoline, or other liquids. When using PTC to heat flammable liquids, it is safe and reliable, and can avoid ignition.

Characteristics of PTC heater

Very low air resistance, long service life, no need for temperature controllers, no wear and tear on moving parts, no electrical noise. The higher the temperature, the higher the power efficiency, and it will not burn when in contact with paper, matches, or clothing.Immersion PTC liquid heater, cylindrical PTC heater, water heater, tubular constant temperature heater, PTC heating component, PTC for water heating
850W 1060W 1280W 1600W 2100W 3200W 50000W 4800W 75000W PTC heating component

Function

Usage precautions:
PTC is particularly suitable as a heating element for products with long lifespan and high safety, and generally does not require the addition of temperature protection components.
The heating power of PTC varies with different usage conditions. The higher the water temperature, the lower the heating power.
The higher the temperature of PTC heater during dry burning, the greater the power of boiling water. In order to achieve maximum power, PTC is generally selected with a dry firing temperature of 220-280 ℃. From the perspective of high safety and long lifespan, a lower dry burning temperature is required, but the heat dissipation area of PTC needs to be increased.
