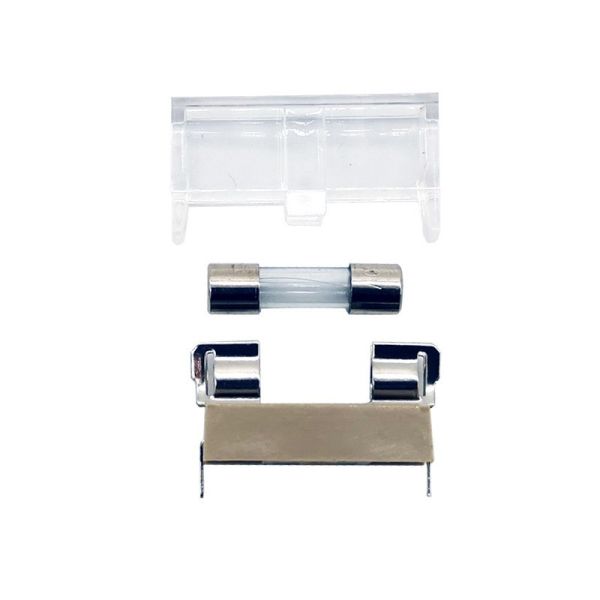

PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
Specifications
Model Number :
PTF-15
Type of fuse accessories :
fuse holder
Supply Ability :
100,000,000pcs per month
Certification :
ROHS
Mounting :
THT
Payment Terms :
T/T, Western Union
Price :
Negotiable
Rated voltage :
250VAC
MOQ :
1000PCS
Delivery Time :
1-2 Weeks
Maximum current :
6.3-15A
Place of Origin :
CHINA
Fuse size :
5x20mm
Packaging Details :
Bulk
Brand Name :
CNAMPFORT
Name :
Fuse Holder PTF-15
Description

PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse

PTF 15 Fuse holder
250 V / AC / 6,3 A / 1,6 W / THT / G-Fuse holder / IEC 60127-6

Fuse holders are available for device protection fuses and miniature fuses. Of course, the fuse holders comply with all RoHS / lead-free requirements, as well as the household appliance standard EN 60335-1 and are subject to the IEC 60127-6 standard. Thus, the AMPFORT fuse holders form a homogeneous assembly with the matching fuses. The holder group for miniature fuses is available not only in a typical THT design in round and square for different fuse pin lengths, but also in a reflow variant for automatic assembly and soldering processes in one pass. This variant enables the interchangeability of typical THT (solder-in) components. The performance data of the holders are matched to the characteristics of the miniature fuses, so that any combination (also from the protector portfolio) can be used without hesitation. The spring / holding forces of the contacts also provide sufficient contact reliability and component stability for applications in harsh environmental conditions.

Specification

Product Name 5x20mm fuse holder
Rated Current 6.3A-15A
Rated Voltage 250vac
Competitor's Part Number Littelfuse 646 Series / 64600001233 / 64800001009
Housing Thermoplastic UL 94 V1
Rated Power Acceptance 1.6W
Accessories Transparent Cover
Admissible ambient air temperature -30 °C to 85 °C

Photos

PCB Panel Mount Fuse Holder PTF-15 for 5x20mm 2AG Cartridge Fuse
