15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection
Specifications
Brand Name :
AMPFORT
Model Number :
AN175
Certification :
ROHS
Place of Origin :
DONGGUAN,GUANGDONG,CHINA
MOQ :
1000PCS
Price :
0.25 USD/PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10,000,000PCS PER MONTH
Delivery Time :
2 Weeks
Packaging Details :
Bulk package, 500pcs per bag
Name :
Polymer PTC Devices
Material :
H65 Brass
Solder :
Lead-free
Chip size :
15mm*5mm,R=0.5mm
Other name :
Copper Strap /Auto Motor PPTC
Operation temperature :
-40℃～85℃/125℃ production
Protection lifetime :
>2000 times
Voltage :
9～13.5V
Description

Chip Polymer PTC Devices PPTC Resettable Fuse For Overcurrent and Overtemperature Protection Of Motor

Features Of The Chip Polymer PTC Devices

* Provide dual protection for over-current & over-temperature generated after the motor stalling

* Protection lifetime is more than 2000 times

* Rapidly cool the motor after stalling protection

* Protection time can be adjusted and set according to the customers’ requirements

* Configuration and dimension can be customized according to the allowed motor inner space

* No electromagnetic noise

* Outstanding anti-vibration ability

* Operation temperature: -40℃～85℃/125℃ production.

Test Report Of The Chip Polymer PTC Devices AN175

Test Item Test Condition Standard Measured Value

Sample QTY

 Test Result
Exterior Visual inspection No visible scratches, exposed bottom, wrinkled skin and other phenomena. No visible scratches, exposed bottom, wrinkled skin and other phenomena. 8 OK
Rated zero-power resistance (Ω) Low resistance meterTH2511 0.055-0.075 0.055-0.075 8 OK
Stall current (seconds) 13.5V/9A ≥4 4-10 3 OK
Power frequency current capability 16V/40A Power on for 6 seconds, power off for 1 minute, cycle 20 times, no burning or cracking OK 3 OK
Size Measure with vernier calipers and micrometers that meet the accuracy requirements

15.65±0.3mm

4.4±0.1mm

7.4±0.1mm

15.3±0.15mm

1.7±0.2mm

 OK 3 OK
Operating Temperature -40℃--80℃

In conclusion:The sample passed the inspection and agreed to leave the factory.

Series Specification Of The Chip Polymer PTC Devices

15x5mm Chip Polymer PTC Resettable Fuse H65 Brass With Overcurrent Protection

Type Part No. IH(A) IT(A) Max Trip Current(A) Max Trip Time(s) Vmax(V) Imax(A) Pdtyp(W) Rmin(Ω) Rmax(Ω) R1max(Ω)
Auto Copper Strap LA-E1508 4 8 25 4~12 14 50 5 0.01 -- 0.02
Auto Copper Strap SA-A1508 4 8 15 4~25 16 50 4.5 0.02 -- 0.04
Auto Copper Strap LA-G1508 4 8 25 7~60 14 50 5 0.008 -- 0.016
Auto Copper Strap LA-F1508 4 8 25 7~15 14 50 5.5 0.008 -- 0.016
Auto Copper Strap LA-E1508 4 8 25 4~12 14 50 5 0.01 -- 0.02
Auto Copper Strap LA-D1508 4 8 20 7~30 14 50 5 0.01 -- 0.02
Auto Copper Strap LA-C1508 4 8 20 4~12 14 50 5 0.01 -- 0.02
Auto Copper Strap LA-B1508 4 8 15 7~30 16 50 5 0.015 -- 0.03
Auto Copper Strap LA-A1508 4 8 15 4~12 16 50 5.5 0.01 -- 0.02
Auto Copper Strap LA-A1308 4 8 20 5~30 14 50 5.5 0.01 -- 0.02
Auto Copper Strap LA-A2111 6 12 30 5~30 14 50 6 0.01 -- 0.02

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.
IT=Trip current: minimum current at which the device will always trip at 25℃ still air.
Imax=Maximum fault current device can withstand without damage at rated voltage.
Max Time-to-trip=Maximum time to trip(s) at assigned current.
Pd max=Maximum power dissipation: maximum power dissipated by the device when in state air environment.
Rmin=Minimum device resistance at 25℃ prior to tripping.
Rmax=Maximum device resistance at 25℃ prior to tripping.
R1max=Maximum device resistance at 25℃, of device one hour after being tripped the first time.

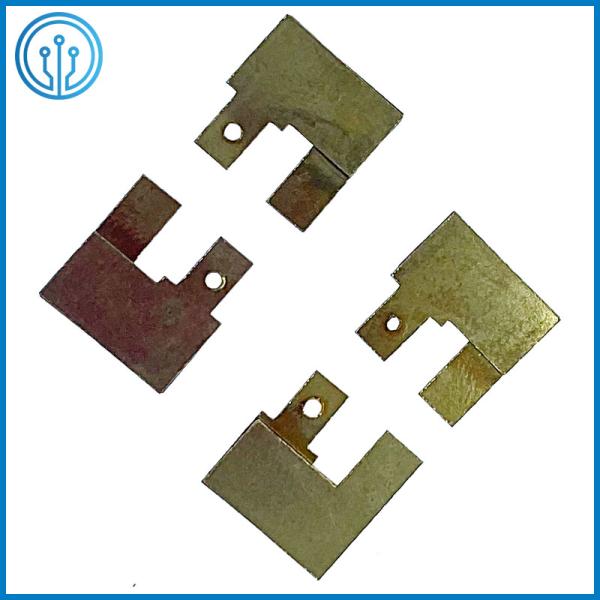

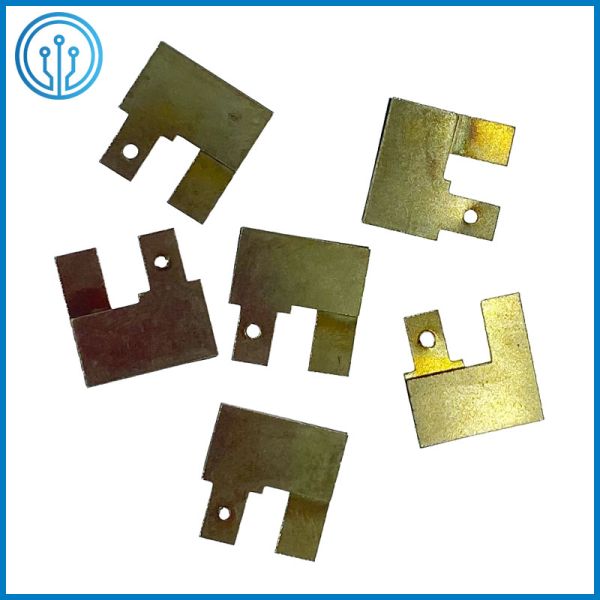

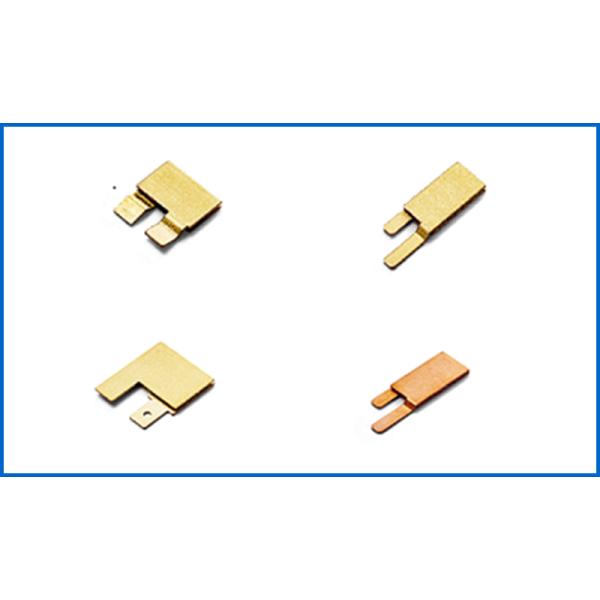

Product Photos Of The Chip Polymer PTC Devices
