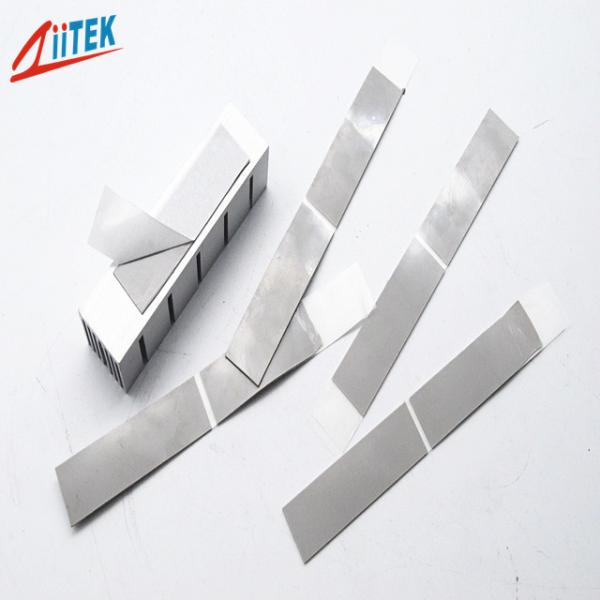

High Performance 1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment
High Performance 1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment
High Performance 1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment
High Performance 1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-18-11US
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Product ame :
High Performance1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment
Keywords :
Silicone Thermal Pad
Hardness :
65/20 Shore 00
Specific Gravity :
2.5g/cm³
Dielectric Breakdown Voltage :
>5500 VAC
Thermal conductivity :
1.8W/m-K
Color :
Dark Gray
Thickness :
0.01~0.2inch(0.25~5.0 mmT)
Application :
Telecommunication Equipment
Description

High Performance1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment

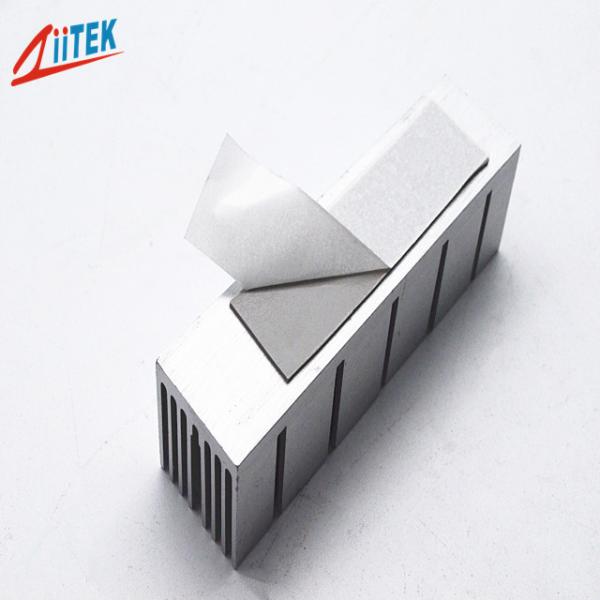

The TIF®100-18-11US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.


Features:

> Good thermal conductivty:1.8W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options


Applications:

> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

> Display card
> Mainboard/mother board

Typical Properties of TIF®100-18-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.5 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 1.8 ASTM D5470
1.8 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications

Standard Thickness:0.010" (0.25 mm)-0.20" (5.00 mm) with increments of 0.01" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

High Performance 1.8W Thermal Conductive Pad Sheet For Heat Silicone Thermal Heating Pad For Telecommunication Equipment

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
