Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Specifications
Brand Name :
Ziitek
Model Number :
TIS800K
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/pcs
Delivery Time :
3-6 work days
Packaging Details :
24*13*12cm cartons
Product name :
Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Keyword :
Electrical Insulating Sheet
Recommended Operating Temperature :
-45 to 160℃
Compliance :
UL & RoHS
Color :
Light Amber
Feature :
Relatively soft surface, good thermal conductivit
Thermal conductivity :
1.3W/mK
Application :
IGBT Mosfet
Description

Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

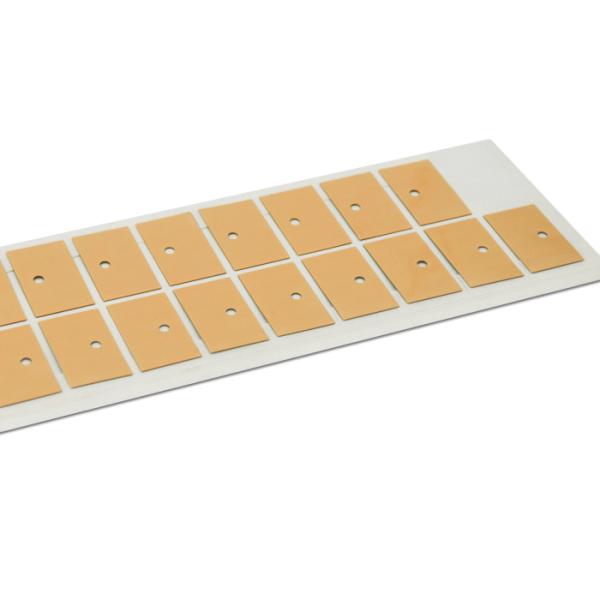

TIS®800K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance. The TIS®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.

Features:


>Relatively soft surface,good thermal conductivity
>High voltage insulation, low thermal resistance
>Tear-resistant and puncture-resistant


Applications:


>Power supplies and automotive battery packs
>Power semiconductor devices
>Audio-visual products
>Charging stations

Product Specification
Standard Thicknesses

0.006inch~0.018 (0.15~0.45mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
