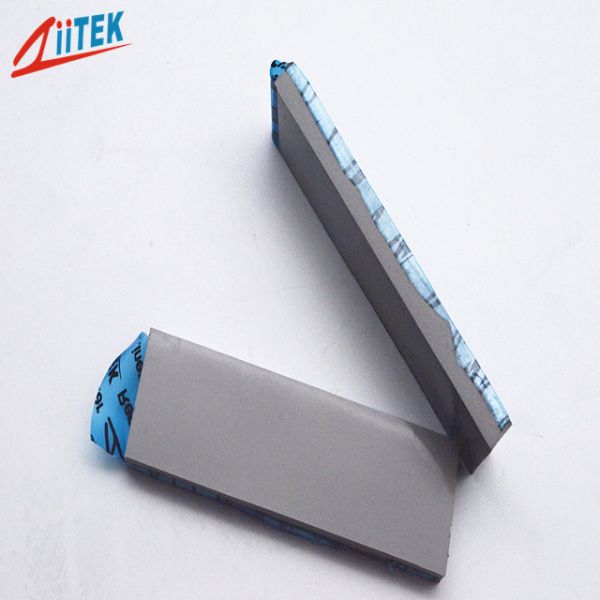

1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad
1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad
1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad
1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad
Specifications
Brand Name :
Ziitek
Model Number :
TIF760PES thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
Name :
1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad
Specific gravity :
3.2 g/cm³
Hardness :
10
Keyword :
Thermal Silicone Pad
Thickness :
1.5mmT
Part number :
TIF760PES
Description

1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad

Company Profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

TIF700PES-(TDS-EN-REV04).pdf

1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad

Ziitek TIF760PES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

< Good thermal
< Hardness: 10
< Colour: gray

< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance

Applications

> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF760PES
Product Name TIF760PES Series
Colour Gray
Construction & Compostion Ceramic filled silicone elastomer
Specific gravity

3.2 g/cc
Thickness 1.5mmT
Hardness(Shore 00) 10
Dielectric constant@1MHz 5~6 MHz
Continuos Use Temp -40 to 160℃
Dielectric Breakdown Voltage >5000 VAC
Thermal conductivity 7.5W/mK
Flame Rating(no.E331100) V-0

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

1.5MM Silicone Conductive Cooling Interface Material Soft Gpu Cpu Led Thermal Pad

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
