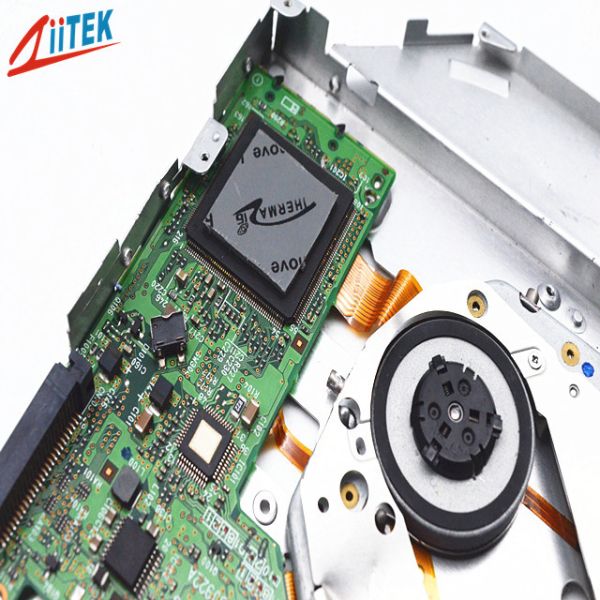

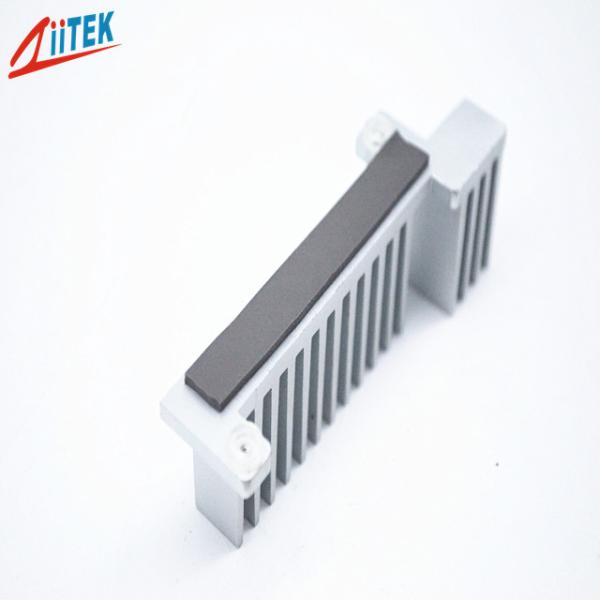

High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling
High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling
High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling
High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling
Specifications
Brand Name :
Ziitek
Model Number :
TIF500-65-11U
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling
Sample :
Sample free
Breakdown Voltage（V/mm） :
≥5500
Thickness range :
0.010"~0.200"(0.25mm~5.0mm)
Application :
Computer CPU/GPU Cooling
Fire rating :
94 V0
Color :
Dark Gray
Thermal conductivity :
6.5W/m-K
Dielectric Constant @ 1MHz :
7.0MHz
Keywords :
Thermal Gap Pad
Description

High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIF®500-65-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features

> High thermal conductivity
> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)

> Photovoltaic
> Signal communication
> New energy vehicle

> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF®500-65-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥ 5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 6.5 ASTM D5470
6.5 ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

High Thermal Conductivity 6.5W/MK Thermal GAP PAD Materials For Computer CPU/GPU Cooling

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
