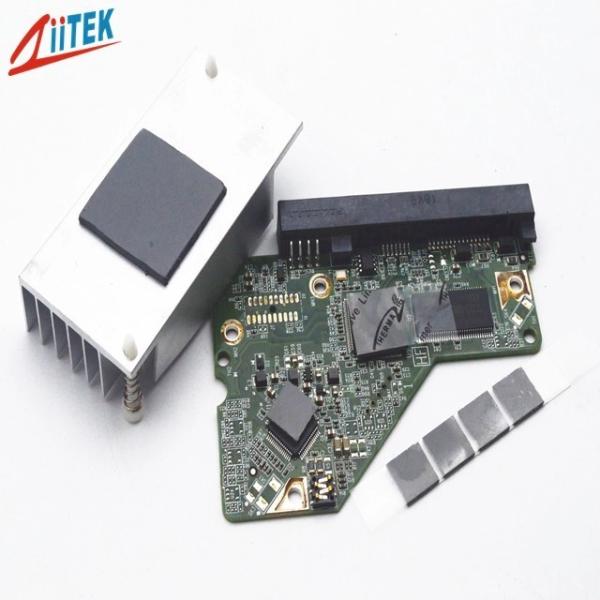

6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
Specifications
Brand Name :
Ziitek
Model Number :
TIF500-65-11ES
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products
Sample :
Sample free
Breakdown Voltage（V/mm） :
≥5500
Fire rating :
94 V0
Color :
Dark Gray
Thermal conductivity :
6.5W/m-K
Keywords :
Thermal GAP PAD Materials
Dielectric Constant @ 1MHz :
7.0MHz
Thickness range :
0.020"~0.200"(0.50mm~5.0mm)
Application :
Network Communication Products cooling
Description

6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products

Company Profile

A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.

The TIF®500-65-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.

Features

> High thermal conductivity
> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications


> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)

> Photovoltaic
> Signal communication
> New energy vehicle

Typical Properties of TIF®500-65-11ES Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.020~0.030 0.040~0.200 ASTM D374
(0.50~0.75) (1.00~5.00)
Hardness 20 Shore 00 10 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥ 5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 6.5 ASTM D5470
6.5 ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.020" (0.50 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

6.5W/MK Silicone-Based Thermal Management Thermal GAP PAD Materials For Network Communication Products

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
