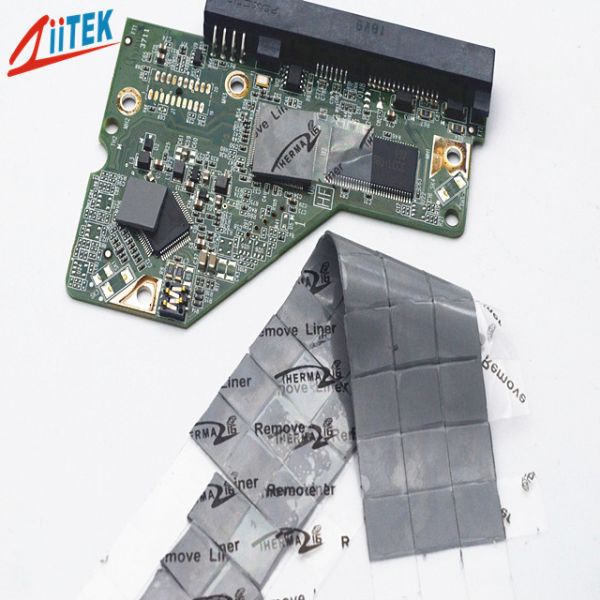

Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material
Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material
Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material
Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material
Specifications
Brand Name :
Ziitek
Model Number :
TIF500-50-10U
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material
Application :
Gpu Cpu Led Heat Dissipation
Construction & Compostion: :
Ceramic Filled Silicone Elastomer
Hardness :
27 Shore 00
Density :
3.4 g/cm³
Thermal conductivity :
5.0W/m-K
Color :
Gray
Thickness Range :
0.25~5.0mm /(0.010~0.20 inch)
Keywords :
Soft thermal pads
Description

Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material

Products Description

TIF®500-50-10US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.


Features:

> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives

> Good insulation performance
> RoHS compliant
> UL recognized


Applications:

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power

Typical Properties of TIF®500-50-10U Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.5) (0.75~5.0)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 5.0 W/m-K ASTM D5470
5.0 W/m-K ISO22007

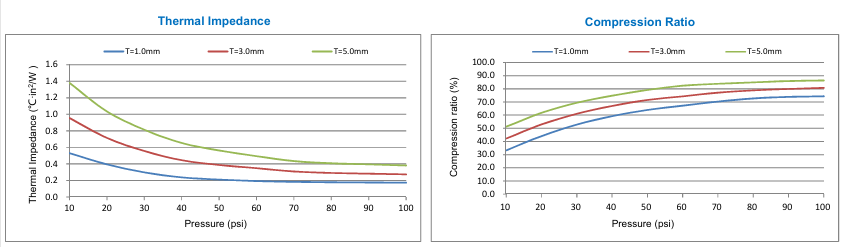

Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Soft Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Interface Material

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
