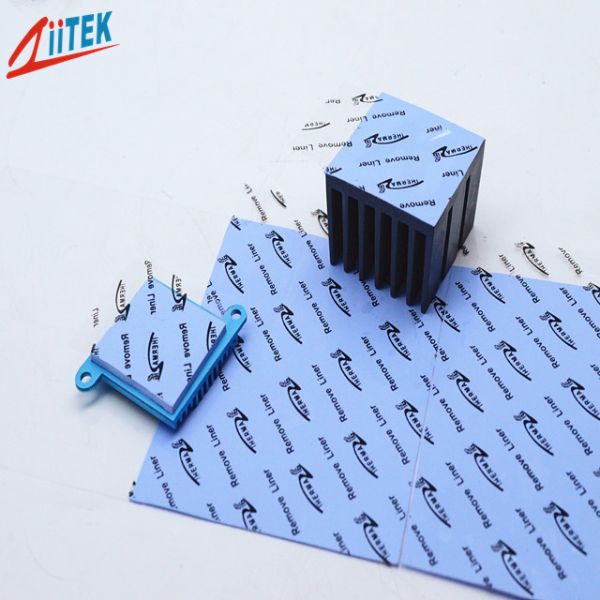

Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Specifications
Hardness :
65/27 shore 00
Model Number :
TIF100-20-05U
Packaging Details :
24*13*12cm cartons
Construction :
Ceramic filled silicone elastomer
Payment Terms :
T/T
Color :
Blue
Place of Origin :
China
Thermal conductivity :
2.0W/mK
Sample :
Free
MOQ :
1000 pcs
Delivery Time :
3-8 work days
Application :
For Heat Transfer In AI Processors AI Servers
Price :
0.1-10 USD/PCS
Keywords :
Thermal Gap Filler
Certification :
UL
Thickness :
0.010~0.200"(0.25~5.0mm)
Supply Ability :
100000pcs/month
Products name :
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Brand Name :
Ziitek
Description
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet
Operating Temperature Range: -40°C to 200°C
Product Overview
TIF®100-20-05U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Key Features
  • Good thermal conductivity
  • Ultra-soft and highly conformable
  • Self-adhesive without the need for additional surface adhesive
  • Good insulation performance
  • RoHS compliant
  • UL recognized
Applications
  • Home appliance industry
  • Power module
  • Wearable devices
  • Solar photovoltaic panels
  • LED lighting fixtures
  • Routers
  • Medical devices
  • Audio electronic products
  • Unmanned aerial vehicles (UAV)
  • Photovoltaic systems
  • Signal communication
  • New energy vehicles
  • Motherboard chip
  • Radiator
  • AI Processors & AI Servers
Technical Specifications of TIF®100-20-05U Series
Property Value Test Method
Color Blue Visual
Construction Ceramic filled silicone elastomer -
Density (g/cm³) 2.9 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 (0.25~0.50)
0.030~0.200 (0.75~5.00)		 ASTM D374
Hardness (Shore 00) 65 | 27 ASTM 2240
Continuous Use Temp -40 to 200℃ -
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 4.9 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 2.0 ASTM D5470
ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Ultra Soft Naturally Tacky 2.0W/mK Blue Thermal Gap Filler Silicone Rubber Sheet Operating Temperature Range 40 To 200 Degrees Celsius
Company Advantages
  • Our value message is "Do it right the First time, total quality control"
  • Our core competency is thermal conductive interface materials
  • Competitive advantage products
  • Confidentiality agreement and Business Secret Contract
  • Free sample offer
  • Quality assurance contract
Frequently Asked Questions
Q: Do you accept custom orders?
A: Yes, we welcome custom orders. Our customization options include dimensions, shape, color, and coating on one or both sides with adhesive or fiberglass. To place a custom order, please provide a drawing or detailed specifications.
Q: How do I request customized samples?
A: To request samples, you can leave us a message on our website, or contact us via email or phone.
Q: What's the thermal conductivity test method given on the data sheet?
A: All data in the sheet are actual tested results. Hot Disk and ASTM D5470 methods are utilized to test thermal conductivity.
