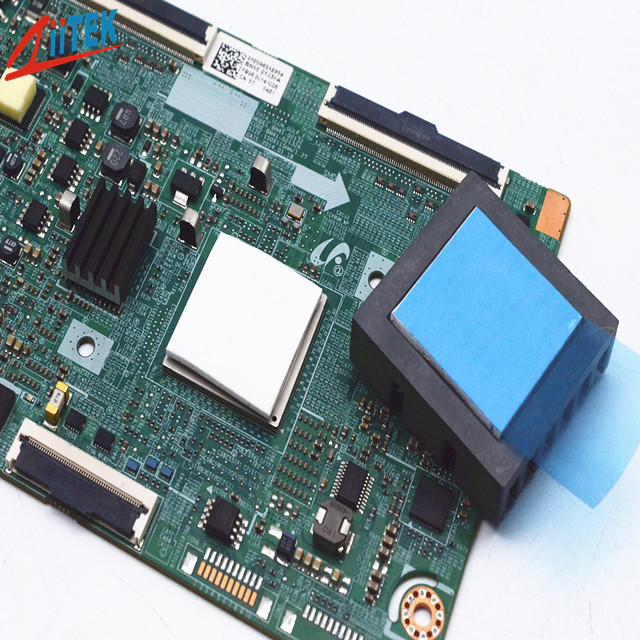

Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Specifications
Model Number :
TIF100L 3040-06
Density :
3.0 g/cm³
Hardness :
65/40 Shore 00
Application :
Thermal Management In Electronic Devices
Place of Origin :
China
Payment Terms :
T/T
Thickness :
0.010"(0.25mm)~0.200"(5.0mm)
Color :
White
MOQ :
1000 pcs
Delivery Time :
3-8 work days
Thermal conductive :
3.0 W/mK
Certification :
UL
Price :
0.1-10 USD/PCS
Construction :
Ceramic filled silicone elastomer
Packaging Details :
24*13*12cm carton
Supply Ability :
100000pcs/month
Products name :
Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Brand Name :
Ziitek
Keywords :
Thermal Gap Filler Pads
Description
Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Company Profile

Ziitek is a high-tech enterprise dedicated to the research, development, manufacturing, and sales of thermal interface materials (TIMs). With extensive experience in this field, we provide the latest, most effective thermal management solutions. Our facility features advanced production equipment, comprehensive testing capabilities, and fully automatic coating production lines for manufacturing high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products comply with UL94 V-0, SGS, and ROHS standards.

Product Description

The TIF®100L 3040-06 Series is an ultra-low silicon oxygen volatilization thermal pad specifically designed for thermal management in optical and high-precision electronic devices. This material balances efficient thermal conductivity with extremely low precipitation of condensable volatile substances, effectively preventing contamination of sensitive optical components and precision circuits. The material features excellent flexibility and elasticity, enabling complete filling of micro gaps between heating interfaces and heat dissipation structures, significantly reducing contact thermal resistance, improving thermal conductivity efficiency, and ensuring reliability and extended service life of electronic components during long-term operation.

Key Features
  • Ultra low volatility of siloxane
  • Good thermal conductivity
  • Excellent weather resistance and aging resistance
  • Highly compressible, easy to install and operate
  • Good insulation performance
Applications
  • Motor Controller (MCU)
  • Airborne computer
  • Machine vision camera
  • High performance ASIC chip
  • Central control screen
Typical Properties of TIF®100L 3040-06 Series
Property Value Test Method
Color White Visual
Construction Ceramic filled silicone elastomer ******
Density (g/cm³) 3.0 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 | 40 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Volume Resistivity (Ohm-meter) ＞1.0×10¹² ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity (W/m-K) 3.0 ASTM D5470
ISO22007
Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Thermal Gap Filler Pads Featuring Excellent Elasticity And Low Volatility For Thermal Management In Electronic Devices
Ordering Process

Q: How do I place an order?

A:

  1. Click the "Send messages" button to continue with the process
  2. Fill out the message form by entering a subject line and message to us
  3. Include any questions you might have about the products as well as your purchase requests
  4. Click the "Send" button when you are finished to complete the process and send your message to us
  5. We will reply to you as soon as possible via Email or online
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: We are a manufacturer in China.

Q: How long is your delivery time?

A: Generally 3-7 work days if goods are in stock, or 7-10 work days if goods are not in stock, depending on quantity.

Q: Do you provide samples? Is it free or extra cost?

A: Yes, we offer samples free of charge.
