Self-adhesive Properties 94 V-0 Thermal Conductive Silicone Pad For Medical Devices And Food Machineryt

Company Profile

Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable. Mainly engaged in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. The core explosive heating plate is widely recognized by the market. Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.

Products description

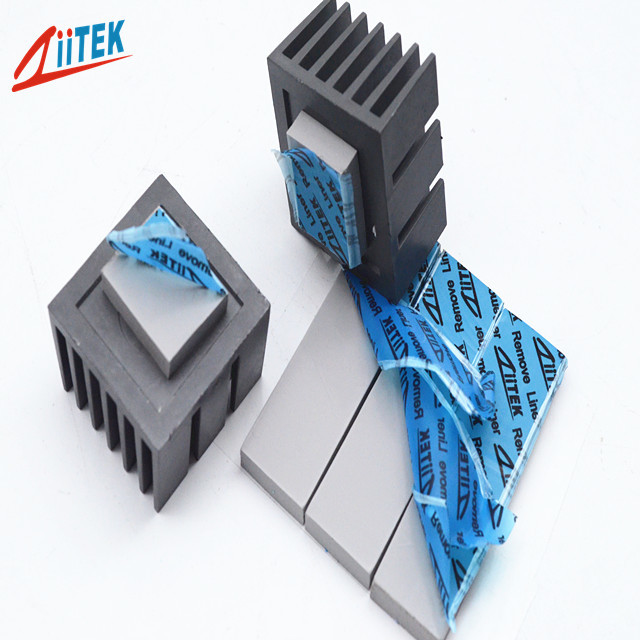

The TIF^®1100-02F Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Available in varies thicknesses 1.5W/Mk
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance

Applications

> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

Product Specification

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
