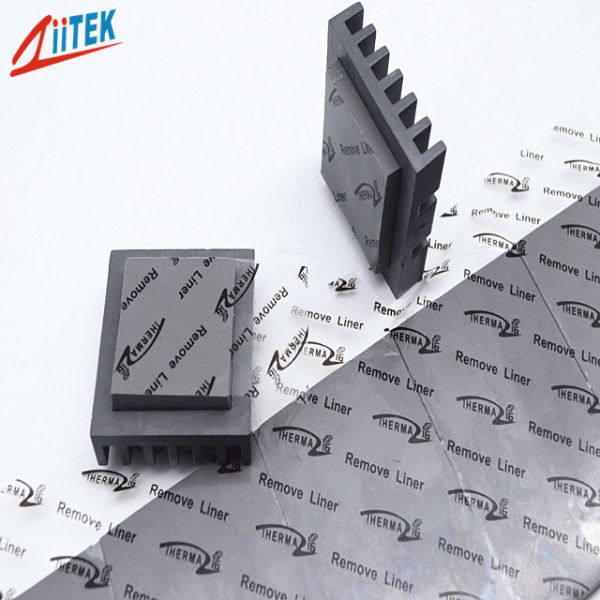

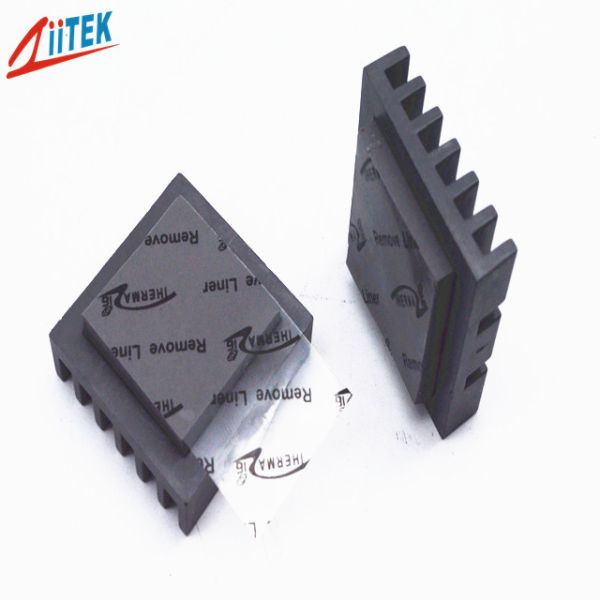

High-efficiency 8.0W/mK Thermal Pad with UL 94 V-0 Flame Rating and 0.50~5.0mm Thickness Range for Heat Sinks
High-efficiency 8.0W/mK Thermal Pad with UL 94 V-0 Flame Rating and 0.50~5.0mm Thickness Range for Heat Sinks
High-efficiency 8.0W/mK Thermal Pad with UL 94 V-0 Flame Rating and 0.50~5.0mm Thickness Range for Heat Sinks
High-efficiency 8.0W/mK Thermal Pad with UL 94 V-0 Flame Rating and 0.50~5.0mm Thickness Range for Heat Sinks
Specifications
Dielectric Constant @1MHz :
6.5
Thermal conductivity :
8.0W/m-K
Brand Name :
Ziitek
Model Number :
TIF100 H80-11E
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Hardness :
60/35 Shore 00
Breakdown Voltage(V/mm) :
>5500
Apllication :
To Reduce Interfacial Thermal Resistance Between Heat Sources And Heat Sinks
Thickness range :
0.50~5.0mmT
Fire rating :
UL 94 V-0
Keywords :
Thermal Pad
Products name :
High-efficiency 8.0W/mK Thermal Pad Designed To Reduce Interfacial Thermal Resistance Between Heat Sources And Heat Sinks
Description
High-efficiency 8.0W/mK Thermal Pad
Designed to reduce interfacial thermal resistance between heat sources and heat sinks
Company Profile
Ziitek is a high-tech enterprise dedicated to the R&D, manufacturing, and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective thermal management solutions. Our advanced production equipment, full testing capabilities, and fully automatic coating production lines support high-performance thermal products including thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products are UL94 V-0, SGS, and ROHS compliant.
Product Description
The TIF®100 H80-11E Series is a high-end compressible thermal pad designed to meet top-level cooling requirements while maintaining excellent assembly workmanship. Through innovative material formulation, it achieves an ideal combination of ultra-high thermal conductivity and moderate hardness. This unique performance balance allows efficient handling of cooling challenges from ultra-high heat flux densities while providing good mechanical strength and compressibility for easy processing and installation.
Key Features
  • Excellent thermal conductivity: 8.0W/mK
  • Available in various thicknesses
  • Broad range of hardness options
  • Outstanding thermal performance
  • High tack surface reduces contact resistance
  • RoHS compliant
  • UL recognized
Applications
  • Automotive engine control units
  • Telecommunication hardware
  • Handheld portable electronics
  • Semiconductor automated test equipment (ATE)
  • CPU and display cards
  • Motherboards and notebooks
  • Power supplies
  • Heat pipe thermal solutions
  • Memory modules
  • Mass storage devices
  • Automotive electronics
Technical Specifications
Property Value Test Method
Color Dark Gray Visual
Construction & Composition Ceramic filled silicone elastomer ******
Density (g/cm³) 3.5 ASTM D792
Thickness Range (inch/mm) 0.020~0.030 | 0.040~0.200
0.50~0.75 | 1.00~5.00		 ASTM D374
Hardness (Shore 00) 60 | 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1HMz 6.5 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Flame Rating V-0 UL 94 (E331100)
Thermal Conductivity 8.0 W/m-K ASTM D5470 / ISO22007
Product Specifications
Standard Thickness: 0.020" (0.50 mm) ~ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening), A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
High-efficiency 8.0W/mK Thermal Pad with UL 94 V-0 Flame Rating and 0.50~5.0mm Thickness Range for Heat Sinks
Our Services
Online service available 12 hours daily with fast inquiry response
Working hours: 8:00am - 5:30pm, Monday to Saturday (UTC+8)
Well-trained, experienced English-speaking staff
Standard export carton or customized packaging
Free samples available
Comprehensive after-sales service and support
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer based in China.
Q: How long is your delivery time?
A: Generally 3-7 work days for in-stock items, or 7-10 work days for custom orders depending on quantity.
Q: Do you provide samples? Are they free?
A: Yes, we offer samples free of charge.
Q: What thermal conductivity test method was used?
A: A test fixture meeting ASTM D5470 specifications was utilized.
Q: Is GAP PAD offered with an adhesive?
A: Most thermal gap pads feature double-sided natural inherent tack. Non-stick surfaces can be treated according to customer requirements.
