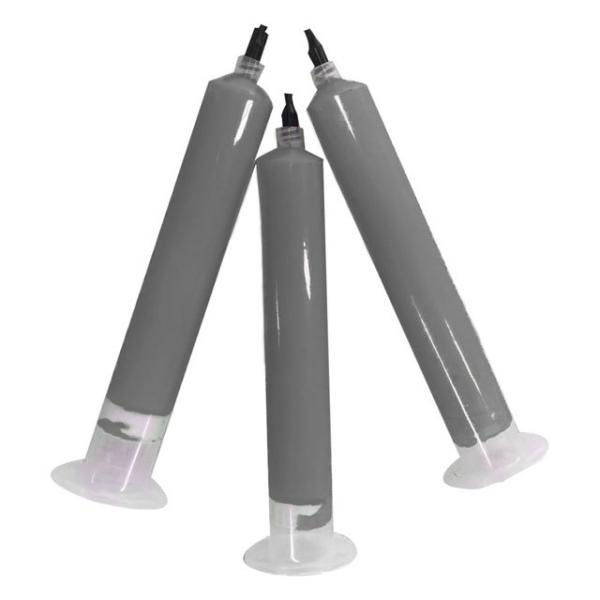

Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe
Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe
Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe
Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe
Specifications
Brand Name :
Ziitek
Model Number :
TIF045-11
Certification :
UL
Place of Origin :
China
MOQ :
1000tube
Price :
0.1-100USD/KG
Payment Terms :
T/T
Supply Ability :
10000KG/MONTH
Delivery Time :
3-8 WORK DAYS
Packaging Details :
30cc/PCS
Products name :
Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe
Application :
Micro Heat Pipe
Color :
Gray
Package :
30cc/Pcs
Flame rating :
UL 94 V-0
Keywords :
Thermal Conductive Gel
Density（g/cc） :
3.20
Recommended operating Temp(℃） :
-45~200
Description

Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Products description

TIF045-11 is a soft silicone gel-based gap filler pad,formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF045-11 has a higher viscosity, which effectively prevents filer separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting. and other high-power electronic components.

Feature

>Thermal conductivity: 4.5 W/mK
>Soft, very low compression
>Low thermal impedance
>Operate automatically
>Proven long-term reliability

Application

>Heat-sink & frame
>LED backlight module, LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controller
>Telecom industry
>Semiconductor automatic laboratory equipment

TIF®045-11 Typical Properties
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 40 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.20g/c ASTM D297
Thermal conductivity 4.5W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.077 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.068 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

Gray Thermal Conductive Gel Super High Thermal Conductivity Thermal Conductive Gel 4.5W Silica Gel For Micro Heat Pipe

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

FAQ:

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
