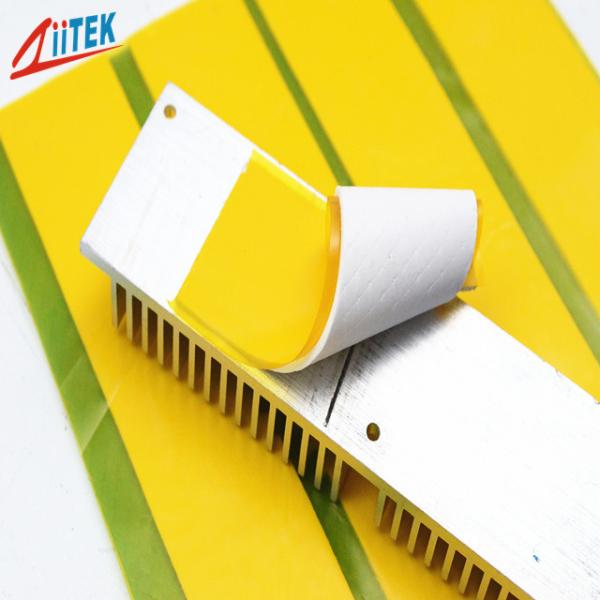

0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
Specifications
Brand Name :
Ziitek
Model Number :
TIF110-30-06UF thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
color :
White
Name :
0.25mmT High durability silicone pads for Heat pipe thermal solutions，5.0 MHz
keyword :
Thermal Gap Pad
Thickness :
0.25mmT
Specific gravity :
3.0 g/cc
Construction & Compostion :
Ceramic filled silicone elastomer
Description

0.25mmT High durability silicone pads for Heat pipe thermal solutions,5.0 MHz

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

TIF100-30-06UF-Series-Datasheet-.pdf

Ziitek TIF110-30-06UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

<Good thermal conductive:3.0 W/mK
<Thickness: 0.25mmT
<Hardness:75±5 Shore 00
<Colour: White

<UL recognized
<Fiberglass reinforced for puncture, shear and tear resistance
<Easy release construction

Applications

<mainboard/mother board

<notebook

<power supply

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

Typical Properties of TIF110-30-06UF
Product Name

TIF110-30-06UF Series
Colour
 White
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity
3.0 g/cc

Thickness
0.25mmT
Hardness
75±5 Shore 00
Dielectric constant@1MHz
5.0 MHz
Continuos Use Temp
-40 to 160℃

Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistivity

2.3*1013 Ohm-cm

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions



Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions

FAQ

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
