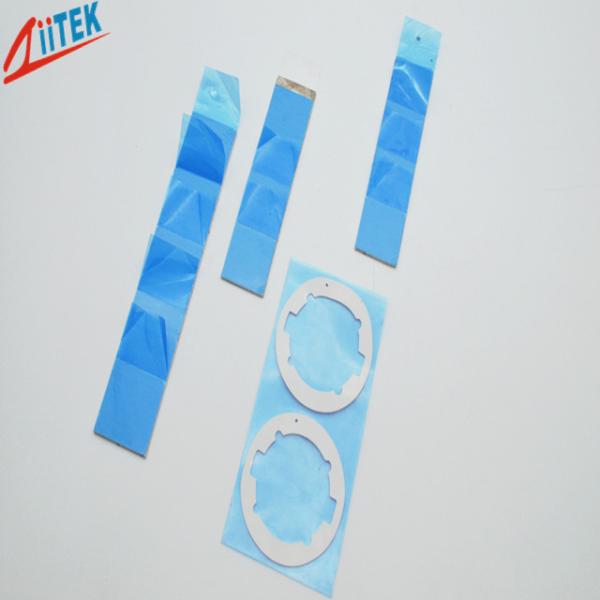

4.5mmt Thermal Conductive Silicone Pad For Led Controller
4.5mmt Thermal Conductive Silicone Pad For Led Controller
4.5mmt Thermal Conductive Silicone Pad For Led Controller
4.5mmt Thermal Conductive Silicone Pad For Led Controller
Specifications
Brand Name :
Ziitek
Model Number :
TIF1180-30-06US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
hardness :
18 shore00
KEYWORD :
white silicone rubber pads
color :
white
part number :
TIF1180-30-06US
material :
silicone
thermal conductive :
3.0W/mK
Description

Outstanding thermal performance Available in varies thicknesses silicone pads for LED Controller,4.5mmT

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.


TIF100-30-06US.pdf

TIF1180-30-06US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
<Good thermal conductive:3.0W/mK
<Thickness:4.5mmT
<Hardness:18 Shore 00
<Colour: white

<RoHS compliant

<UL recognized

<Fiberglass reinforced for puncture, shear and tear resistance

Applications

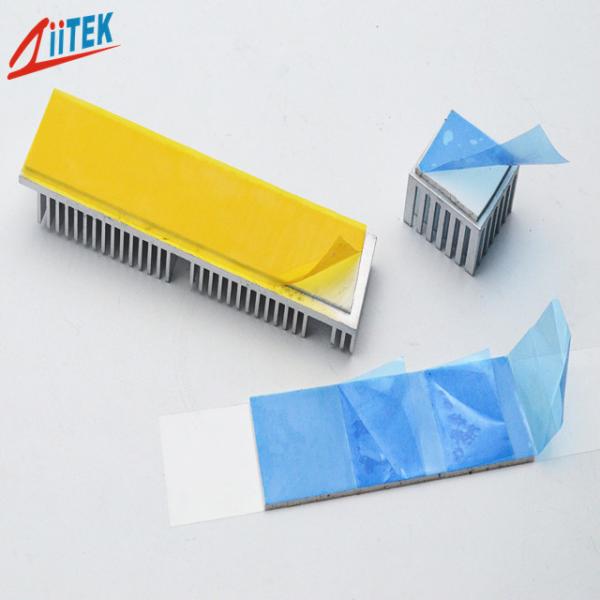

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions


Typical Properties of TIF1180-30-06US
Product Name

TIF1180-30-06US Series
Colour
 white
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity
3.0 g/cc

Thickness
4.5mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

4.5mmt Thermal Conductive Silicone Pad For Led Controller

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

4.5mmt Thermal Conductive Silicone Pad For Led Controller

FAQ

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Product tags

heatsink cooling thermal conductive silicone pad

,

thermal conductive silicone pad

,

thermal conductive pad 2mm
