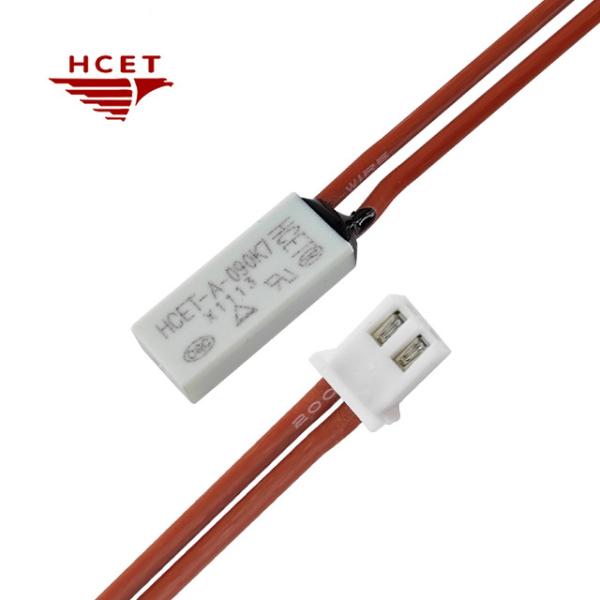

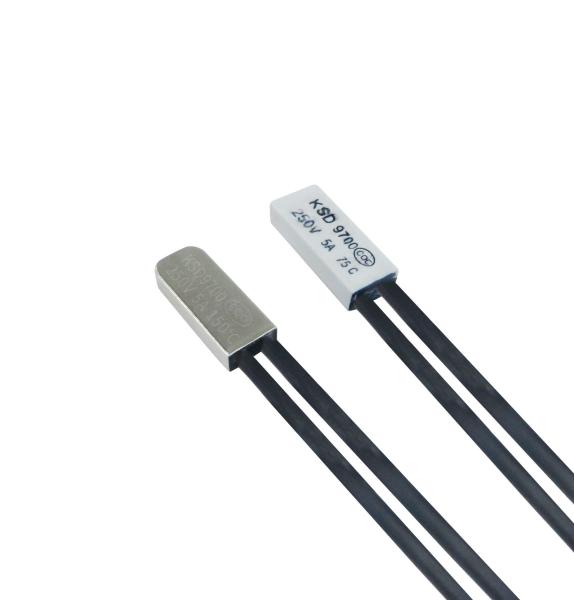

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
Specifications
Brand Name :
HCET
Model Number :
HCET-A5
Certification :
CQC, UL, TUV, CE, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
5000 pcs per carton
Product name :
TB05/KSD9700 thermal switch
Material :
plastic or metal
Temperature range :
35℃~160C
Tolerance :
±3℃,±5℃
Voltage :
250V
Current :
5A/10A
Application :
Motors/Appliances/Lighting
Description

HCET KSD9700/TB05 Bimetal Thermal Overload Switch Motor Protector Micro Temperature Cutoff for Motors/Appliances/Lighting


The HCET KSD9700/TB05 is a precision-engineered bimetal thermal overload switch designed for critical protection in motors, home appliances, and industrial equipment. With a compact design (TB05 series) and dual sensitivity to temperature + current, it offers reliable circuit interruption at calibrated temperatures from 35°C to 160°C (±3°C/±5°C tolerance). Rated for 6A/250V AC and 8A/125V AC operations, this UL/VDE/CQC-certified protector features snap-action disc technology for instant response to overheating risks, making it ideal for motor winding protection, transformer cooling systems, and small appliance safety compliance.


Product feature:

  • Core Protection Technology
    Dual-Sensing Safety - Combines temperature AND current monitoring (6A-8A range) for complete overload prevention in motors/pumps.
    Military-Grade Precision - ±3℃ thermal calibration accuracy for HVAC/industrial applications.
    Instant Trip Mechanism - Snap-action bimetal disc reacts within 2 seconds to abnormal heat buildup.
  • Global Compliance & Durability
    250V AC/24V DC Rating - Universal voltage compatibility for global markets
    10,000+ Cycle Endurance - Tested for repetitive motor start-ups and compressor overload scenarios.
    Anti-Corrosion Terminals - Nickel-plated contacts resist oxidation in humid climates.
  • Space-Saving Versatility
    15mm Micro Design - Fits tight spaces in power tools, LED drivers, and IoT devices

Electrical Characteristics:


35℃~160C
Temperature Range(Customizable temperature, please contact us.)
±3°℃, ±5℃
Temperature Tolerance
8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications


Dimension size

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff


Product detail

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff


Application

5A 250V KSD9700 Thermostat Bimetal Thermal Overload Switch Motor Protector Cutoff
