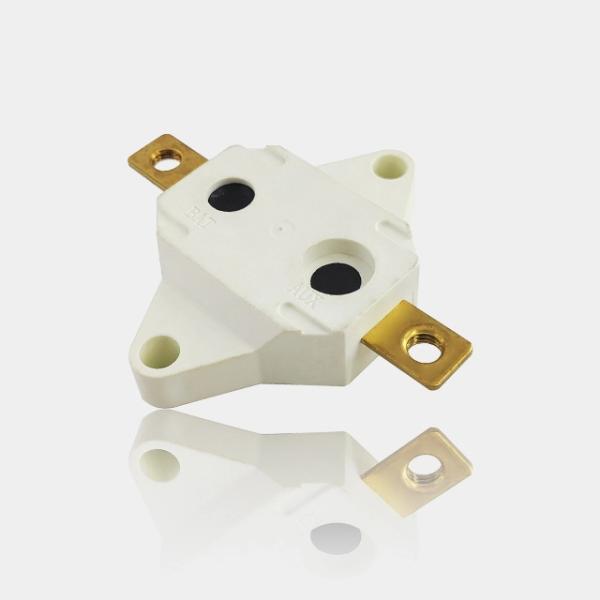

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
Specifications
Brand Name :
HCET
Model Number :
37
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
1000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
500 pcs per carton
Product name :
37 Series Miniature Circuit Breaker Protector
Voltage :
2,100A @ 14VDC (Type l) 1, 400A @30VDC (Type l)
Current :
50-120A
Typical (auto) Reset Time :
5-90 seconds at 25℃
Operating Temperature Range :
-40°C/-40°℉ to 85°C/185°F
Application :
Utility trucks and Recreational vehicles
Description

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I


Economical alternative to Bolt Down Type I auto reset circuit breakers

Battery Chargers, Inverters, secondary or branch circuits in Utility trucks and Recreational vehicles.


Product feature:

* 30 VDC maximum for 50 - 120 Amp
* Compact Type I Auto Rest High Amp circuit breaker
* Assembled in the USA
* Economical alternative to bolt down

Type I auto reset fuses.

Electrical Characteristics:


Standard Amp Ratings

50,60,70, 80, 90, 100, 110, and 120 Amps

Dielectric Strength 1,500VAC Minimum
Interrupt Capacity(50- 120A) 2,100A @ 14VDC (Type l)
1,400A @ 30VDC (Type l)
Operating Temperature Range -40°C/-40°℉ to 85°C/185°F
Typical (auto) Reset Time 5-90 seconds at 25℃

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I


Dimension size

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I

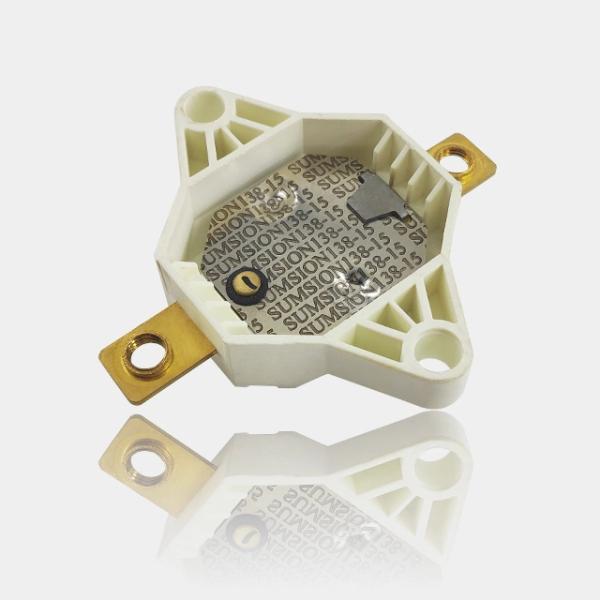

Product detail

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I


Application

HCET 37 Miniature Circuit Breaker With Surge Protector High Amperage 50 To 120 AMP Type I
