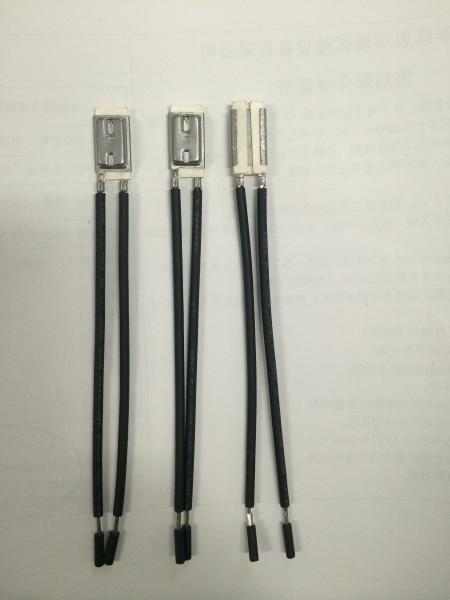

15AM Bimetal AC Thermal Protector thermic fuse 60°C to 170°C in increments of 5°C
15AM Bimetal AC Thermal Protector thermic fuse 60°C to 170°C in increments of 5°C
15AM Bimetal AC Thermal Protector thermic fuse 60°C to 170°C in increments of 5°C
15AM Bimetal AC Thermal Protector thermic fuse 60°C to 170°C in increments of 5°C
Specifications
Brand Name :
DESHENG
Model Number :
15AM-D
Certification :
UL VDE CE
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T L/C D/P
Supply Ability :
5,000,000pcs/month
Delivery Time :
3-10 days on order
Packaging Details :
5000pcs per package
Product Name :
15AM-D Thermal Protector
Contact capacity :
125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Cycles life :
10,000cycles
Certifications :
UL,VDE,CE CQC
Temperature Tolerance :
±5°C
Model :
15AM-D
Description

Self-Hold type 15AM-D Bimetal Thermal Protector , AC Overload Protector Switch

Description:

The thermal overload protector type 15AM-D is an electromechanical safety device, both sensitive to
current and temperature, which provides complete protection to your electrical equipments against
over-heating, overloading and mechanical malfunctions, widely used in motors, ballast, transformers,
automotive motor, universal motor, integrated circuit, etc.

Specifications

Normally close, open on temperature rise

Normally close, open on temperature rise, automatic reset

Contact capacity

Resistive load 13A/250VAC, inductive load 5A/250VAC ψ=0.6-0.7 ,15,000 cycles.

Cycles life

15,000

Open temperature

60°C to 170°C in increments of 5°C

Temperature Tolerance

±5°C

Differential Temperature

depending on open temperature

Seal

High-seal and low-seal gasket material available

Contact resistance

≤100 mW

Insulation resistance

The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.

Applications:

  • Lightings
  • Battery packs and battery charger output
  • Shaded pole motors
  • Fluorescent lighting ballasts
  • Washers and dryers
  • Dishwashers
  • Transformers
  • Automotive accessory motors
  • PC boards
  • ………and more.

Competitive Advantage

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application
