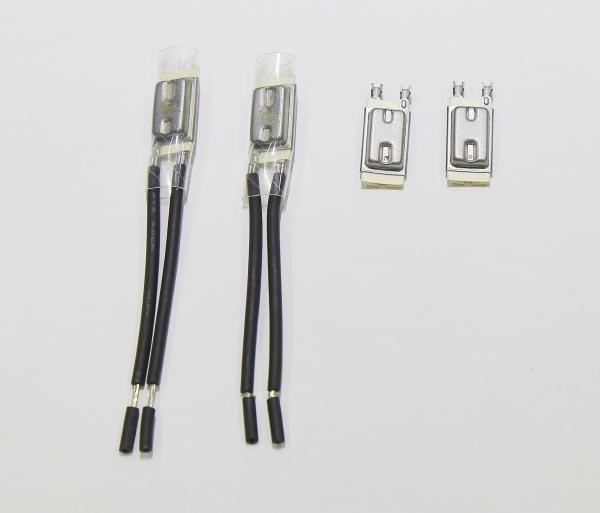

15AM thermal protector Bimetal Circuit Breaker 70-170℃
15AM thermal protector Bimetal Circuit Breaker 70-170℃
Specifications
Brand Name :
DESHENG
Model Number :
15AM-D
Certification :
UL VDE CE, KC,CB
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T L/C D/P
Supply Ability :
5,000,000pcs/month
Delivery Time :
3-10 days on order
Packaging Details :
5000pcs per package
Product Name :
Bimetal Circuit Breaker
Contact capacity :
125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Cycles life :
15,000cycles
Seal :
High-seal
Certifications :
UL,VDE,CE CQC
Temperature Tolerance :
±5°C
Description

15AM thermostat, thermal protector Bimetal Circuit Breaker 70-170℃

15AM-D is a thermally operated snap-action device which delivers the over heat protection with advanced structure, high contact capacity and long cycle life, widely used in motors, electric & thermal appliances, lightings, ballasts, transformers, automotive motors, integrated circuit, etc.

Specifications

Normally close, open on temperature rise, automatic reset

Contact capacity

125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A

Cycles life

15,000cycles

Open temperature

50°C to 160°C in increments of 5°C

Temperature Tolerance

±5°C

Differential Temperature

depending on open temperature

Seal

High-seal and low-seal gasket material available

Contact resistance

≤100 mohm

Insulation resistance

The resistance between the leads and insulation sleeve is >100 Mohm with 500 VDC at 25 °C.

Applications:

  • Lightings
  • Battery packs and battery charger output
  • Shaded pole motors
  • Fluorescent lighting ballasts
  • Washers and dryers
  • Dishwashers
  • Transformers
  • Automotive accessory motors
  • PC boards
  • ………and more.

Competitive Advantages

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

15AM thermal protector Bimetal Circuit Breaker 70-170℃15AM thermal protector Bimetal Circuit Breaker 70-170℃
