Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Adjustable Printing Width Thermal Transfer Label Printer Payment Kiosk With Auto Cutter
Specifications
Brand Name :
MASUNG
Model Number :
EP802-TM
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1 unit
Price :
180-185USD/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 unit per month
Delivery Time :
5-8 days
Packaging Details :
Standard package
Product name :
Self Print and Copy Service,
Resolution :
8dots/mm, 203 dpi (8 dots/mm)
Interface :
RS-232C+USB/RS-232C+Parallel
Warranty :
1 Year
Function :
Payment kiosk
Printing speed :
250mm/second
Description

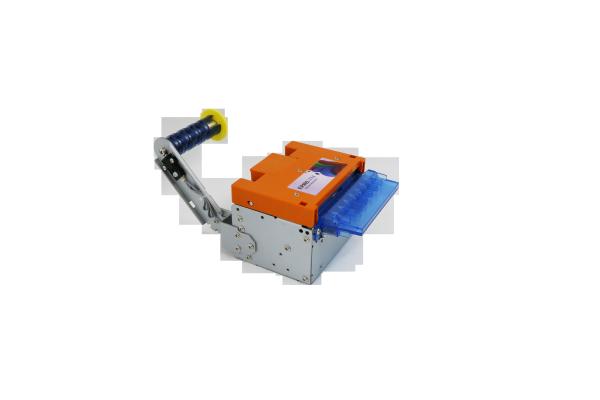

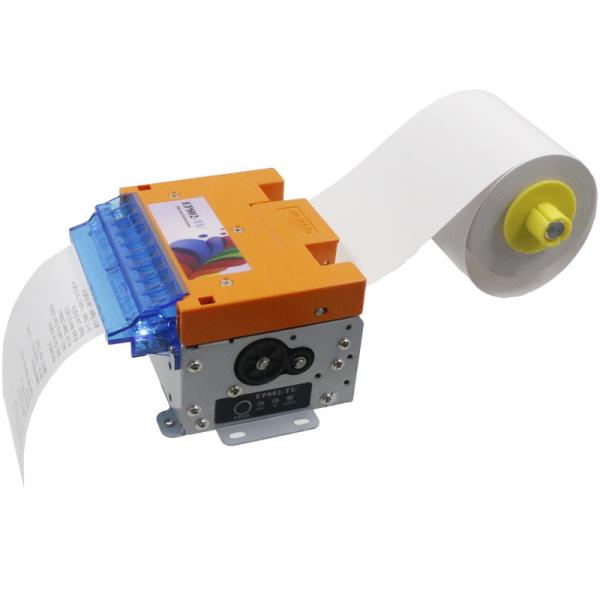

Adjustable Printing Width 3 inch Thermal Kiosk Label Printer with Auto Cutter Barcode Thermal Printer

Control board EP802_3
Thermal printer head Brand name: ROHM
Auto cutter Brand name: OYANE


Printing		 Printing method Thermal dot line
Dots 640dots
Speed 250mm/s (max)
Printing width 80mm (max)
Paper width 80/82.5 mm
Paper thickness 0.06~0.2 mm
Paper loading Easy loading ( horizontal 180°)
Cutting method Full/partial
Print head life Over 100KM
Printing format inverse,underline,italic,bold
Cutter life 60μm paper 1,000,000 cuts
200μm paper 500,000 cuts
Baud rate 9600,19200,38400,115200
Font ASCII 9*17,12*24
Chinese 24*24dots
Detection TPH temperature Temperature sensor
Mechanism open detection Micro switch
“anti-drag ticket detection Mechanical sensor
Paper blocked detection
Paper near end detection Photo-interrupter
Black mark detection
Paper cutting detection
Paper presence detection
Conditions Power supply DC24±10% V
Load current 1.5A continuous
61mA Standby
3.2 A Peak
Interfaces RS232,USB
Paper Paper type Thermal paper roll
Recommended paper type KANZAN KF50
KP460
MITSUBISHIPG5075
TL4000
Environment operating temperature -10~60℃(no condensation)
operating humidity 20%~80%RH(40℃,85%RH)
Storage temperature -20~70℃(no condensation)
Storage humidity 10%~90%RH(50℃,90%RH)
Dimension Dimension L*W*H=308*119.3*73.2mm
Weight Approx 1.3kg (without paper roll )

Application:
Queue management system; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor,coupon machine and more
