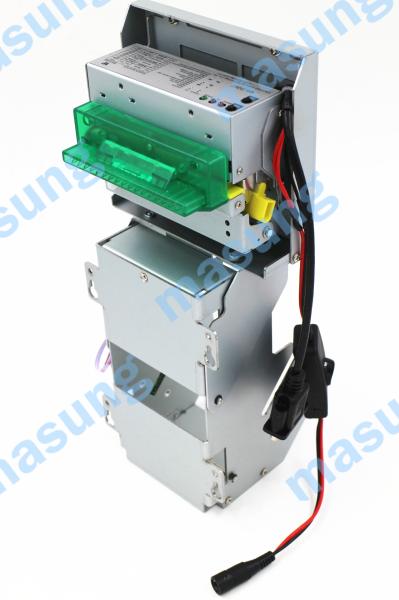

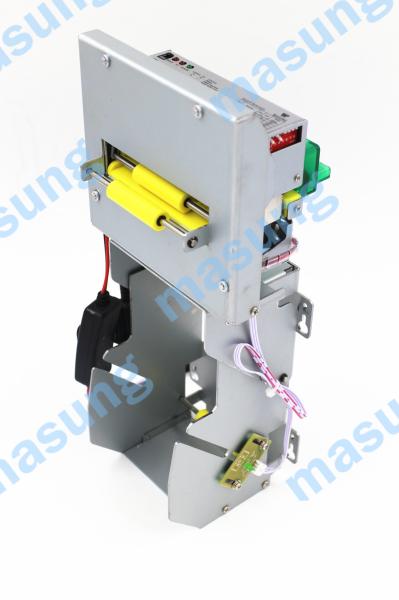

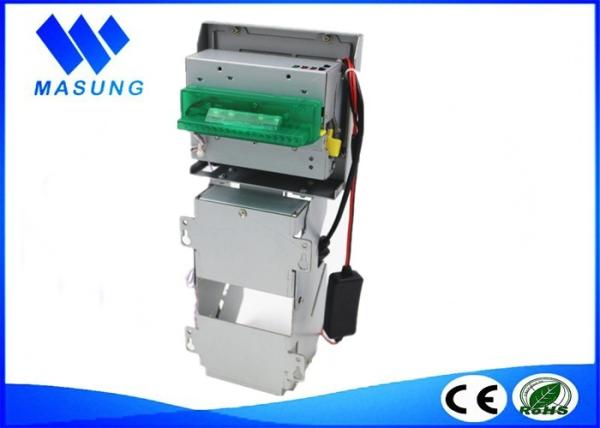

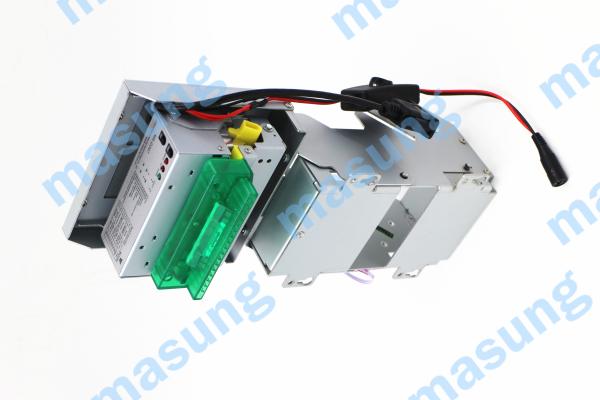

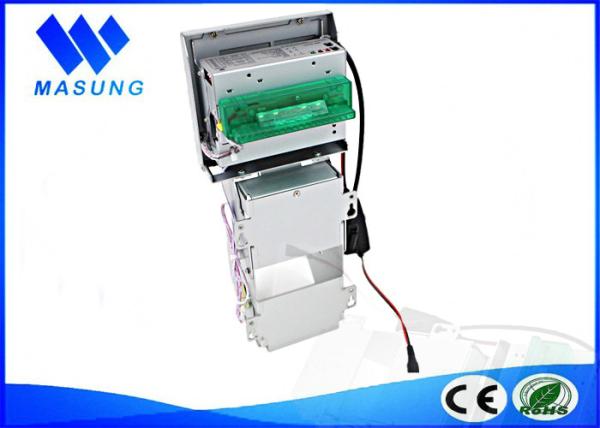

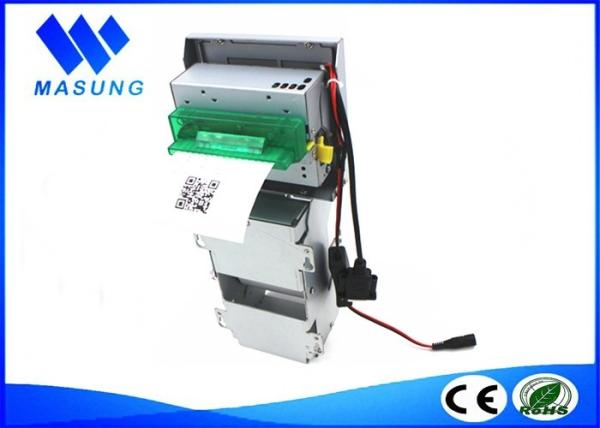

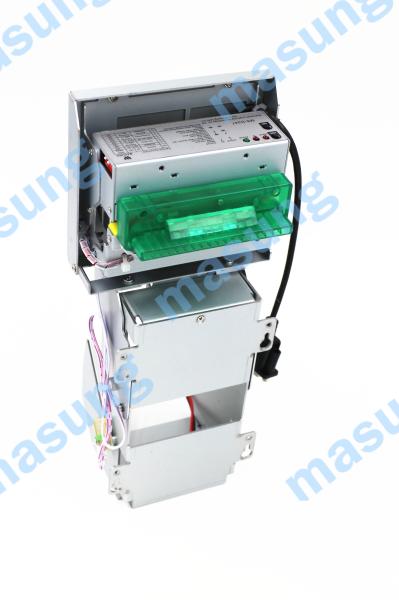

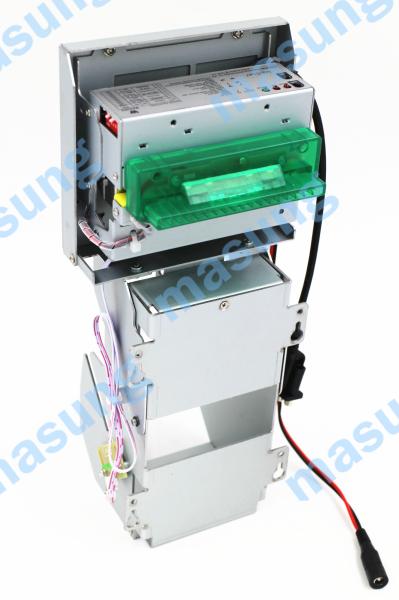

Bluetooth 3 Inch Thermal Printer portable Vertical Roll Installation

Specifications

Brand Name :

MASUNG

Model Number :

MS-D347-V(a)

Certification :

CE; ROSH

Place of Origin :

China

MOQ :

Payment Terms :

T/T/Western union

Supply Ability :

2,000 units/monthly

Delivery Time :

5~8 days

Packaging Details :

carton

Barcode :

supported

Dots/line :

576 dots/line

Dot pitch :

8 dot/mm

Head temperature :

Thermistor

Printing width :

72 mm

Command set :

ESC/POS

Description

Bluetooth 3 Inch Thermal Printer portable Vertical Roll Installation

Quick Detail:

Vertical paper roll loading
Long life printer head
Brand printer mechanism CAPD347
Reliable auto cutter
Easy paper loading
Ultra high speed max200 mm/s
Dragging ticket prevention support
Thermal dot line printing
Paper jam prevention support
Windows/Android/Linux system support

Description:

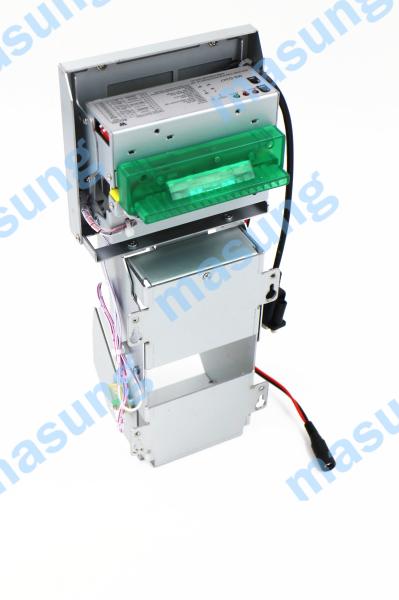

MS-D347-V is equipped with vertical paper holding unit. this design saves more sapce in kiosks. it is widely used for healthcare kiosk

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line printing
Dot pitch			8 dot/mm
Dots/line			576 dots/line
Paper width			80 mm
Paper thickness			54~78 um
Printing width			72 mm
Printing speed			170 mm/s
Paper feed direction			180° horizontal
Sensors	Paper press		Mechanical switch
	shaft Head temperature		hermistor
	Paper end		Photo interrupter
Font size			ASCII:917;1224; Chinese: 24*24
Paper loading			Easy loading
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Weight			Approx 2.18 kg
Dimension (LWH)			119.4596.1380.60mm
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage humidity	10~90% RH
		Storage temperature	-25℃~70℃

Controlling board:
power supply	DC 24V/2.5A
Interface	RS-232 /USB/Parallel
Command set	ESC/POS
Firmware location	512KB Flash memory
Barcode	supported
Buffer	32 KB
Driver	Parallel/USB driver
SRAM	64KB (extra)
System	WindowsXP/Win7(32bits or 64 bits)/ Win8/Android/Linux OS
Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper guide mouth
	Paper holding unit
	Interface connector
	Cable
	Power supply unit

Application:

VTM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer; attendance terminals, healthcare kiosk and more

Competitive Advantage:

compatible with ESC/POS command set
Multiple drivers
Support different systems
ROHS certificated product
Small order accepted
Product performance
Unique design patent
Brand-name printer parts
Customization offer
Prompt delivery
