80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
80mm Thermal Kiosk Receipt Printer Multi Functional Application Dot Matrix Printer
Specifications
Brand Name :
MASUNG
Model Number :
MS-T890
Certification :
CE;ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
interview
Payment Terms :
T/T
Supply Ability :
2000 set per month
Packaging Details :
carton and foam materials
mechanism :
MS-T890
Printing method :
Thermal dot line printing
Resolution :
203dpi
Total dots per line :
576 dots
Printing speed :
150 mm/s(max)
Printing width :
72 mm
Working voltage :
24±10% V
Average current :
2A
Transient current :
6.0A(max)
Paper width :
79.5±0.5 mm
Description

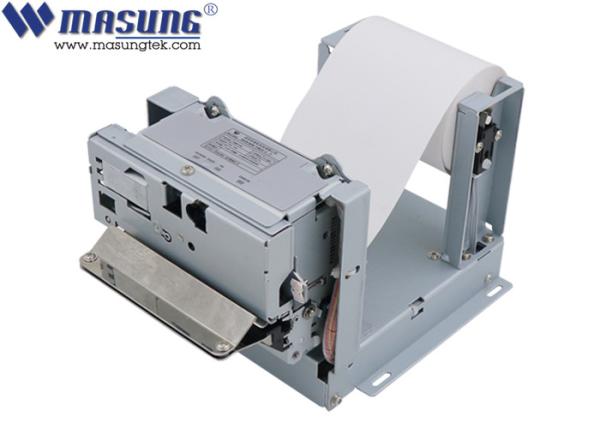

80mm Thermal Kiosk Printer Multi-Functional Application Dot Matrix Printer

MS-T890 is a thermal dot line printer

Features:

 Print barcode and QR code: EAN8,EAN13,CODE39,CODE128 and QR code.
 Optional communication interface: Serial, USB
 Driver support: WindowsXP/Windows7/Windows8/Windows10/Ubuntu/Android4.0 and above.
 Application fields: Self-service terminal, ATM, self-service receipts, and so on.

Specification:

Model MS-T890
Control board MS-G530

printing

 Printing method Thermal dot line printing
Resolution 203dpi
Total dots per line 576 dots
Printing speed 150 mm/s(max)
Printing width 72 mm
Detection Thermal head temperature Thermal sensors
Platen up Mechanical switch
Out of Paper detection Mechanical photoelectric sensor
Power Working voltage 24±10% V
Average current 2A
Transient current 6.0A(max)
Paper Paper width 79.5±0.5 mm
Paper thickness 60～120μm
Paper cut Full/Partial
Paper feed method Auto loading
Paper roll outer diameter 150mm(max)
Environment Operation temperature -10～50°C (no condensation)
Operation humidity 20～80%RH (40℃/85%RH)
Storage temperature -20～60°C (no condensation)
Storage humidity 10～90%RH (40℃/90%RH)
Service life Activation pulse resistance 100,000000
Abrasion resistance 100KM
Cutter service life 1,000 000 times
Dimension W136.1mm*D220.6mm*H134.4mm (without paper roll)
Mass 1.5kg (without paper roll)
Communication interface Serial/USB
Character set ESC/POS

Application:

Payment kiosks; ATM; Parking System; Ticket vendor, Coupon machine and more...

Attention:

Before plug in or plug out any interfaces and sockets, please make sure the printer power switch is off.
