Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Specifications
Brand Name :
MASUNG
Model Number :
W80
Certification :
CE/ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
180-185USD/piece
Payment Terms :
T/T
Supply Ability :
2,500 units/monthly
Packaging Details :
carton and foam materials
Printing method :
Dot line thermal printing
Paper width :
82.5/80/60 mm
Cutting method :
Full/partial
Paper thickness :
0.06~0.2 mm
Speed :
250mm/s
Print head life :
Over 100KM
operating temperature :
-10~60℃(no condensation)
Interfaces :
USB /RS232
Description

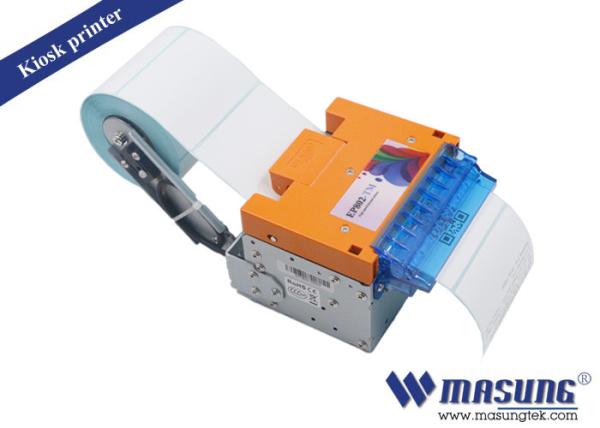

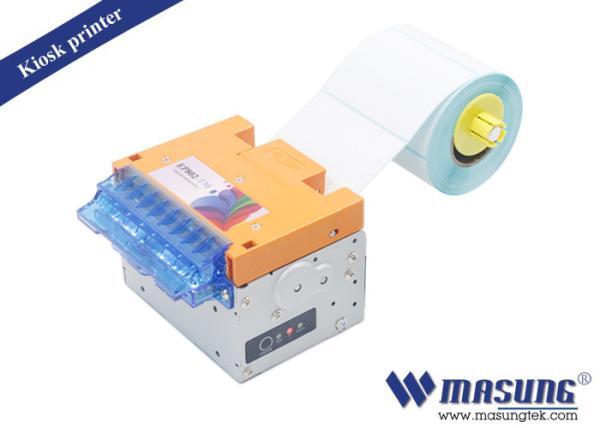

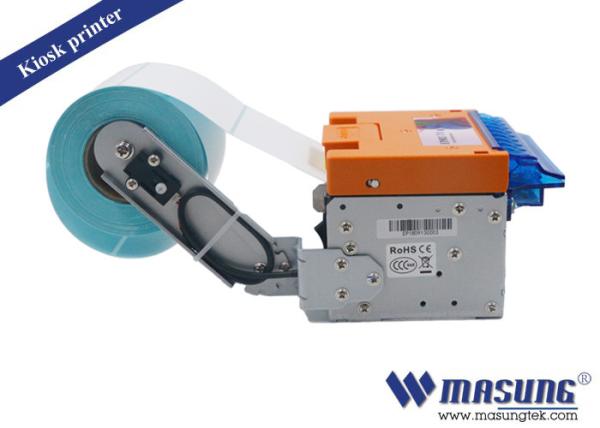

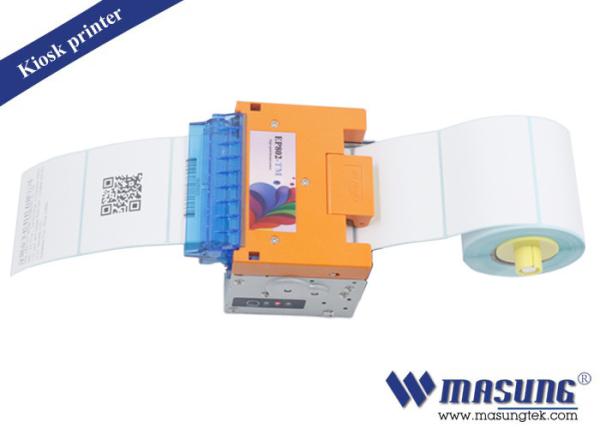

Multiple LEDs detection design 80 mm kiosk thermal printer for sports betting

High speed heavy duty kiosk thermal printer
Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting
Features of kiosk thermal printer
Sturdy adjustable paper roll bracket (horizontal & vertical mounting)
Wide range paper thickness: from 0.06 ~ 0.2 mm
Brand name thermal head & auto cutter
Ultra Highly printing speed Max 250 mm/s
Label & receopt printing
Support super large paper roll up to 200 mm diameter .

The EP802-tm print module uses ROHM hot head, which is fast, low, reliable, good to print, and can cut a lot of paper. It is compact and easy to install and maintain.
Multiple LEDs detection design greatly make it easy useing for customers .
Specification of kiosk thermal printer

Control boardEP802_3
Thermal printer headBrand name: ROHM
Auto cutterBrand name: OYANE



Printing

Printing methodThermal dot line
Dots640dots
Speed250mm/s (max)
Printing width80mm (max)
Paper width80/82.5 mm
Paper thickness0.06~0.2 mm
Paper loadingEasy loading ( horizontal 180°)
Cutting methodFull/partial
Print head lifeOver 100KM
Printing formatinverse,underline,italic,bold
Baud rate9600,19200,38400,115200
FontASCII9*17,12*24
Chinese24*24dots
DetectionTPH temperatureTemperature sensor
Mechanism open detectionMicro switch
“anti-drag ticket detectionMechanical sensor
Paper blocked detection
Paper near end detectionPhoto-interrupter
Black mark detection
Paper cutting detection
Paper presence detection
ConditionsPower supplyDC24±10% V
Load current

1.5A continuous
61mA Standby
3.2 A Peak

InterfacesRS232,USB
PaperPaper typeThermal paper roll
Recommended paper type

KANZAN KF50
KP460
MITSUBISHIPG5075
TL4000

Environmentoperating temperature-10~60℃(no condensation)
operating humidity20%~80%RH(40℃,85%RH)
Storage temperature-20~70℃(no condensation)
Storage humidity10%~90%RH(50℃,90%RH)
DimensionPaper holder 45° upward ( 150mm paper roll)L*W*H=219.5*119.30*87.3mm
Paper holder horizontal (150 mm paper roll)L*W*H=294.5*119.30*87.5mm
Paper roll vertical (150 mm paper roll)L*W*H=154.2*119.30*258.6mm
WeightApprox 1.45kg (without paper roll )




Multiple LEDs Detection Kiosk Thermal Printer 250mm/s Speed For Sports Betting

Application of kiosk thermal printer
Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer,bus ticket system,attendance kiosks and more .
